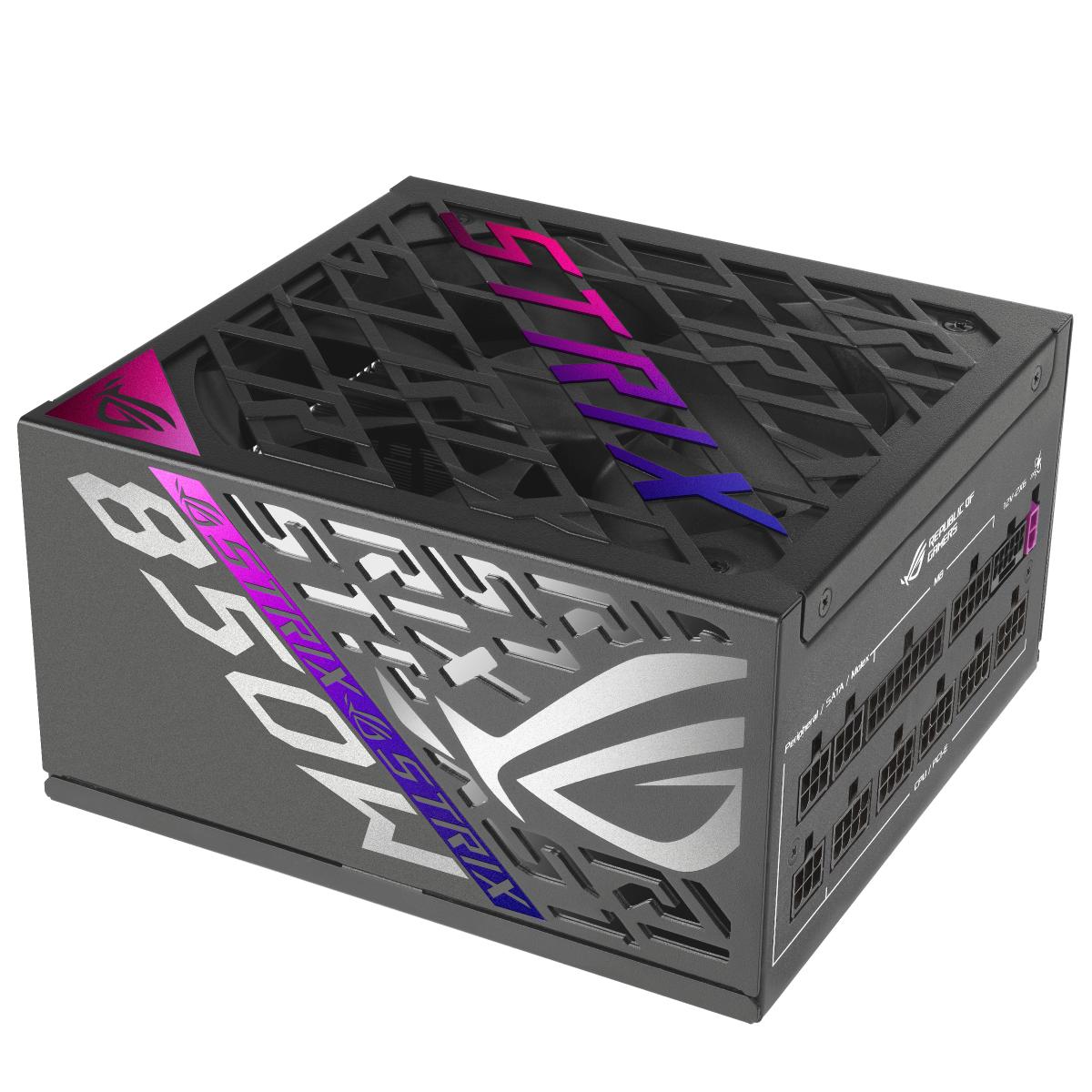

ASUS ROG -STRIX-850P-GAMING power supply unit 850 W 20+4 pin ATX ATX Black

£162.28

ASUS ROG -STRIX-850P-GAMING, 850 W, 100 - 240 V, Active, 130 W, 850 W, 130 W

out of stock

SKU: 90YE00W2-B0NA00

ASUS ROG -STRIX-850P-GAMING. Total power: 850 W, AC input voltage: 100 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 400,120 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Semi-passive, Number of fans: 1 fan(s). Cables included: CPU, PCIe, SATA, Peripheral (Molex)

Weight	2.80kg
Specifications	Power Total power: 850 W AC input voltage: 100 - 240 V Power Factor Correction (PFC) type: Active Combined power (+3.3V): 130 W Combined power (+12V): 850 W Combined power (+5V): 130 W Combined power (-12V): 3.6 W Combined power (+5Vsb): 15 W Max output current (+3.3V): 25 A Max output current (+12V): 70.8 A Max output current (+5V): 25 A Max output current (-12V): 0.3 A Max output current (+5Vsb): 3 A Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage Ports & interfaces Motherboard power connector: 20+4 pin ATX Motherboard power cable length: 61 cm Number of SATA power connectors: 6 SATA power cable length: 400,120 mm Peripheral (Molex) power connectors (4-pin): 3 Peripheral (Molex) power cable length: 400,150 mm PCI Express power connectors (6+2 pin): 3 PCI Express power connectors (16-pin): 1 PCI Express power cable length: 75 cm CPU power connector (4+4 pin): Yes CPU power cable length: 100 cm PCI Express connector: Yes Cabling type: Fully-Modular Performance 80 PLUS certification: 80 PLUS Platinum Purpose: PC Power supply unit (PSU) form factor: ATX ATX version: 3.1 Silent mode: Yes Mean time between failures (MTBF): 120000 h Design Product colour: Black Cooling type: Semi-passive Number of fans: 1 fan(s) Fan location: Top Packaging content Cables included: CPU, PCIe, SATA, Peripheral (Molex) Certificates Compliance certificates: RoHS Weight & dimensions Width: 160 mm Depth: 150 mm Height: 86 mm Weight: 1.78 kg Packaging data Package width: 320 mm Package depth: 200 mm Package height: 108 mm Package weight: 2.8 kg Package type: Box

Weight

2.80kg

Specifications

Power
Total power: 850 W
AC input voltage: 100 - 240 V
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 130 W
Combined power (+12V): 850 W
Combined power (+5V): 130 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 25 A
Max output current (+12V): 70.8 A
Max output current (+5V): 25 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 61 cm
Number of SATA power connectors: 6
SATA power cable length: 400,120 mm
Peripheral (Molex) power connectors (4-pin): 3
Peripheral (Molex) power cable length: 400,150 mm
PCI Express power connectors (6+2 pin): 3
PCI Express power connectors (16-pin): 1
PCI Express power cable length: 75 cm
CPU power connector (4+4 pin): Yes
CPU power cable length: 100 cm
PCI Express connector: Yes
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Platinum
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Silent mode: Yes
Mean time between failures (MTBF): 120000 h
Design
Product colour: Black
Cooling type: Semi-passive
Number of fans: 1 fan(s)
Fan location: Top
Packaging content
Cables included: CPU, PCIe, SATA, Peripheral (Molex)
Certificates
Compliance certificates: RoHS
Weight & dimensions
Width: 160 mm
Depth: 150 mm
Height: 86 mm
Weight: 1.78 kg
Packaging data
Package width: 320 mm
Package depth: 200 mm
Package height: 108 mm
Package weight: 2.8 kg
Package type: Box
