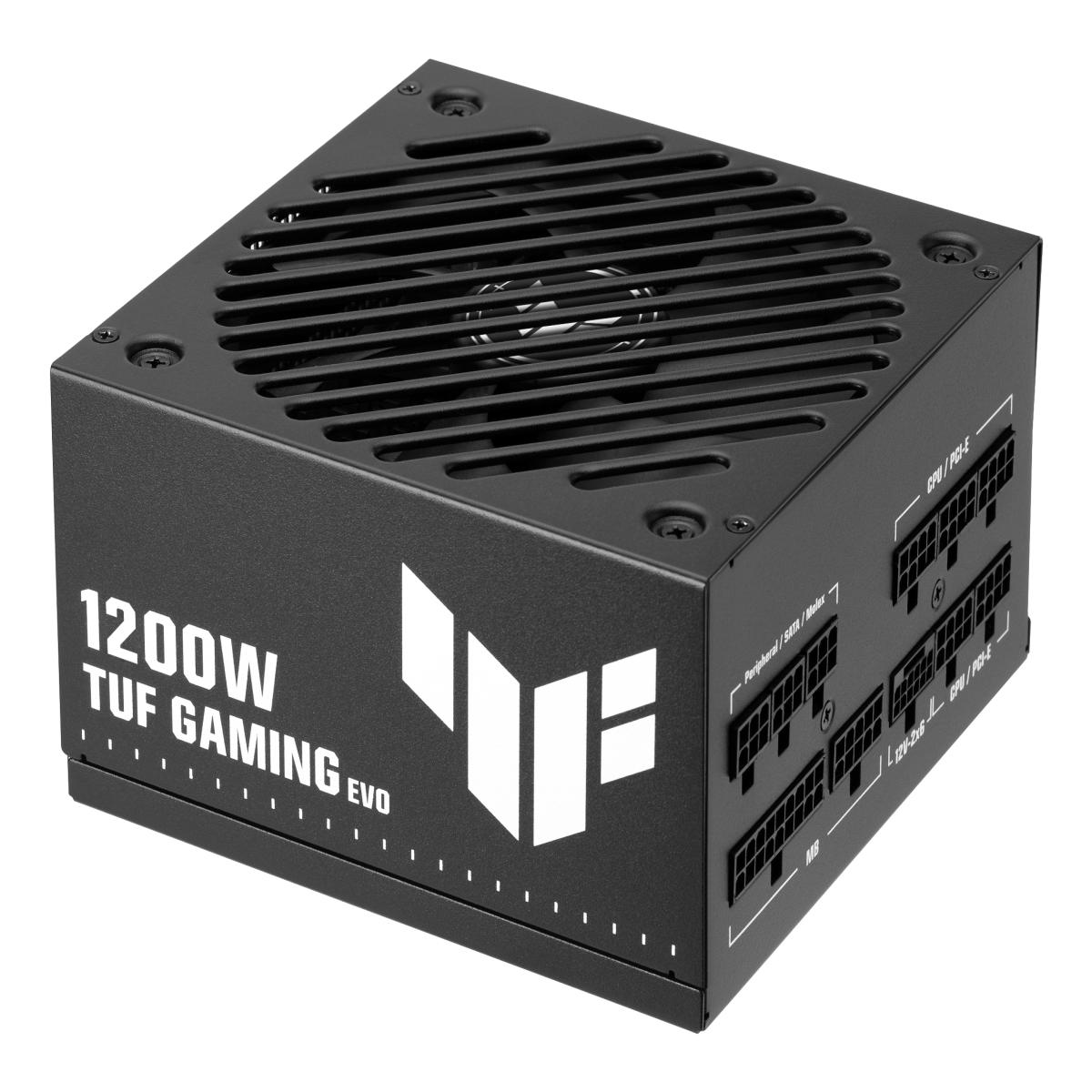

ASUS TUF-GAMING-1200G-EVO power supply unit 1200 W 20+4 pin ATX ATX Black

£177.45

ASUS TUF-GAMING-1200G-EVO, 1200 W, 100 - 240 V, Active, 125 W, 1200 W, 125 W

out of stock

SKU: 90YE00SD-B0NA00

Built For The Long HaulThe ASUS TUF Gaming 1200W Gold EVO packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that can reliably fuel your rig for years to come.

E&OE

1200 W 100 - 240 V
Motherboard power connector: 20+4 pin ATX
PC ATX 80 PLUS Gold
Active
Black

Weight	3.32kg
Specifications	Power Total power: 1200 W AC input voltage: 100 - 240 V Power Factor Correction (PFC) type: Active Combined power (+3.3V): 125 W Combined power (+12V): 1200 W Combined power (+5V): 125 W Combined power (-12V): 3.6 W Combined power (+5Vsb): 15 W Max output current (+3.3V): 25 A Max output current (+12V): 100 A Max output current (+5V): 25 A Max output current (-12V): 0.3 A Max output current (+5Vsb): 3 A Power protection features: Over power, Over voltage, Under voltage, Short circuit, Over current Ports & interfaces Motherboard power connector: 20+4 pin ATX Motherboard power cable length: 61 cm Number of SATA power connectors: 6 SATA power cable length: 120,400 mm Peripheral (Molex) power connectors (4-pin): 3 Peripheral (Molex) power cable length: 120,400 mm PCI Express power connectors (6+2 pin): 3 PCI Express power connectors (16-pin): 1 PCI Express power cable length: 50 cm CPU power connector (4+4 pin): Yes CPU power cable length: 75 cm Cabling type: Fully-Modular Performance 80 PLUS certification: 80 PLUS Gold Purpose: PC Power supply unit (PSU) form factor: ATX ATX version: 3.1 Mean time between failures (MTBF): 120000 h Design Product colour: Black Cooling type: Active Number of fans: 1 fan(s) On/off switch: Yes Certificates Compliance certificates: RoHS Weight & dimensions Width: 150 mm Depth: 150 mm Height: 86 mm Weight: 1.87 kg Packaging data Package width: 282 mm Package depth: 182 mm Package height: 127 mm Package weight: 3.32 kg Package type: Box

Weight

3.32kg

Specifications

Power
Total power: 1200 W
AC input voltage: 100 - 240 V
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 125 W
Combined power (+12V): 1200 W
Combined power (+5V): 125 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 25 A
Max output current (+12V): 100 A
Max output current (+5V): 25 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Power protection features: Over power, Over voltage, Under voltage, Short circuit, Over current
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 61 cm
Number of SATA power connectors: 6
SATA power cable length: 120,400 mm
Peripheral (Molex) power connectors (4-pin): 3
Peripheral (Molex) power cable length: 120,400 mm
PCI Express power connectors (6+2 pin): 3
PCI Express power connectors (16-pin): 1
PCI Express power cable length: 50 cm
CPU power connector (4+4 pin): Yes
CPU power cable length: 75 cm
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Mean time between failures (MTBF): 120000 h
Design
Product colour: Black
Cooling type: Active
Number of fans: 1 fan(s)
On/off switch: Yes
Certificates
Compliance certificates: RoHS
Weight & dimensions
Width: 150 mm
Depth: 150 mm
Height: 86 mm
Weight: 1.87 kg
Packaging data
Package width: 282 mm
Package depth: 182 mm
Package height: 127 mm
Package weight: 3.32 kg
Package type: Box
