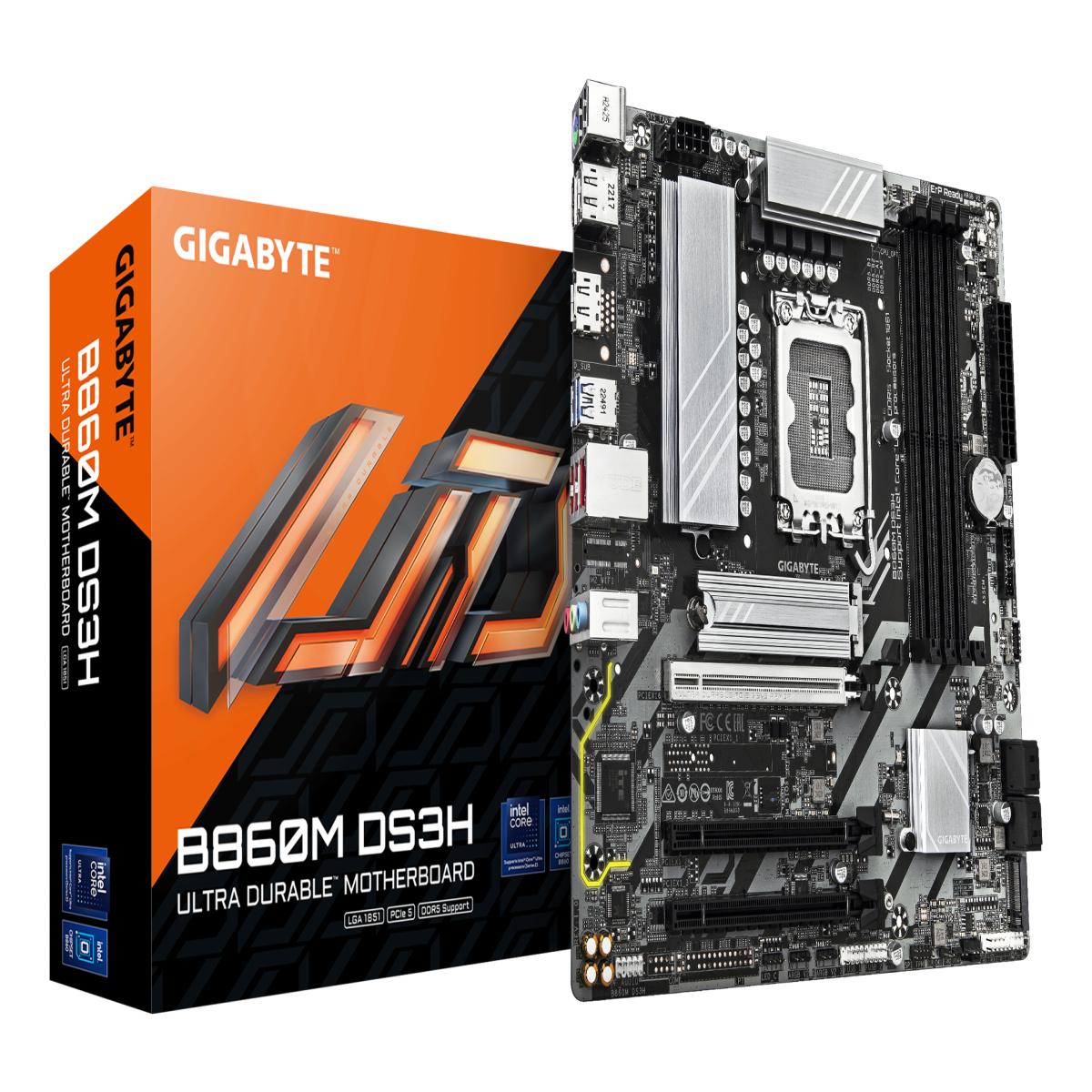

GIGABYTE B860M DS3H Motherboard - Intel Core Ultra Series CPUs, 5+1+2+1 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2
£130.43
out of stock
SKU: B860M DS3H
GIGABYTE B860M DS3H Motherboard - Intel Core Ultra Series CPUs, 5+1+2+1 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2, Intel, LGA 1851 (Socket V1), Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2), LGA 1851, DDR5-SDRAM, 256 GBGIGABYTE B860M DS3H Motherboard - Intel Core Ultra Series CPUs, 5+1+2+1 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125
| Weight | 1.09kg |
|---|---|
| Specifications | Processor Processor manufacturer: Intel Processor socket: LGA 1851 (Socket V1) Compatible processor series: Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2) Supported processor sockets: LGA 1851 Memory Supported memory types: DDR5-SDRAM Number of memory slots: 4 Memory slots type: DIMM Memory channels: Dual-channel ECC сompatibility: ECC & Non-ECC Supported memory clock speeds: 5600,6400,9066 MHz Supported memory clock speed (max): 9066 MHz Maximum internal memory: 256 GB Unbuffered memory: Yes Maximum internal memory per slot: 64 GB Storage controllers Supported storage drive types: HDD & SSD Supported storage drive interfaces: M.2, SATA III Number of HDDs supported: 4 Number of storage drives supported: 6 RAID support: Yes RAID levels: 0, 1, 5, 10 Graphics Parallel processing technology support: Not supported Maximum resolution: 4096 x 2160 pixels HDCP: Yes DirectX version: 12.0 Internal I/O USB 2.0 connectors: 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2 Number of SATA III connectors: 4 Front panel audio connector: Yes Front panel connector: Yes ATX Power connector (24-pin): Yes CPU fan connector: Yes Number of CPU fan connectors: 2 Number of chassis fan connectors: 2 EPS power connector (8-pin): Yes Number of EPS power connectors (8-pin): 1 TPM connector: Yes Number of water pump connectors: 2 RGB LED pin header: Yes Number of RGB LED pin headers: 4 Rear panel I/O ports USB 2.0 ports quantity: 3 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1 Ethernet LAN (RJ-45) ports: 1 PS/2 ports quantity: 1 HDMI ports quantity: 1 HDMI version: 2.1 DisplayPorts quantity: 2 DisplayPort version: 2.1 Headphone outputs: 1 Line-in: Yes Microphone in: Yes Network Ethernet LAN: Yes Ethernet interface type: 2.5 Gigabit Ethernet LAN controller: Realtek RTL8125 Wi-Fi: No Features Motherboard chipset: Intel B860 Audio chip: Realtek ALC897 Audio output channels: 7.1 channels Product colour: Dark brown PC health monitoring: Fan, Temperature, Voltage, Water cooling Component for: PC Motherboard form factor: micro ATX Motherboard chipset family: Intel Cooling type: Passive Power source type: ATX Windows operating systems supported: Windows 10 x64, Windows 11 x64 Expansion slots PCI Express x16 (Gen 4.x) slots: 5 PCI Express x16 (Gen 5.x) slots: 1 Number of M.2 (M) slots: 2 1st M.2 largest key size: 2280 1st M.2 highest PCI Express generation: 5.0 2nd M.2 largest key size: 2280 2nd M.2 highest PCI Express generation: 4.0 BIOS BIOS type: UEFI AMI BIOS memory size: 256 Mbit ACPI version: 5.0 Clear CMOS jumper: Yes Desktop Management Interface (DMI) version: 2.7 System Management BIOS (SMBIOS) version: 2.7 Logistics data Country of origin: China Products per shipping (inner) case: 1 pc(s) Battery Battery weight: 3 g Lithium weight per battery: 0.07 g Number of battery cells: 1 Battery technology: Lithium-Manganese Dioxide (LiMnO2) Battery type: CR2032 Packaging data Package width: 265 mm Package depth: 265 mm Package height: 54 mm Package weight: 1.09 kg Weight & dimensions Width: 244 mm Depth: 244 mm Height: 35 mm Packaging content Batteries included: Yes Screws included: Yes Bundled software: Norton® Internet Security (OEM version) LAN bandwidth management software Other features Weight: 1 kg Technical details Warranty period: 3 year(s) |
