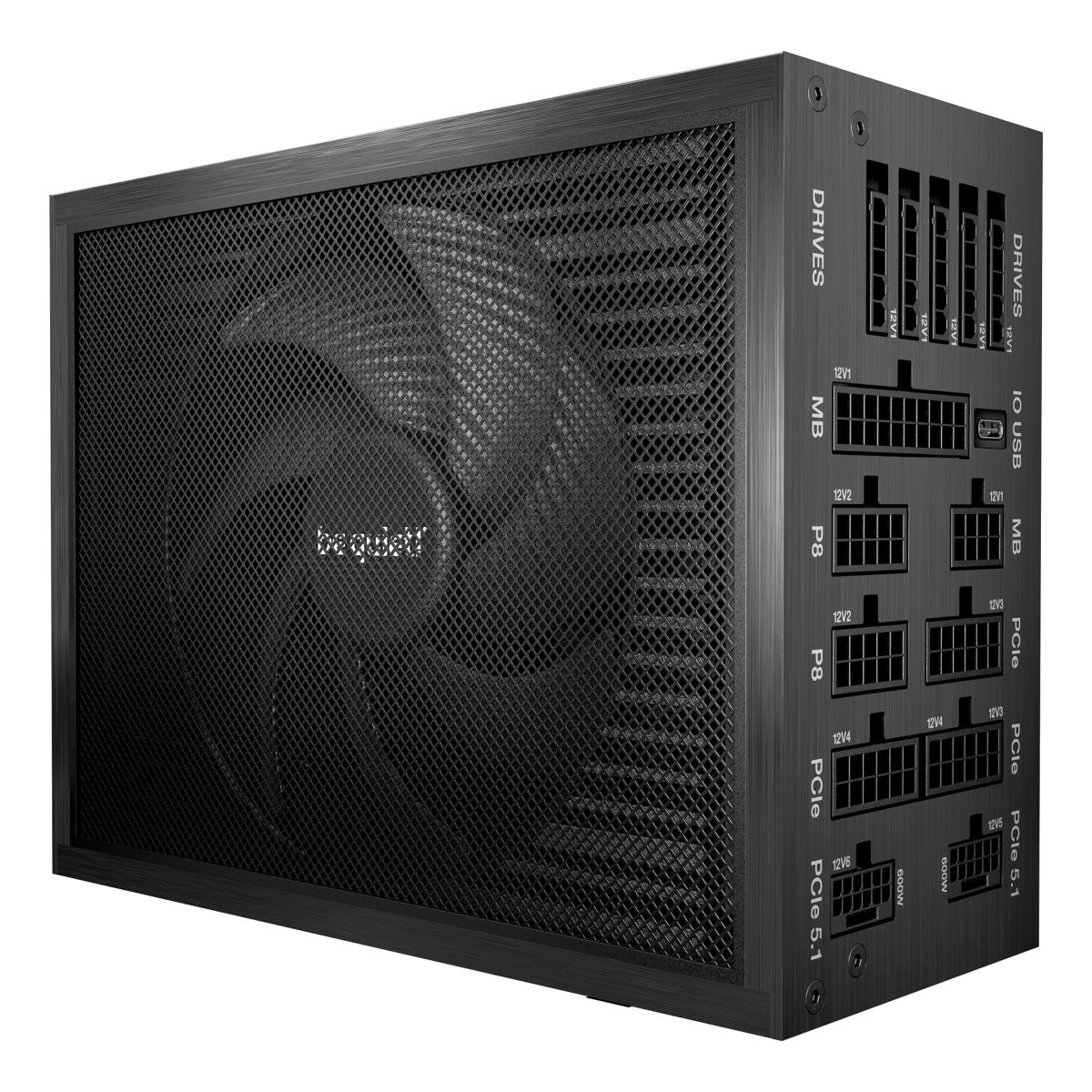

be quiet! Dark Power Pro 14 IO power supply unit
£418.61
be quiet! Dark Power Pro 14 IO, 1600 W, 100 - 240 V, 1700 W, 50/60 Hz, 15 A, 9 A
2 in stock
SKU: BP023EU
CONTROL SILENCE AND PERFORMANCEDark Power Pro 14 IO 1600W features a high-performance heat sink design with an integrated fan that can be configured in the be quiet! IO Center software.
E&OE
- 1600 W 100 - 240 V 50/60 Hz
- Motherboard power connector: 20+4 pin ATX
- PC ATX 80 PLUS Titanium
- Active 13.5 cm 0 - 2600 RPM
- Black
| Weight | 6.68kg |
|---|---|
| Specifications | Power Total power: 1600 W Peak power: 1700 W AC input voltage: 100 - 240 V AC input frequency: 50/60 Hz Maximum input current (@110V): 15 A Maximum input current (@220V): 9 A Power factor: 0.98 Power Factor Correction (PFC) type: Active Number of +12V rail(s): 6 Combined power (+3.3V): 150 W Combined power (+12V): 1600 W Combined power (+5V): 150 W Combined power (-12V): 6 W Combined power (+5Vsb): 17.5 W Max output current (+3.3V): 25 A Max output current (+12V1): 40 A Max output current (+12V2): 40 A Max output current (+12V3): 45 A Max output current (+12V4): 45 A Max output current (+5V): 25 A Max output current (-12V): 0.5 A Max output current (+5Vsb): 3.5 A Hold time: 14.5 ms Efficiency: 93.4% Power protection features: Over current, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage, Over power Ports & interfaces Motherboard power connector: 20+4 pin ATX Motherboard power cable length: 60 cm Number of SATA power connectors: 16 SATA power cable length: 600,750,900,1050 mm Number of SATA power cables: 5 Peripheral (Molex) power connectors (4-pin): 2 Peripheral (Molex) power cable length: 900,1050 mm EPS power connector (8-pin): Yes EPS power connector (4+4 pin): Yes PCI Express power connectors (6+2 pin): 6 PCI Express power connectors (12-pin): 2 PCI Express power cable length: 60 cm CPU power connector (4+4 pin): Yes CPU power cable length: 70 cm ATX power connector (20+4 pin): Yes PCI Express connector: Yes Cabling type: Fully-Modular Performance 80 PLUS certification: 80 PLUS Titanium Cybenetics certification: Titanium Purpose: PC Power supply unit (PSU) form factor: ATX ATX version: 3.1 EPS version: 2.92 Noise level: 29.1 dB Bearing technology: FDB Mean time between failures (MTBF): 100000 h Design Product colour: Black Cooling type: Active Fan diameter: 13.5 cm Number of fans: 1 fan(s) Fan speed: 0 - 2600 RPM Illumination: No On/off switch: Yes On/off fan switch: Yes Operational conditions Operating temperature (T-T): 0 - 40 °C Packaging content Cable tie(s) included: Yes USB cable length: 0.8 m Certificates Compliance certificates: CB, Federal Communications Commission (FCC), RoHS, TÜV mark, UKCA, WEEE, cTUVus, BSMI, CCC, CE, RCM Weight & dimensions Width: 150 mm Depth: 200 mm Height: 86 mm Weight: 2.63 kg Packaging data Manual: Yes Manual languages: Simplified Chinese, German, English, Spanish, French, Italian, Japanese, Polish, Russian, Thai Package width: 253 mm Package depth: 417 mm Package height: 152 mm Package weight: 6.68 kg Logistics data Shipping (inner) case length: 44 cm Shipping (inner) case width: 32.5 cm Shipping (inner) case height: 28.3 cm Shipping (inner) case net weight: 15.2 kg Products per shipping (inner) case: 2 pc(s) Warranty period: 10 year(s) Other features Screws included: Yes Cable ties included: Yes |
