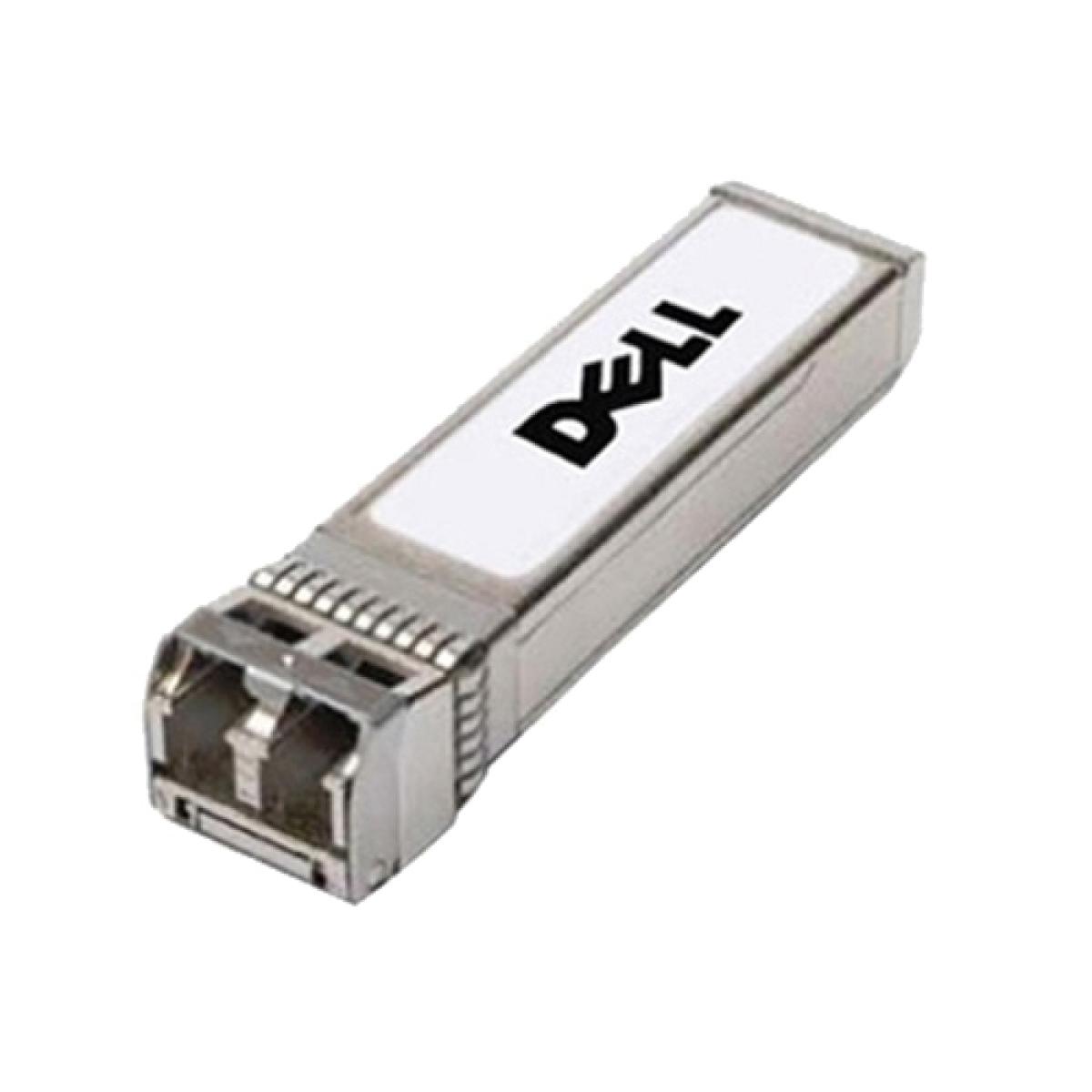

DELL SFP+ 10GBASE-LR network transceiver module Fiber optic 10000 Mbit/s SFP+ 1310 nm
£0
DELL SFP+ 10GBASE-LR, Fiber optic, 10000 Mbit/s, SFP+, LC, 9/125 µm, LR
7 in stock
SKU: 407-10941
The Dell™ SFP+ transceiver delivers fiber connectivity to extend the range of your network. This hot-pluggable transceiver with SFP (Small Form Factor Pluggable) footprint features a duplex LC connector. The Dell networking 10GBase-LRM SFP+ transceiver provides 10GbE connectivity up to 10 km.Additionally, it provides a unique enhanced digital diagnostic monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power, and transceiver supply voltage.
E&OE
- SFP+ Fiber optic 10000 Mbit/s
- Wavelength: 1310 nm
- Hot-Plug support
| Weight | 0.08kg |
|---|---|
| Specifications | Performance SFP transceiver type: Fiber optic Maximum data transfer rate: 10000 Mbit/s Interface type: SFP+ Single-mode fiber (SMF) supported: Yes Fiber optic connector: LC Fiber cable diameters supported (core/cladding): 9/125 µm SFP transceiver standard: LR Maximum transfer distance: 10000 m Wavelength: 1310 nm Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u Cabling technology: 10GBASE-LR Auto MDI/MDI-X: Yes Features Hot-Plug support: Yes Certificates Certification: MSA Operational conditions Operating temperature (T-T): 0 - 70 °C Storage temperature (T-T): -40 - 85 °C Operating relative humidity (H-H): 10 - 80% Storage relative humidity (H-H): 10 - 85% Weight & dimensions Width: 13.4 mm Depth: 56.5 mm Height: 8.5 mm Packaging content Quantity per pack: 1 pc(s) Logistics data Harmonized System (HS) code: 85369010 |
