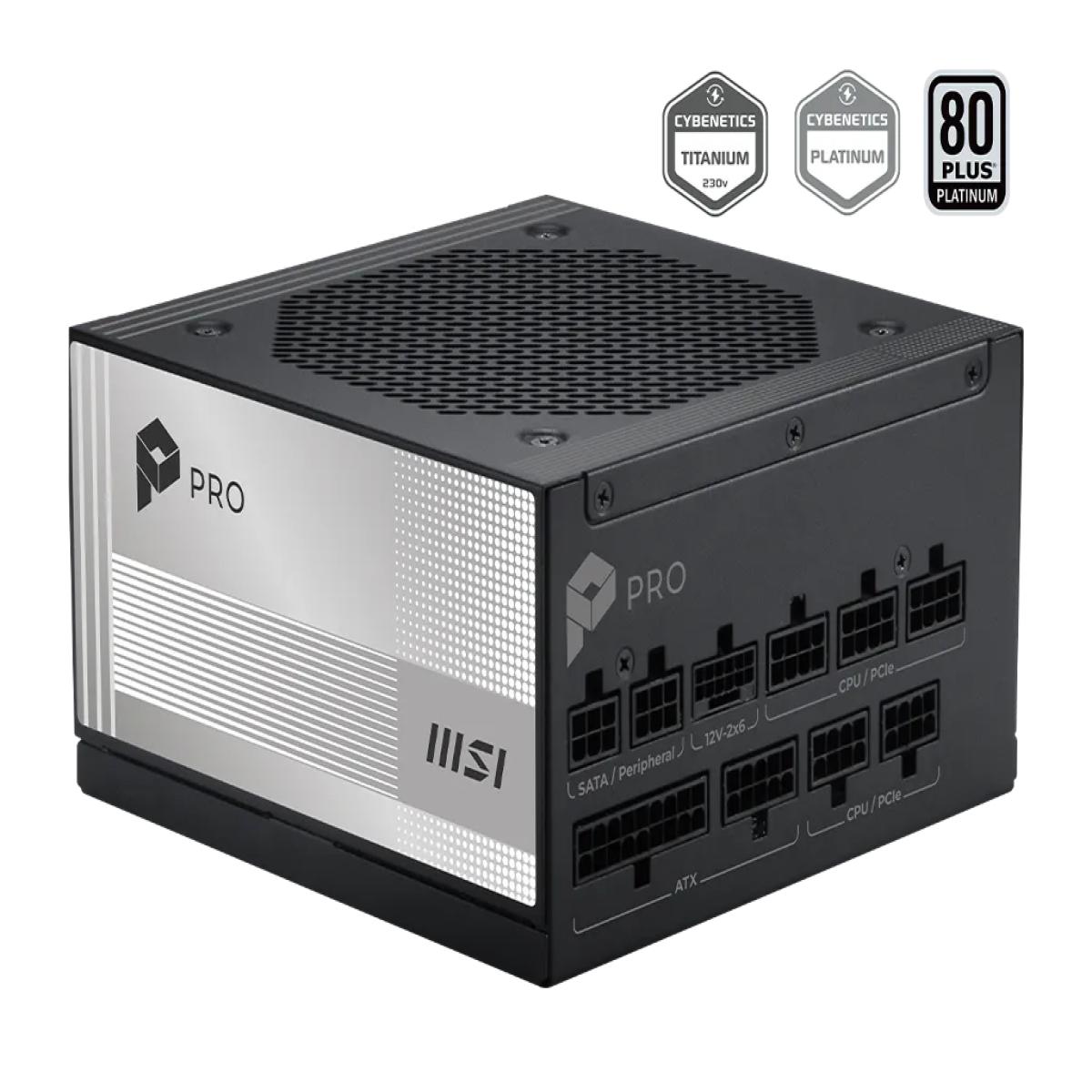

MSI PRO A850PL PCIE5 power supply unit 850 W 20+4 pin ATX ATX Black

MSI PRO A850PL PCIE5 power supply unit 850 W 20+4 pin ATX ATX Black

£111.72

MSI PRO A850PL PCIE5, 850 W, 100 - 240 V, 50/60 Hz, Active, 100 W, 849.6 W

out of stock

SKU: PRO A850PL PCIE5

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.Ultimate Proof PSUIt has an output port that is compliant with Intel PSDG (Power Supply Design Guide) ATX 3.1,the power supply can hold up to 2x total power excursion and 3x GPU power excursion.Reliable Connector DesignThe power supply features the 12V-2x6 (H++) connector, design with an optimized structure that complies with the PCIe CEM 5.1standard. The ensures enhanced reliability and safety. It is capable of delivering up to 450W of power, making it suitable for even the most demanding high-end graphics cards.GPU compatibilityVersatile ways of connection according to the power connector design of different graphics cards.Platinum Efficiency CertificationThe efficiency of your power supply significantly impacts overall power consumption. The Platinum certification stands out as a reliable benchmark for energy efficiency, ensuring that your power supply delivers lower energy consumption and operates at higher efficiency levels.105°C Main CapacitorAiming for superior product quality and performance stability, this power supply features 105°C main capacitors for long-term use reliability.Built for Maximum SafetyThe power supply's cables, from the internal copper wires to the external high-density braided cover, are fully UL certified, ensuring superior safety and durability.

E&OE

  • 850 W 100 - 240 V 50/60 Hz
  • Motherboard power connector: 20+4 pin ATX
  • PC ATX 80 PLUS Platinum
  • Active 12 cm
  • Black
Weight 18.60kg
Specifications Power
Total power: 850 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 100 W
Combined power (+12V): 849.6 W
Combined power (+5V): 100 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 20 A
Max output current (+12V): 70.8 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 60 cm
Number of SATA power connectors: 6
Peripheral (Molex) power connectors (4-pin): 2
EPS power connector (4+4 pin): Yes
PCI Express power connectors (6+2 pin): 3
CPU power connector (4+4 pin): Yes
ATX Power connector (24-pin): No
ATX power connector (20+4 pin): Yes
Floppy disk drive connector: No
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Platinum
Purpose: PC
Power supply unit (PSU) form factor: ATX
Design
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
On/off switch: Yes
Weight & dimensions
Width: 150 mm
Depth: 150 mm
Height: 86 mm
