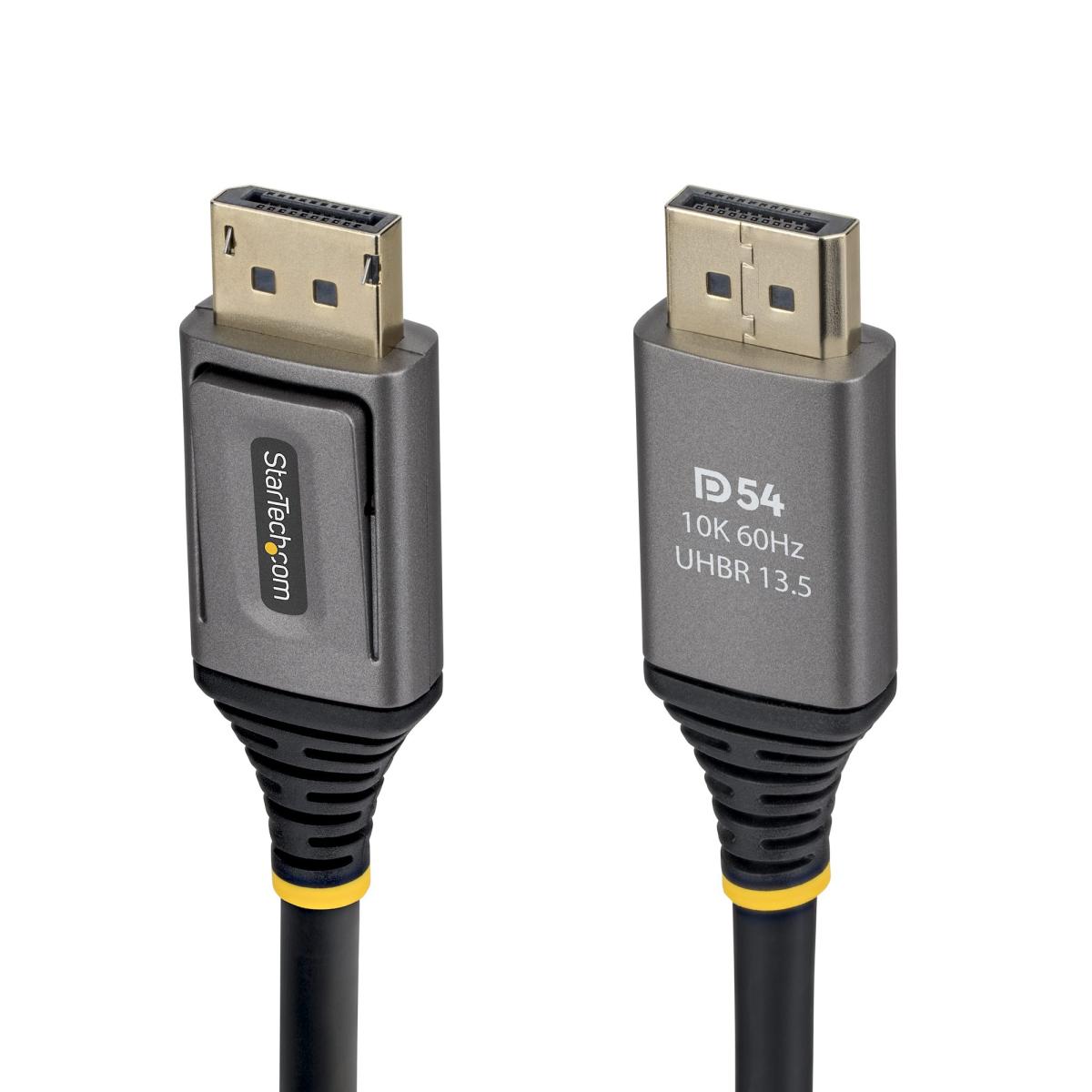

StarTech.com 1m DisplayPort 2.1 Cable, VESA Certified DP54 DisplayPort Cable, Uncompressed 8K 60Hz, 10K 60Hz/8K 144Hz/4K 240Hz w/DSC 1.2a, DP 2.1 Monitor Cord
£22.42
out of stock
SKU: DP21V-1M-DP54-CABLE
Unlock UHBR13.5 Bandwidth for Next-Gen Resolutions, High Refresh Rates, and Uncompressed 8K 60Hz videoConnect an 8K/4K UHD DisplayPort monitor to a host computer or MST hub, using this VESA-Certified DisplayPort 2.1 DP54 Cable. This cable facilitates high bandwidth video and multi-channel audio and is ideal for 8K workstations, high performance GPUs, and dedicated AV applications including media production and content creation.Seamless CompatibilityFor seamless operation between DisplayPort-enabled devices, the DisplayPort 2.1 Cable is VESA Certified for guaranteed DP 2.1 and backward compatibility (DP 2.0/1.4/1.2). It supports G-Sync and FreeSync, enhancing Variable Refresh Rate (VRR) performance for optimal picture quality between high-capacity GPUs and supported displays.Durable DesignThis DisplayPort cable features a flexible TPE outer jacket that is tested to withstand 600 bending cycles at -/+60 degrees, and routes easily around corners and desk edges. Robust strain reliefs enable convenient positioning of the cable, and latching nickel-plated DP connectors attach securely to prevent accidental disconnection. The connectors are rated to operate beyond 10,000 insertions.Supported DisplayPort 2.1 Features:This DP54 DisplayPort cable supports the following DP 2.1 features:• UHBR13.5 supports high refresh rates including uncompressed 5K 120Hz and 4K 144Hz• DSC-compressed video up to 16K 30Hz / 10K 60Hz / 4K 240Hz 4:4:4 8-bit• Uncompressed video resolutions up to 10K 30Hz / 8K 60Hz / 4K 144Hz 4:4:4 8-bit• High-Bandwidth Digital Content Protection (HDCP) 2.3 for a secure connection between source and display• High Dynamic Range 10 (HDR10) for higher contrast ratio and vibrant picture quality• Display Stream Compression (DSC) 1.2a for maximum resolution output• Multi-Stream Transport (MST) for daisy-chaining multiple monitors• 32 Uncompressed Digital Audio Channels• Backward compatible with previous DP versionsThis DP 2.1 Cable is constructed with braided aluminum mylar shielding to minimize EMI for clear, consistent audio/video output and long-term reliable performance.
E&OE
- 1 m
- DisplayPort Straight Male
- DisplayPort Straight Male
- DisplayPort version: 2.1
- 15360 x 8640 pixels 240 Hz 54 Gbit/s
- HDCP Display Stream Compression (DSC)
- Black
| Weight | 0.14kg |
|---|---|
| Specifications | Features Connector 1 form factor: Straight Connector 2 form factor: Straight Connector contacts plating: Nickel DisplayPort version: 2.1 Maximum resolution: 15360 x 8640 pixels Supported graphics resolutions: 10240 x 4320, 7680 x 4320, 5120 x 2880, 4096 x 2160, 15360 x 8640 Maximum refresh rate: 240 Hz HDCP: Yes HDCP version: 2.3 Display Stream Compression (DSC): Yes Display Stream Compression (DSC) version: 1.2a Cable length: 1 m Connector 1: DisplayPort Connector 2: DisplayPort Connector 1 gender: Male Connector 2 gender: Male Product colour: Black Cable shielding: Aluminum mylar foil Jacket material: Thermoplastic elastomer (TPE) Connector housing material: Acrylonitrile butadiene styrene (ABS) High Dynamic Range (HDR) supported: Yes Data transfer rate: 54 Gbit/s Colour sampling: 4:4:4 Cable type: Round cable Operational conditions Operating temperature (T-T): 0 - 45 °C Storage temperature (T-T): -20 - 70 °C Operating relative humidity (H-H): 10 - 85% Certificates Compliance certificates: RoHS Weight & dimensions Cable diameter: 7 mm Weight: 78 g Packaging data Package width: 142 mm Package depth: 170 mm Package height: 30 mm Package weight: 141 g Packaging content Quantity per pack: 1 pc(s) Logistics data Master (outer) case width: 450 mm Master (outer) case length: 320 mm Master (outer) case height: 200 mm Products per master (outer) case: 30 pc(s) |
