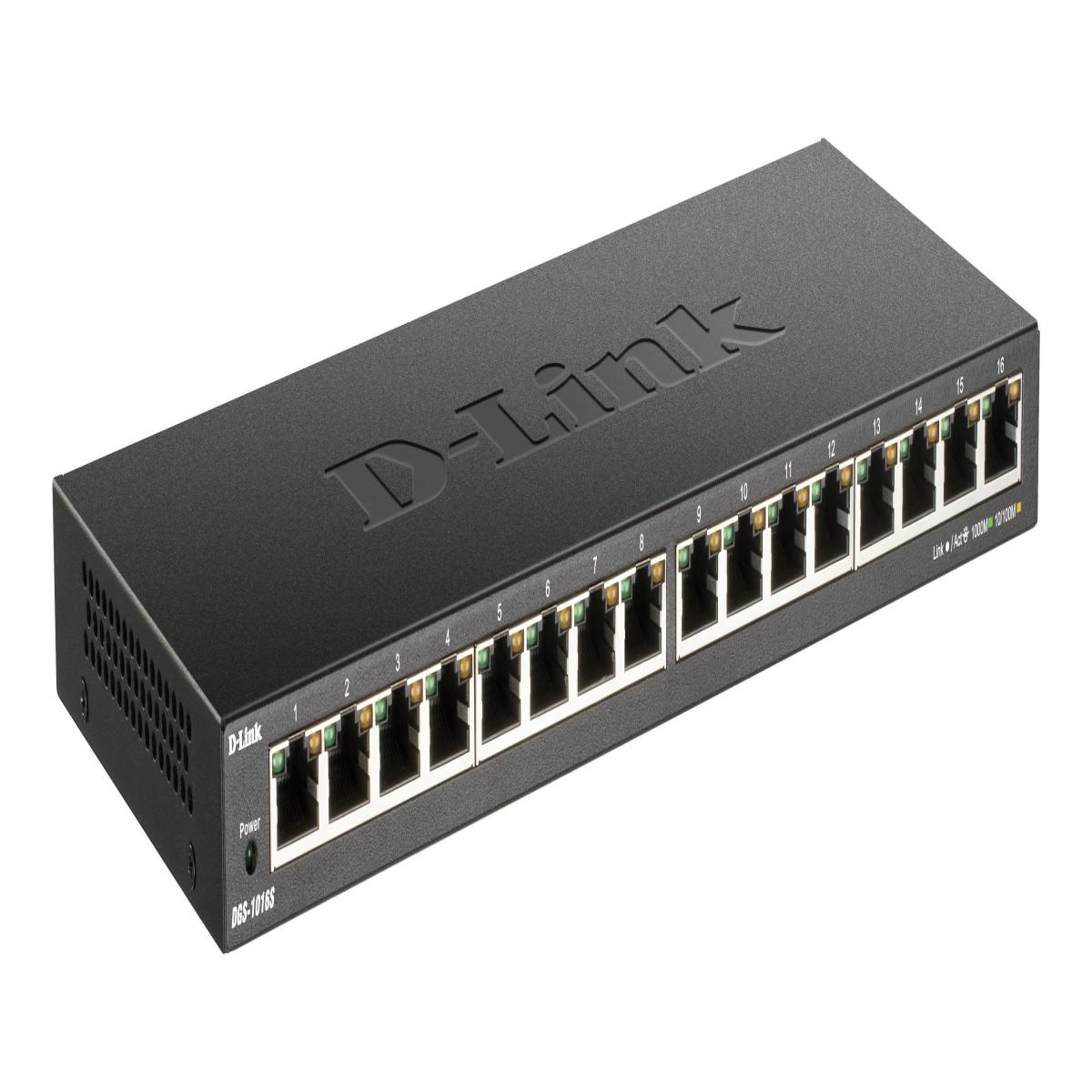

D-Link 16-Port Unmanaged Gigabit Ethernet Switch

£78.46

D-Link 16-Port Unmanaged Gigabit Ethernet Switch, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex

25 in stock

SKU: DGS-1016S/B

D-Link 16-Port Unmanaged Gigabit Ethernet Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3az, IEEE 802.3x. DC input voltage: 12 V

Weight	0.77kg
Specifications	Management features Switch type: Unmanaged Quality of Service (QoS) support: Yes Ports & interfaces Basic switching RJ-45 Ethernet ports quantity: 16 Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000) Network Networking standards: IEEE 802.1p, IEEE 802.3az, IEEE 802.3x 10G support: No Copper ethernet cabling technology: 1000BASE-T Full duplex: Yes Half duplex: Yes Flow control support: Yes Auto MDI/MDI-X: Yes Auto-negotiation: Yes Cable length detection: Yes Data transmission Switching capacity: 32 Gbit/s MAC address table: 8000 entries Store-and-forward: Yes Number of queues: 8 Jumbo frames support: Yes Jumbo frames: 9216 Packet forwarding rate (1 Gbps): 1488000 pps Packet forwarding rate (100 Mbps): 148800 pps Packet forwarding rate (10 Mbps): 14880 pps Packet buffer memory: 0.512 MB Design Product colour: Black LED indicators: Activity, Link, Power, Speed Safety: LVD Performance Plug and Play: Yes Fanless: Yes Mean time between failures (MTBF): 564658 h Power DC input voltage: 12 V Input current: 1 A Power consumption (max): 8.89 W Power over Ethernet (PoE) Power over Ethernet (PoE): No Operational conditions Operating temperature (T-T): 0 - 40 °C Storage temperature (T-T): -40 - 70 °C Operating relative humidity (H-H): 10 - 90% Storage relative humidity (H-H): 5 - 95% Heat dissipation: 30.32 BTU/h Weight & dimensions Width: 280 mm Depth: 110 mm Height: 25 mm Weight: 770 g Certificates Certification: CE, FCC, ICES 003, RCM Logistics data Harmonized System (HS) code: 85176990

Weight

0.77kg

Specifications

Management features
Switch type: Unmanaged
Quality of Service (QoS) support: Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
Networking standards: IEEE 802.1p, IEEE 802.3az, IEEE 802.3x
10G support: No
Copper ethernet cabling technology: 1000BASE-T
Full duplex: Yes
Half duplex: Yes
Flow control support: Yes
Auto MDI/MDI-X: Yes
Auto-negotiation: Yes
Cable length detection: Yes
Data transmission
Switching capacity: 32 Gbit/s
MAC address table: 8000 entries
Store-and-forward: Yes
Number of queues: 8
Jumbo frames support: Yes
Jumbo frames: 9216
Packet forwarding rate (1 Gbps): 1488000 pps
Packet forwarding rate (100 Mbps): 148800 pps
Packet forwarding rate (10 Mbps): 14880 pps
Packet buffer memory: 0.512 MB
Design
Product colour: Black
LED indicators: Activity, Link, Power, Speed
Safety: LVD
Performance
Plug and Play: Yes
Fanless: Yes
Mean time between failures (MTBF): 564658 h
Power
DC input voltage: 12 V
Input current: 1 A
Power consumption (max): 8.89 W
Power over Ethernet (PoE)
Power over Ethernet (PoE): No
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%
Heat dissipation: 30.32 BTU/h
Weight & dimensions
Width: 280 mm
Depth: 110 mm
Height: 25 mm
Weight: 770 g
Certificates
Certification: CE, FCC, ICES 003, RCM
Logistics data
Harmonized System (HS) code: 85176990
