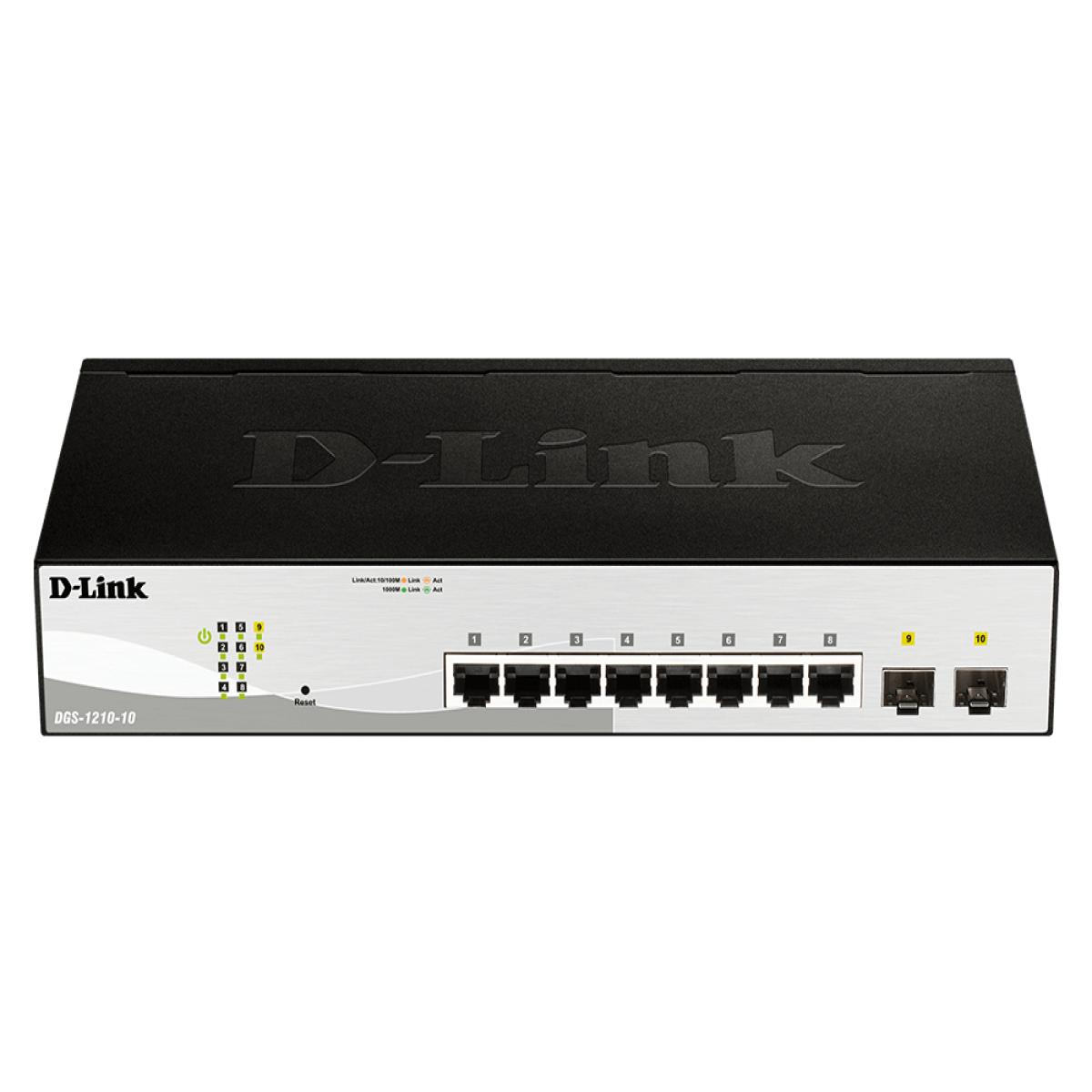

D-Link 10-Port Gigabit Smart Managed Switch with 2 SFP ports

£133.38

D-Link 10-Port Gigabit Smart Managed Switch with 2 SFP ports, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, 1U

10 in stock

SKU: DGS-1210-10

Smart Managed with a PlusWith increased PoE output, advanced Layer 2 management features, and Layer 3 static routing , D-Link’s DGS-1210 Smart+ Managed Gigabit Switches provide a cost-efficient and flexible solution for expanding any business network.Advanced Layer 2 Management with Layer 3 Static RoutingThe DGS-1210 Smart+ family has advanced network management options, accessible via Compact CLI or the Web-based UI, that equip your business with network capabilities such as VLANs, multiple spanning tree protocol (MSTP), link aggregation (LACP), static routing, dual software images, and dual configuration files. With powerful security features like IGMP snooping, access control lists, port security, and the unique D-Link Safeguard Engine that protects your network against malicious denial-of-service attacks from broadcast, multicast and unicast flooding, the DGS-1210 Smart+ family is a versatile solution for access-edge network environments.Fibre UplinksUse fibre uplinks to connect across longer distances, like factory lines and university campuses, using lightweight, secure, and energy-efficient fibre optic cabling that’s immune to interference and which has access to higher throughput to protect the future demands of your business network.PoE and PoE+, with budgets up to 370WThe DGS-1210 Smart+ Series includes a range of high power budget PoE-enabled switches for businesses looking to power larger deployments of VoIP phones, wireless access points or network cameras.This product is compatible with Nuclias ConnectNuclias Connect is our free remote network management software designed with network scalability, privacy and customisation in mind. It can be used either as an on-premises software management platform, or as a cloud solution.Free Network Design and Management SoftwareD-Link’s free Network Assistant (DNA) displays all connected devices and speeds up the first time configuration. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools. Optional upgrade licenses allow you to broaden your network and analysis.Smart Energy-Saving DesignD-Link Green technology enables the DGS-1210 Smart+ series to save power without any sacrifices. The majority of the family utilises a fanless design, otherwise they feature a smart fan that powers on above a certain temperature. All come with advanced silicon technology which saves up to 73% of energy compared to a normal switch.Surveillance ModeSelect Surveillance Mode in the Web UI to take advantage of easy-to-use surveillance features which enable you to manage your surveillance network effortlessly. It automatically detects your security devices and segments them into a dedicated Auto Surveillance VLAN to handle video surveillance traffic securely and efficiently.

E&OE

Managed L2 Web-based management
Quality of Service (QoS) support Configuring Location Settings (CLI)
Basic switching RJ-45 Ethernet ports quantity: 8
10BASE-T, 100BASE-TX, 1000BASE-T
MAC address table: 8000 entries Switching capacity: 20 Gbit/s
Access Control List (ACL)
1U Rack mounting Stackable
AC Power supply included

Weight	0.98kg
Specifications	Management features Switch type: Managed Switch layer: L2 Quality of Service (QoS) support: Yes Web-based management: Yes ARP inspection: Yes Configuring Location Settings (CLI): Yes System event log: Yes MIB support: Y Ports & interfaces Basic switching RJ-45 Ethernet ports quantity: 8 Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000) SFP module slots quantity: 2 Power connector: AC-in jack Network Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T Port mirroring: Yes Full duplex: Yes Flow control support: Yes Link aggregation: Yes Broadcast storm control: Yes Auto MDI/MDI-X: Yes Spanning tree protocol: Yes Head-of-line (HOL) blocking: Yes Auto-negotiation: Yes VLAN support: Yes Number of VLANs: 256 Data transmission Switching capacity: 20 Gbit/s Forwarding rate: 14.88 Mpps MAC address table: 8000 entries Store-and-forward: Yes Jumbo frames support: Yes Jumbo frames: 10000 Packet buffer memory: 4.1 MB Security DHCP features: DHCP client Access Control List (ACL): Yes IGMP snooping: Yes MAC address filtering: Yes Loop protection: Yes Multicast features Multicast support: Yes Design Rack mounting: Yes Stackable: Yes Form factor: 1U Product colour: Black, Grey LED indicators: Yes Performance Memory type: DDR3-SDRAM Internal memory: 128 MB Flash memory: 32 MB Noise level: 0 dB Mean time between failures (MTBF): 1380058 h Power Power source: AC Power supply included: Yes AC input voltage: 100 - 240 V AC input frequency: 50/60 Hz Power consumption (max): 6.33 W Power over Ethernet (PoE) Power over Ethernet (PoE): No Operational conditions Operating temperature (T-T): -5 - 50 °C Storage temperature (T-T): -40 - 70 °C Operating relative humidity (H-H): 10 - 90% Storage relative humidity (H-H): 5 - 90% Heat dissipation: 21.59 BTU/h Weight & dimensions Width: 280 mm Depth: 126 mm Height: 44 mm Weight: 980 g

Weight

0.98kg

Specifications

Management features
Switch type: Managed
Switch layer: L2
Quality of Service (QoS) support: Yes
Web-based management: Yes
ARP inspection: Yes
Configuring Location Settings (CLI): Yes
System event log: Yes
MIB support: Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 2
Power connector: AC-in jack
Network
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring: Yes
Full duplex: Yes
Flow control support: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Auto MDI/MDI-X: Yes
Spanning tree protocol: Yes
Head-of-line (HOL) blocking: Yes
Auto-negotiation: Yes
VLAN support: Yes
Number of VLANs: 256
Data transmission
Switching capacity: 20 Gbit/s
Forwarding rate: 14.88 Mpps
MAC address table: 8000 entries
Store-and-forward: Yes
Jumbo frames support: Yes
Jumbo frames: 10000
Packet buffer memory: 4.1 MB
Security
DHCP features: DHCP client
Access Control List (ACL): Yes
IGMP snooping: Yes
MAC address filtering: Yes
Loop protection: Yes
Multicast features
Multicast support: Yes
Design
Rack mounting: Yes
Stackable: Yes
Form factor: 1U
Product colour: Black, Grey
LED indicators: Yes
Performance
Memory type: DDR3-SDRAM
Internal memory: 128 MB
Flash memory: 32 MB
Noise level: 0 dB
Mean time between failures (MTBF): 1380058 h
Power
Power source: AC
Power supply included: Yes
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 6.33 W
Power over Ethernet (PoE)
Power over Ethernet (PoE): No
Operational conditions
Operating temperature (T-T): -5 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Heat dissipation: 21.59 BTU/h
Weight & dimensions
Width: 280 mm
Depth: 126 mm
Height: 44 mm
Weight: 980 g
