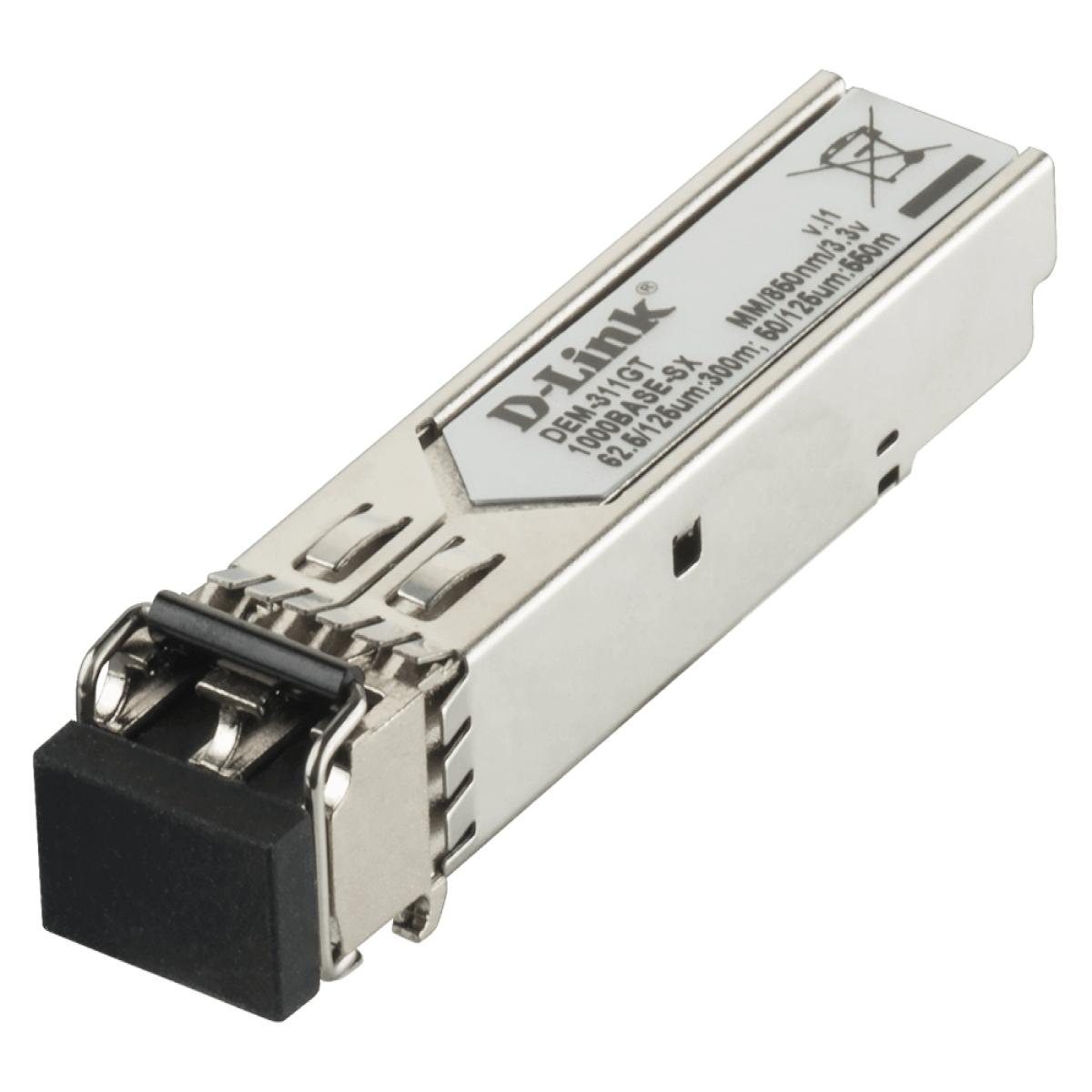

D-Link 1-port Mini-GBIC SFP to 1000BaseSX, 550m for all - 10 Pack
£17.77
1 in stock
SKU: DEM-311GT/10
High-Speed Network Transmission for Business EnvironmentsD-Link’s new line of Small Form-Factor Pluggables (SFPs) transceivers give you an industry-leading combination of performance and affordability. The DEM-311GT is a high-performance 850 nm multi-mode SFP transceiver supporting Gigabit speeds on multi-mode fiber for distances of up to 550 m. The unit features a metal housing to reduce EMI and to increase durability. Hot PluggableAll D-Link transceivers are hot pluggable. You can connect a transceiver while the system is powered on without causing any issues, and easily swap one for another without having to reboot the switch each time. This permits modules to be added or removed without interrupting the network, facilitating maintenance and greatly reducing downtime.Multiple ApplicationsApplications of the DEM-300 Series fiber transceivers include distributed multi-processing, Gigabit switch cascading, high-speed I/O file transfer, bus extension application, and channel extender/data storage. This versatility is invaluable for an expanding network, and helps the infrastructure grow with the business.Small Form Pluggable (SFP) PackageThe Gigabit SFP Transceivers use the Small Form-factor Pluggable (SFP) design. They provide the necessary signal amplification for data to be transmitted to the network cable from the port, and vice versa. The SFP form factor is advantageous because it is smaller than other form factors such as Xenpak, X2, and 10G XFP, ensuring lower costs, lower power disruption, and higher port density.
E&OE
- SFP Fiber optic 1000 Mbit/s
- Wavelength: 850 nm
- Hot-Plug support
- Input voltage: 3.3 V
| Weight | 0.02kg |
|---|---|
| Specifications | Performance SFP transceiver type: Fiber optic Maximum data transfer rate: 1000 Mbit/s Interface type: SFP Multi-mode fiber (MMF) supported: Yes Fiber optic connector: LC Fiber cable diameters supported (core/cladding): 50/125,62.5/125 µm Maximum transfer distance: 550 m Wavelength: 850 nm Tx power (min): -4 dBmW Tx power (max): -17 dBmW Rx power (max): -3 dBmW Link budget: 13 dB Networking standards: IEEE 802.3z Fiber ethernet cabling technology: 1000BASE Features Product colour: Black, Stainless steel Hot-Plug support: Yes Power Input voltage: 3.3 V Maximum current: 0.24 A Certificates Compliance certificates: RoHS Certification: FCC Class B, ICES-003 Class B, CE Class B, VCCI Class B, FDA/CDRH, TUV, cUL Sustainability Sustainability compliance: Yes Operational conditions Minimum operating temperature: 0 °C Maximum operating temperature: 70 °C Operating temperature (T-T): 0 - 70 °C Storage temperature (T-T): -40 - 85 °C Operating relative humidity (H-H): 10 - 90% Storage relative humidity (H-H): 5 - 90% Weight & dimensions Width: 13.4 mm Depth: 56.4 mm Height: 10.3 mm Weight: 15.5 g Packaging content Quantity per pack: 10 pc(s) Other features RX sensitivity: -17 dB |
