Shuttle PSE01 Gigabit LAN with PoE Output for EN01 Edge PCs Internal Ethernet 1000 Mbit/s

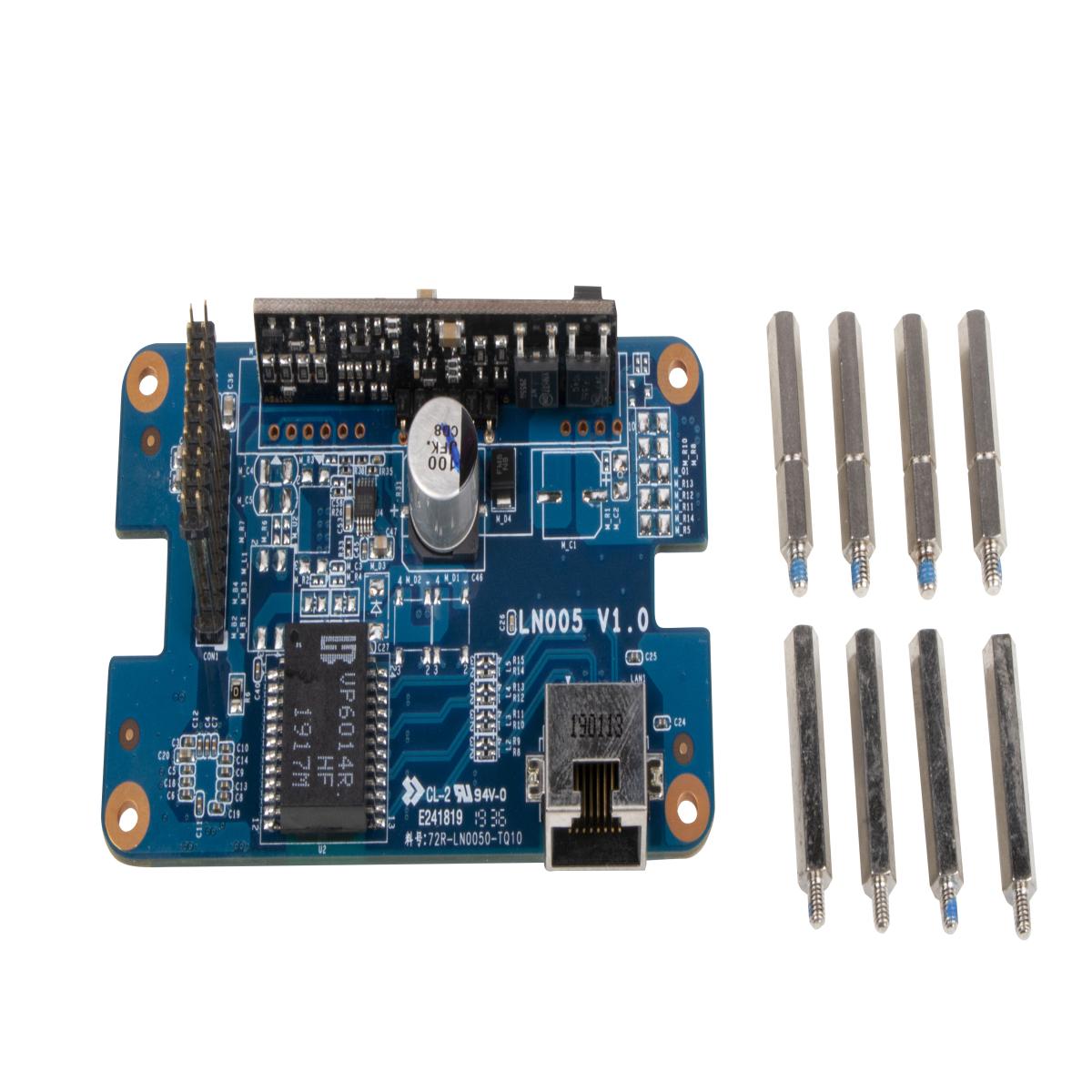

The PSE01 enables the EN01 to supply another network device with power via PoEThe Shuttle accessory PSE01 is a daughterboard for the EN01 series which provides a second Gigabit network port with Power-over-Ethernet (PoE) function. This makes the EN01 act as Power Sourcing Equipment (PSE) that carries both data and operating voltage to a connected network device, such as an IP camera. Contents:- PoE daughterboard with RJ45 network connector- 8× standoff (4 of these have a marking)- Adhesive membrane- Quick guideTechnical data:- LAN controller: Realtek RTL8119I supports 1 Gbit/s- PoE output wattage at the LAN port: 48 Vdc, max. 0.5 A- Supports 802.3AT & 802.3AF PoE standardsRecommended power adapter for EN01:≥ 40 W, if the accessory PSE01 is not used≥ 65 W, if the accessory PSE01 is installedCompatibility:Compatible with the following Shuttle products:Edge EN01J3, EN01J4, EN01E, EN01B

E&OE

• Wired
• Ethernet
• 1000 Mbit/s
• Internal Component for: PC
