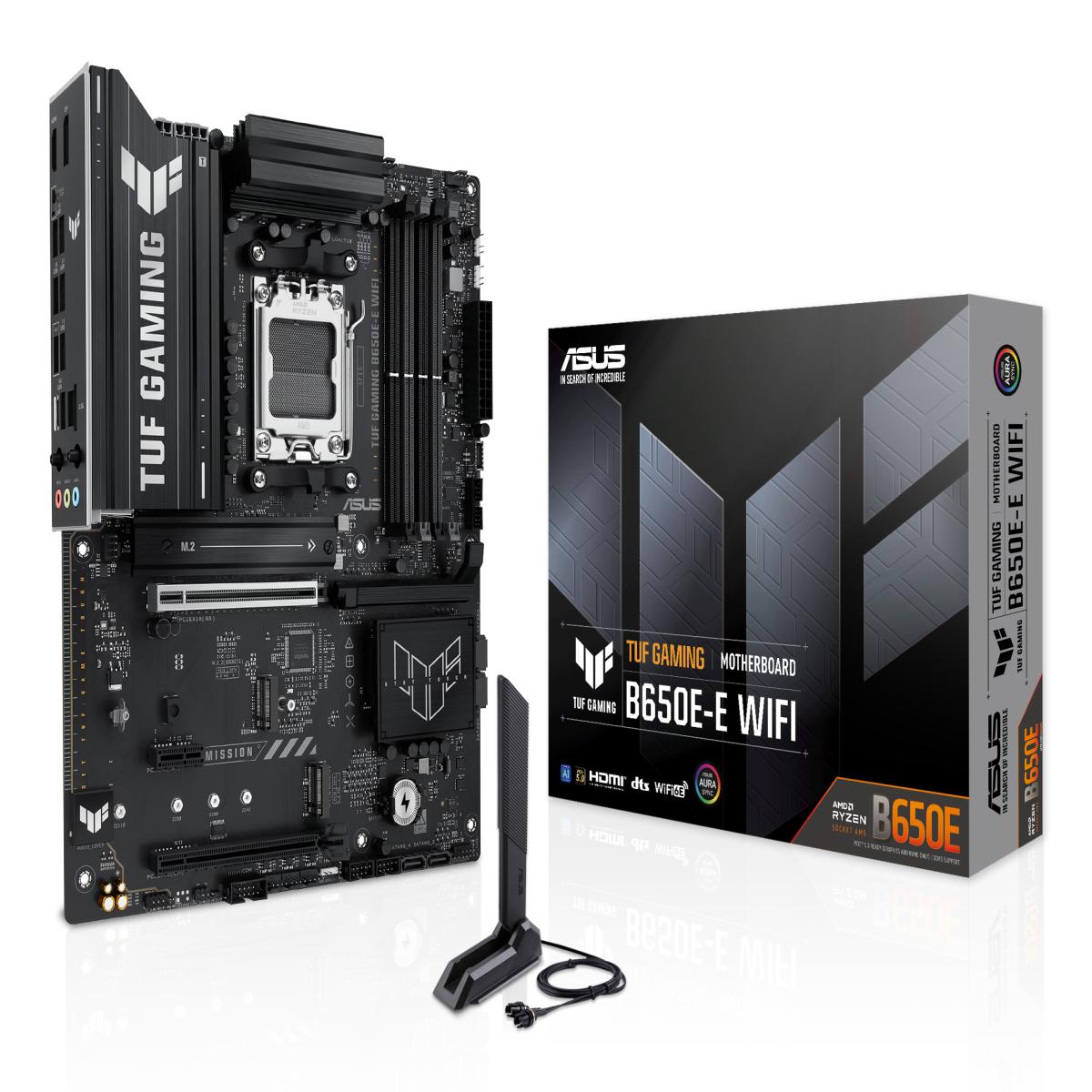

ASUS TUF GAMING B650E-E WIFI AMD B650 Socket AM5 ATX
£139.78
out of stock
SKU: 90MB1LT0-M0EAY0
TUF GAMING B650E-E WIFIASUS TUF GAMING B650E-E WIFI takes all the essential elements of the latest AM5 Socket for AMD Ryzen™ Desktop Processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series. This platform delivers the power and connectivity that advanced AI PC applications demand.
E&OE
- AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- PC ATX AMD B650 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 7
- BIOS type: UEFI AMI 256 Mbit
- 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6E (802.11ax) Bluetooth 5.3
| Weight | 1.78kg |
|---|---|
| Brand | ASUS |
| Processor socket | Socket AM5 |
| Supported memory types | DDR5-SDRAM |
| Motherboard chipset | AMD B650 |
| Motherboard form factor | ATX |
| Specifications | Processor Processor manufacturer: AMD Processor socket: Socket AM5 Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series Supported processor sockets: Socket AM5 Memory Supported memory types: DDR5-SDRAM Number of memory slots: 4 Memory slots type: DIMM Memory channels: Dual-channel ECC сompatibility: ECC & Non-ECC Maximum internal memory: 256 GB Unbuffered memory: Yes Storage controllers Supported storage drive types: HDD & SSD Supported storage drive interfaces: M.2, SATA III Number of HDDs supported: 4 Number of storage drives supported: 7 RAID support: Yes RAID levels: 0, 1, 5, 10 Graphics Parallel processing technology support: Not supported On-board graphics card: No Internal I/O USB 2.0 connectors: 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1 USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1 Number of SATA III connectors: 4 S/PDIF out connector: Yes Front panel audio connector: Yes Front panel connector: Yes ATX Power connector (24-pin): Yes CPU fan connector: Yes Number of chassis fan connectors: 4 Chassis intrusion connector: Yes Peripheral (Molex) power connectors (4-pin): 1 EPS power connector (8-pin): Yes Number of COM connectors: 1 12V power connector: Yes RGB LED pin header: Yes Number of RGB LED pin headers: 3 Rear panel I/O ports USB 2.0 ports quantity: 3 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1 Ethernet LAN (RJ-45) ports: 1 HDMI ports quantity: 1 DisplayPorts quantity: 1 Line-in: Yes Microphone in: Yes WiFi-AP antenna jack: 1 Network Ethernet LAN: Yes Ethernet interface type: 2.5 Gigabit Ethernet Wi-Fi: Yes Top Wi-Fi standard: Wi-Fi 6E (802.11ax) Wi-Fi standards: Wi-Fi 6E (802.11ax) Bluetooth: Yes Bluetooth version: 5.3 Features Motherboard chipset: AMD B650 Audio output channels: 7.1 channels Product colour: Black Component for: PC Motherboard form factor: ATX Motherboard chipset family: AMD Cooling type: Passive Windows operating systems supported: Windows 10 x64, Windows 11 Expansion slots PCI Express x1 (Gen 4.x) slots: 1 PCI Express x16 (Gen 4.x) slots: 1 PCI Express x16 (Gen 5.x) slots: 1 Number of M.2 (M) slots: 3 1st M.2 largest key size: 2280 1st M.2 highest PCI Express generation: 5.0 2nd M.2 largest key size: 2280 2nd M.2 highest PCI Express generation: 4.0 3rd M.2 largest key size: 22110 3rd M.2 highest PCI Express generation: 4.0 BIOS BIOS type: UEFI AMI BIOS memory size: 256 Mbit Packaging data Package width: 353 mm Package depth: 273 mm Package height: 68 mm Package weight: 1.78 kg Weight & dimensions Width: 305 mm Depth: 244 mm Packaging content Cables included: SATA Antenna included: Yes Screws included: Yes |
