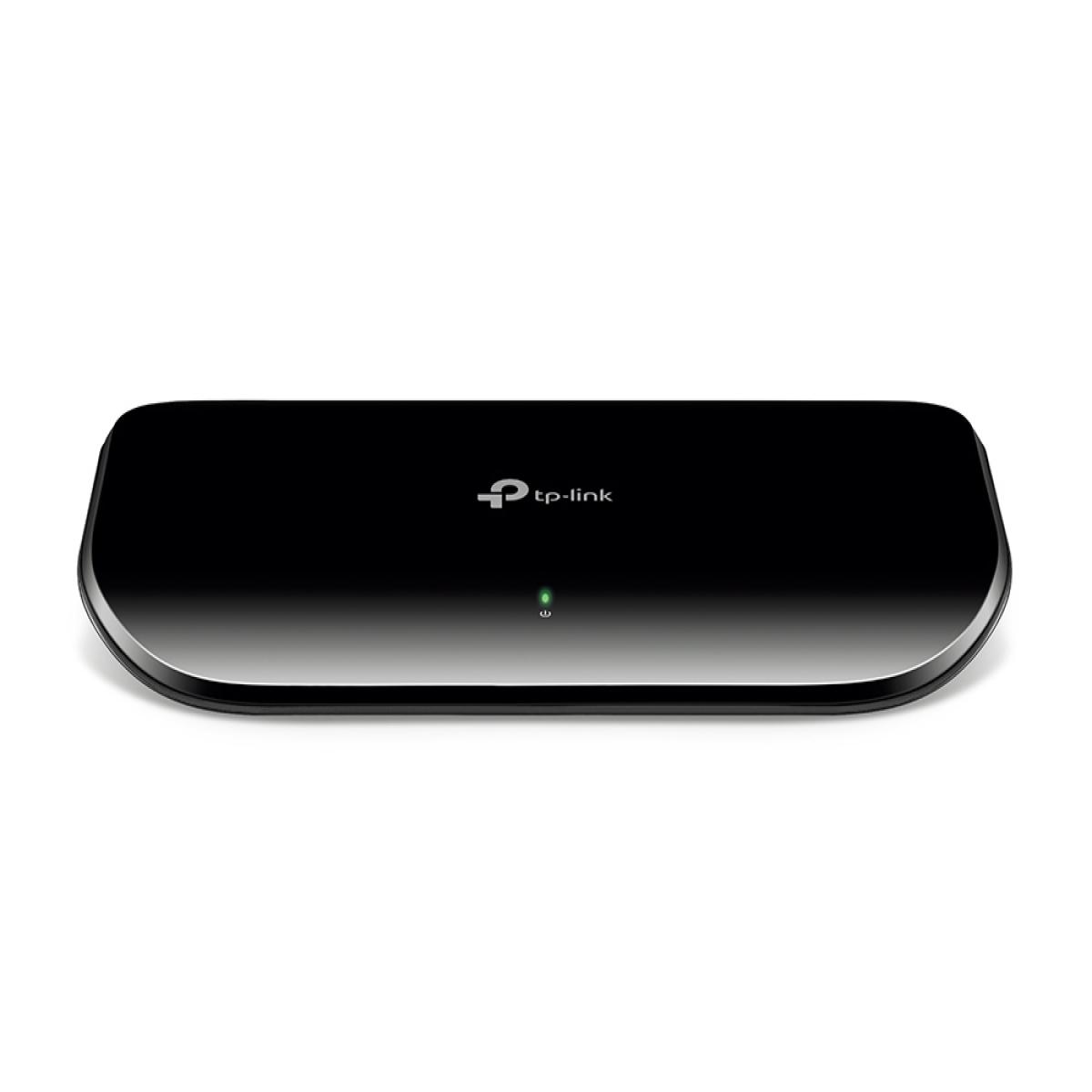

TP-Link 8-Port Gigabit Desktop Network Switch
£21.48
out of stock
SKU: TL-SG1008D
The TP-Link 8-Port Gigabit desktop switch TL-SG1008D provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Moreover, TL-SG1008D adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG1008D can save up to 80%* of the power consumption, making it an eco-friendly solution for your home or office network.Gigabit SwitchFeatured with 8 10/100/1000Mbps ports, TL-SG1008D greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.Go Green With Your EthernetYou now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG1008D 8-Port Gigabit Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.Power down Idle PortsWhen a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1008D can automatically detect the link status of each port and reduce the power consumption of ports that are idle, resulting in up to an 80% reduction in power use.Power Budget According to Cable LengthIdeally, shorter cable would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of the length.Easy to UseThe auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
E&OE
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity: 8
- Cat3, Cat4, Cat5, Cat5e 10BASE-T, 100BASE-TX, 1000BASE-T
- MAC address table: 4000 entries Switching capacity: 16 Gbit/s
- DC Power supply included
| Weight | 0.30kg |
|---|---|
| Brand | TP-Link |
| Specifications | Management features Switch type: Unmanaged Ports & interfaces Basic switching RJ-45 Ethernet ports quantity: 8 Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000) Gigabit Ethernet (copper) ports quantity: 8 Power connector: DC-in jack Network Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x 10G support: No Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T Cable types supported: Cat3, Cat4, Cat5, Cat5e Full duplex: Yes Flow control support: Yes Auto MDI/MDI-X: Yes Ethernet LAN data rates: 10,100,480,800,1000 Mbit/s Auto-negotiation: Yes Data transmission Switching capacity: 16 Gbit/s MAC address table: 4000 entries Store-and-forward: Yes Jumbo frames support: Yes Jumbo frames: 15000 Packet forwarding rate (1 Gbps): 14880 pps Packet forwarding rate (100 Mbps): 148800 pps Packet forwarding rate (10 Mbps): 1488000 pps Packet buffer memory: 2 MB Design Rack mounting: No Stackable: No Product colour: Black Housing material: Plastic LED indicators: Yes Wall mountable: Yes Performance Maximum cable length: 100 m Fanless: Yes Power Power source: DC Power supply included: Yes AC input voltage: 100 - 240 V AC input frequency: 50/60 Hz DC input voltage: 9 V Input current: 0.6 A Power consumption (typical): 4.63 W Power consumption (max): 3.53 W Power over Ethernet (PoE) Power over Ethernet (PoE): No Operational conditions Operating temperature (T-T): 0 - 40 °C Storage temperature (T-T): -40 - 70 °C Operating relative humidity (H-H): 10 - 90% Storage relative humidity (H-H): 5 - 90% Heat dissipation: 15.8 BTU/h Weight & dimensions Width: 180 mm Depth: 90 mm Height: 25.5 mm Packaging content Cables included: AC User guide: Yes Packaging data AC adapter included: Yes Package type: Box Package width: 110 mm Package depth: 185 mm Package height: 85 mm Package weight: 300 g Sustainability Sustainability compliance: Yes Certificates Compliance certificates: CE, Federal Communications Commission (FCC), RoHS Certification: CE, FCC, RoHS Logistics data Harmonized System (HS) code: 85176990 |
