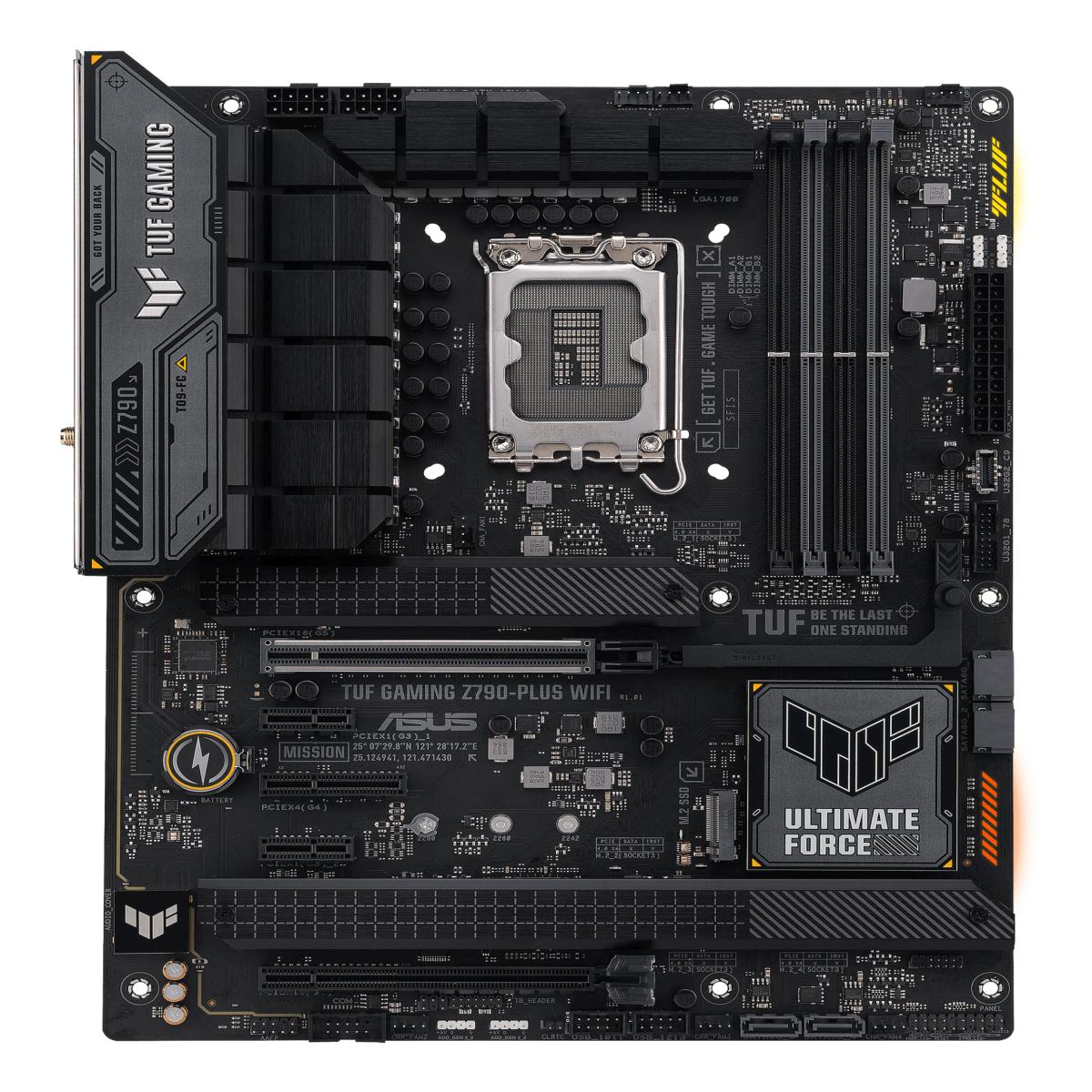

ASUS TUF GAMING Z790-PLUS WIFI Intel Z790 LGA 1700 ATX
£308.73
ASUS TUF GAMING Z790-PLUS WIFI, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™..., LGA 1700, DDR5-SDRAM, 128 GB
8 in stock
SKU: 90MB1D80-M1EAY0
ASUS TUF GAMING Z790-PLUS WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
| Weight | 0.03kg |
|---|---|
| Brand | ASUS |
| Processor socket | LGA 1700 |
| Supported memory types | DDR5-SDRAM |
| Motherboard chipset | Intel Z790 |
| Motherboard form factor | ATX |
| Specifications | Processor Processor manufacturer: Intel Processor socket: LGA 1700 Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 Supported processor sockets: LGA 1700 Memory Supported memory types: DDR5-SDRAM Number of memory slots: 4 Memory slots type: DIMM Memory channels: Dual-channel ECC сompatibility: Non-ECC Supported memory clock speeds: 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz Supported memory clock speed (max): 7200 MHz Maximum internal memory: 128 GB Unbuffered memory: Yes Storage controllers Supported storage drive types: HDD & SSD Supported storage drive interfaces: M.2, SATA III Number of storage drives supported: 8 RAID support: Yes RAID levels: 0, 1, 5, 10 Graphics Parallel processing technology support: Not supported Internal I/O USB 2.0 connectors: 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1 USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1 Number of SATA III connectors: 4 Front panel audio connector: Yes ATX Power connector (24-pin): Yes CPU fan connector: Yes Number of chassis fan connectors: 4 EPS power connector (8-pin): Yes Number of COM connectors: 1 Thunderbolt headers: 1 12V power connector: Yes RGB LED pin header: Yes Rear panel I/O ports USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1 USB 3.2 Gen 2x2 Type-C ports quantity: 1 Ethernet LAN (RJ-45) ports: 1 HDMI ports quantity: 1 HDMI version: 2.1 DisplayPorts quantity: 1 DisplayPort version: 1.4 Headphone outputs: 1 Line-in: Yes Microphone in: Yes S/PDIF out port: Yes WiFi-AP antenna jack: 2 Network Ethernet LAN: Yes Ethernet interface type: 2.5 Gigabit Ethernet Wi-Fi: Yes Top Wi-Fi standard: Wi-Fi 6 (802.11ax) Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) Bluetooth: Yes Bluetooth version: 5.3 Features Motherboard chipset: Intel Z790 Audio chip: Realtek S1220A Audio output channels: 7.1 channels Component for: PC Motherboard form factor: ATX Motherboard chipset family: Intel Windows operating systems supported: Windows 10 x64, Windows 11 Expansion slots PCI Express x1 (Gen 3.x) slots: 2 PCI Express x4 (Gen 4.x) slots: 1 PCI Express x16 (Gen 4.x) slots: 1 PCI Express x16 (Gen 5.x) slots: 1 Number of M.2 (M) slots: 4 BIOS BIOS type: UEFI AMI BIOS memory size: 192 Mbit Weight & dimensions Width: 305 mm Depth: 244 mm Packaging content Cables included: SATA |
