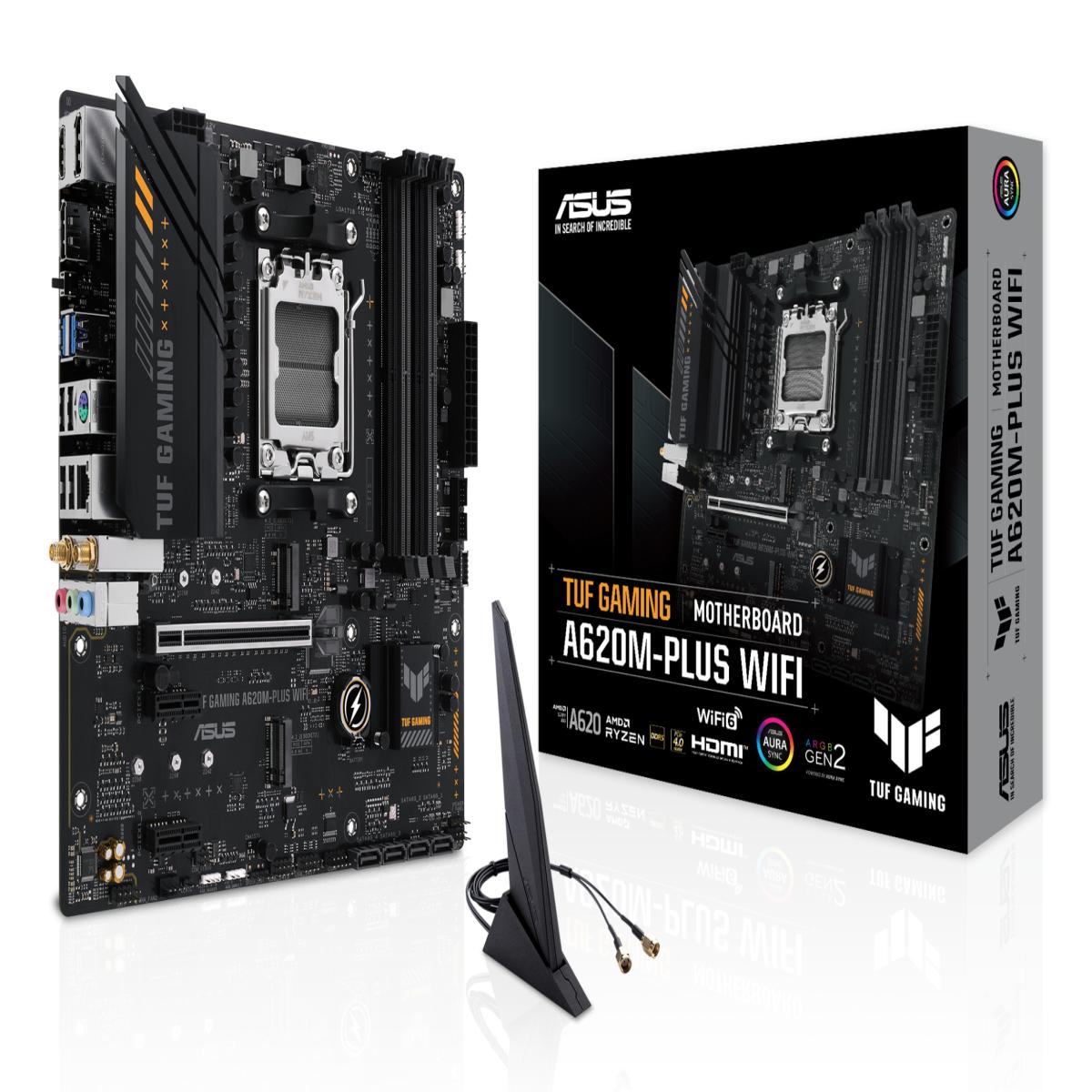

ASUS TUF GAMING A620M-PLUS WIFI AMD A620 Socket AM5 micro ATX
£137.28
ASUS TUF GAMING A620M-PLUS WIFI, AMD, Socket AM5, AMD Ryzen 7000 Series, DDR5-SDRAM, 128 GB, Dual-channel
2 in stock
SKU: 90MB1F00-M0EAY0
ASUS TUF GAMING A620M-PLUS WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory channels: Dual-channel. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
- AMD Socket AM5 AMD Ryzen 7000 Series
- PC micro ATX AMD A620 7.1 channels
- DDR5-SDRAM 4 Maximum internal memory: 128 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6
- BIOS type: UEFI AMI 256 Mbit
- 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet Wi-Fi Wi-Fi 6 (802.11ax) Bluetooth 5.3
| Weight | 0.92kg |
|---|---|
| Brand | ASUS |
| Processor socket | Socket AM5 |
| Supported memory types | DDR5-SDRAM |
| Motherboard chipset | AMD A620 |
| Motherboard form factor | micro ATX |
| Specifications | Processor Processor manufacturer: AMD Processor socket: Socket AM5 Compatible processor series: AMD Ryzen 7000 Series Memory Supported memory types: DDR5-SDRAM Number of memory slots: 4 Memory channels: Dual-channel ECC сompatibility: ECC & Non-ECC Supported memory clock speeds: 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz Maximum internal memory: 128 GB Unbuffered memory: Yes Storage controllers Supported storage drive types: HDD & SSD Supported storage drive interfaces: M.2, SATA III Number of HDDs supported: 4 Number of storage drives supported: 6 RAID support: Yes RAID levels: 0, 1, 10 Graphics On-board graphics card: No Internal I/O USB 2.0 connectors: 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2 Number of SATA III connectors: 4 S/PDIF out connector: Yes Front panel audio connector: Yes ATX Power connector (24-pin): Yes CPU fan connector: Yes Number of chassis fan connectors: 2 EPS power connector (8-pin): Yes Number of COM connectors: 1 12V power connector: Yes RGB LED pin header: Yes Rear panel I/O ports USB 2.0 ports quantity: 4 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2 Ethernet LAN (RJ-45) ports: 1 PS/2 ports quantity: 1 HDMI ports quantity: 1 DisplayPorts quantity: 2 Headphone outputs: 1 Microphone in: Yes Network Ethernet LAN: Yes Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet Wi-Fi: Yes Top Wi-Fi standard: Wi-Fi 6 (802.11ax) Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) Bluetooth: Yes Bluetooth version: 5.3 Features Motherboard chipset: AMD A620 Audio output channels: 7.1 channels Component for: PC Motherboard form factor: micro ATX Motherboard chipset family: AMD Cooling type: Passive Windows operating systems supported: Windows 10 x64, Windows 11 Expansion slots PCI Express x1 (Gen 3.x) slots: 2 PCI Express x16 (Gen 4.x) slots: 1 Number of M.2 (M) slots: 2 BIOS BIOS type: UEFI AMI BIOS memory size: 256 Mbit Packaging data Package width: 275 mm Package depth: 275 mm Package height: 67.5 mm Package weight: 920 g Weight & dimensions Width: 244 mm Depth: 244 mm Height: 50 mm Other features Weight: 800 g |
