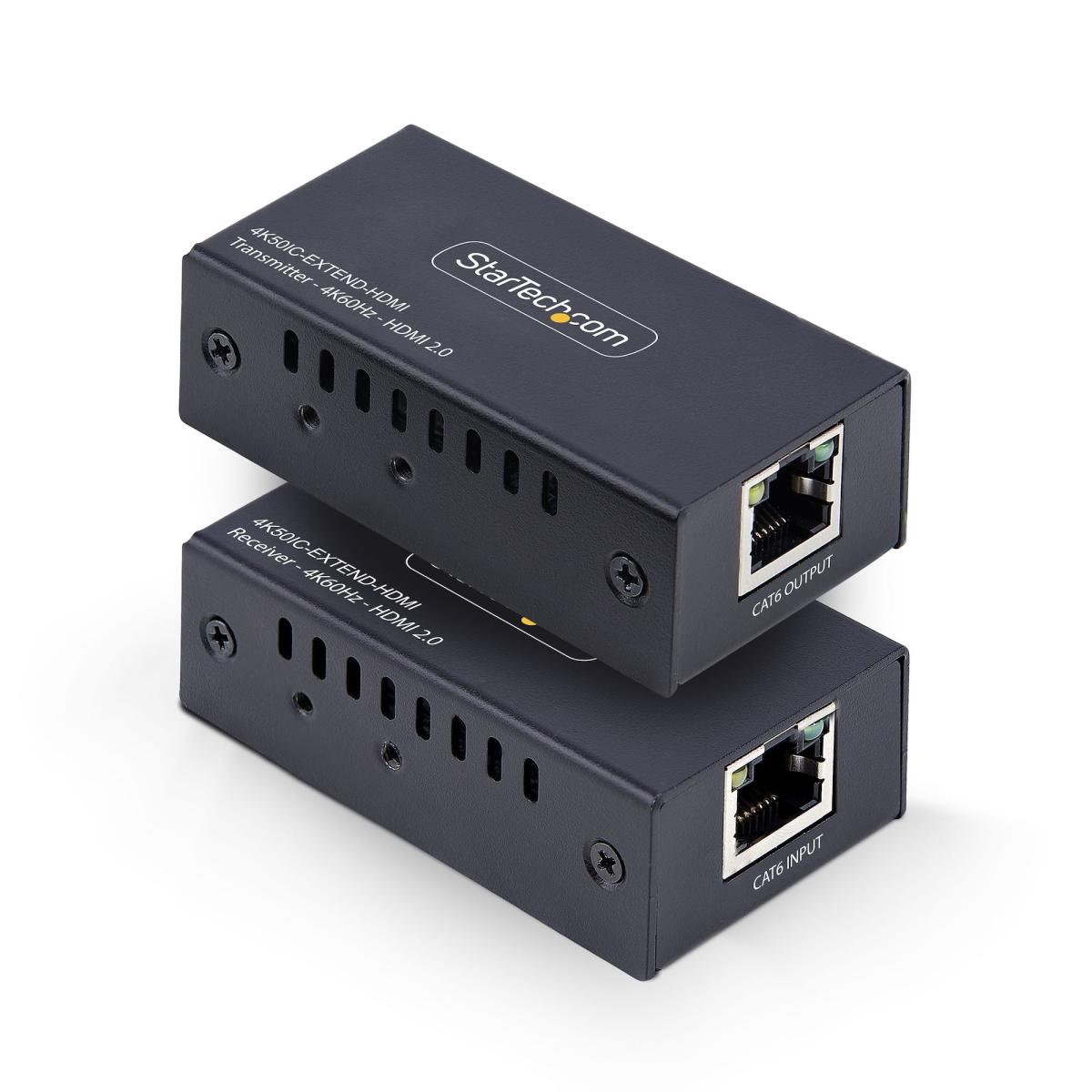

StarTech.com HDMI Extender Over CAT5e/CAT6, 4K 60Hz, Up to 200ft (60m), Transmitter and Receiver Kit, Power Over Cable, Compact Form Factor

£132.53

StarTech.com HDMI Extender Over CAT5e/CAT6, 4K 60Hz, Up to 200ft (60m), Transmitter and Receiver Kit, Power Over Cable, Compact Form Factor, 3840 x 2160 pixels, AV transmitter & receiver, 60 m, Wired, Black, HDCP

out of stock

SKU: 4K50IC-EXTEND-HDMI

Extend a 4K 60Hz HDMI signal over CAT6/6A cabling for distances of up to 200ft (60m) with Power over CableThe HDMI Extender is designed to transmit visually lossless and low latency 4K 60Hz video and 7.1 channel audio up to 200 feet (60 meters) over a single network cable.4K 60Hz ResolutionThis HDMI over CAT5e extender is HDMI 2.0 compliant and supports up to 4K 60Hz resolutions, HDR, HDCP 2.2, DTS, and Dolby Digital audio. This makes it suitable for high-quality video and audio transmission over long distances.Power-Over-CableThe extender features Power-over-Cable (PoC) technology, allowing the included power adapter to connect only to the transmitter while providing power to both the transmitter and receiver through the CAT5e/6 cable. This feature reduces the need for additional power sources at the receiver end.Versatile Installation OptionsA point-to-point connection uses a single CAT6/5e cable and requires no drivers, software, or IP configuration, significantly reducing setup time. The HDMI extender can be mounted on a wall, ceiling, or the underside of a table using the included brackets, offering versatile professional installation options. The HDMI extender offers a longer range than HDMI cables, and Ethernet cables are easier to run in walls, behind furniture, or through cable trays. Its compact form factor makes it ideal for boardrooms, digital signage, trade shows, and classrooms.

E&OE

AV transmitter & receiver 3840 x 2160 pixels Black
Maximum transfer distance: 60 m
60 Hz
7.1 channels
HDCP
Wired
Power source type: USB 10 W

Weight	0.36kg
Brand	StarTech.com
Specifications	Features Type: AV transmitter & receiver Maximum resolution: 3840 x 2160 pixels Cable types supported: Cat5e, Cat6 Maximum transfer distance: 60 m Maximum refresh rate: 60 Hz Audio output channels: 7.1 channels Supported graphics resolutions: 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1440 x 900, 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 1920 x 1440, 2048 x 1152, 2048 x 1536 (QXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 2560 x 1920, 2560 x 2048 HDCP: Yes Material: Metal Rack mounting: No HDCP version: 2.2 Product colour: Black Ports & interfaces Connectivity technology: Wired RJ-45 input ports: 1 RJ-45 output ports: 1 HDMI in: 1 Number of HDMI outputs: 1 HDMI version: 2.0 USB ports quantity: 1 USB connector type: USB Type-C Power Power source type: USB AC input voltage: 100 - 240 V Input current: 0.3 A Operating voltage (transmitter): 5 V Output current: 2 A Operating voltage (receiver): 5 V Power consumption (typical): 10 W USB Power Delivery (USB PD): Yes External power adapter: Yes Operational conditions Operating temperature (T-T): -20 - 60 °C Storage temperature (T-T): -30 - 70 °C Operating relative humidity (H-H): 0 - 90% Weight & dimensions Receiver dimensions (WxDxH): 40 x 67 x 23 mm Receiver weight: 92 g Transmitter dimensions (WxDxH): 40 x 67 x 23 mm Transmitter weight: 92 g Packaging data Package width: 150 mm Package depth: 117 mm Package height: 77 mm Package weight: 364 g Packaging content AC adapter included: Yes Included power plug types: ANZ, EU, NA, UK Quick start guide: Yes Mounting brackets included: Yes Technical details Compliance certificates: Federal Communications Commission (FCC), RoHS Logistics data Master (outer) case width: 430 mm Master (outer) case length: 330 mm Master (outer) case height: 380 mm Products per master (outer) case: 30 pc(s)
