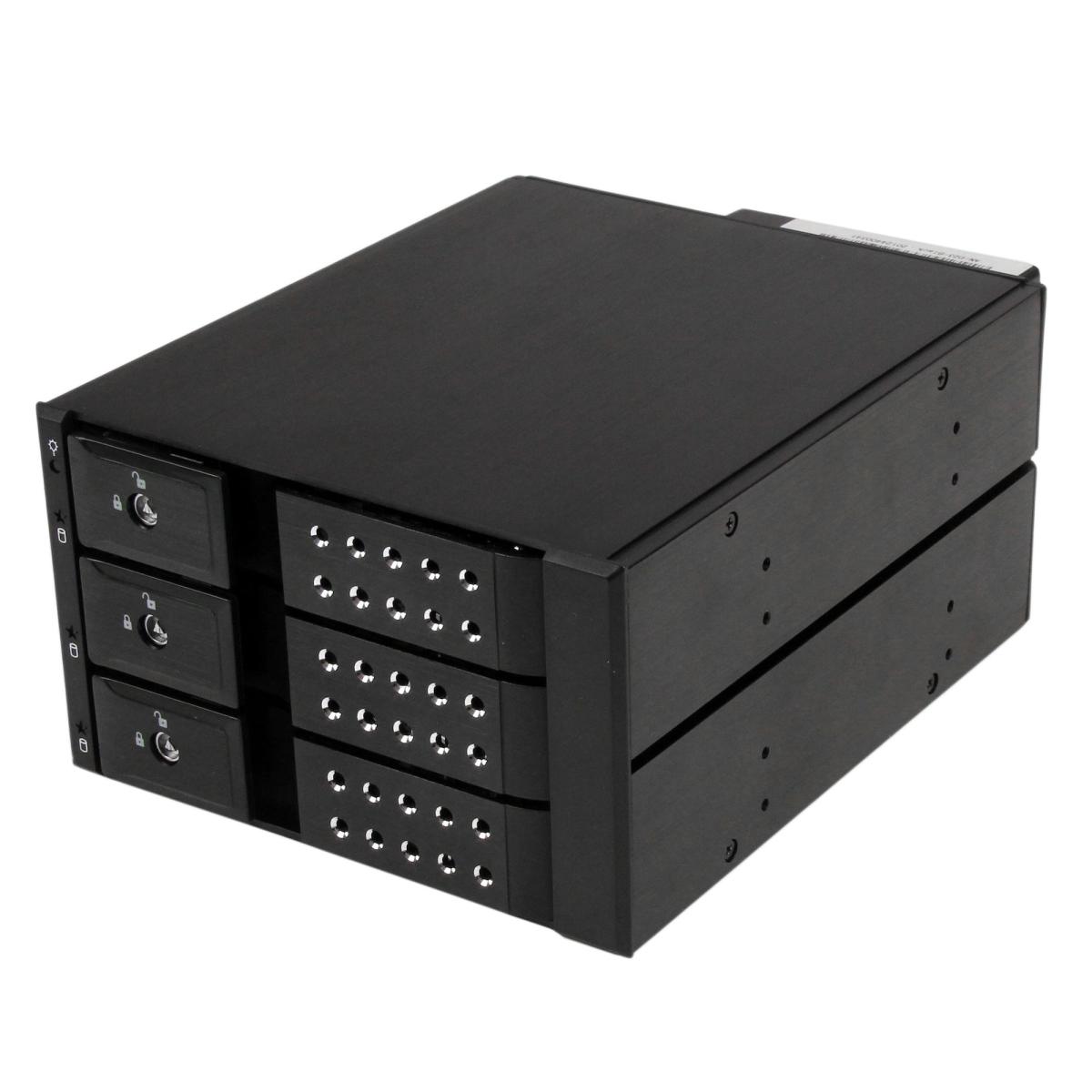

StarTech.com 3 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD
£83.45
out of stock
SKU: HSB3SATSASBA
Easily connect and hot swap up to three 3.5” SATA/SAS hard drives from two 5.25” baysThe HSB3SATSASBA Removable 3-drive backplane lets you quickly install and hot-swap 3.5" drives from the front of your computer, by turning two 5.25" bays into a hot-swappable interface for you to connect up to three 3.5” SATA or SAS hard drives (HDD).For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal accommodation for enterprise system applications.For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure.The HSB3SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
E&OE
| Weight | 1.20kg |
|---|---|
| Brand | StarTech.com |
| Specifications | Storage Storage drives installed: No Installed storage drive type: No Total installed storage capacity: 0 TB Supported storage drive types: HDD Number of storage drives supported: 3 Maximum supported storage capacity: 12 TB Storage drive interface: Serial ATA, Serial ATA II, Serial ATA III Storage drive size: 3.5" Data transfer rate: 6 Gbit/s Hot-swap drive bays: Yes Ports & interfaces Host ports: 3 SATA host port: Yes Number of SATA power connectors: 2 SATA power connector type: SATA 15-pin Design Internal: No Product colour: Black LED indicators: Activity, Power Number of fans: 1 fan(s) Performance Backplanes support: Yes Weight & dimensions Width: 145 mm Depth: 194.1 mm Height: 110 mm Weight: 1.2 kg Packaging data Package width: 253 mm Package depth: 184 mm Package height: 126 mm Package weight: 1.2 kg Packaging content Cables included: SATA Operational conditions Operating temperature (T-T): 0 - 55 °C Operating relative humidity (H-H): 5 - 85% Storage temperature (T-T): -20 - 60 °C Other features Compliance certificates: RoHS Logistics data Products per master (outer) case: 8 pc(s) Master (outer) case length: 391 mm Master (outer) case width: 541 mm Master (outer) case height: 287 mm Harmonized System (HS) code: 84717020 |
