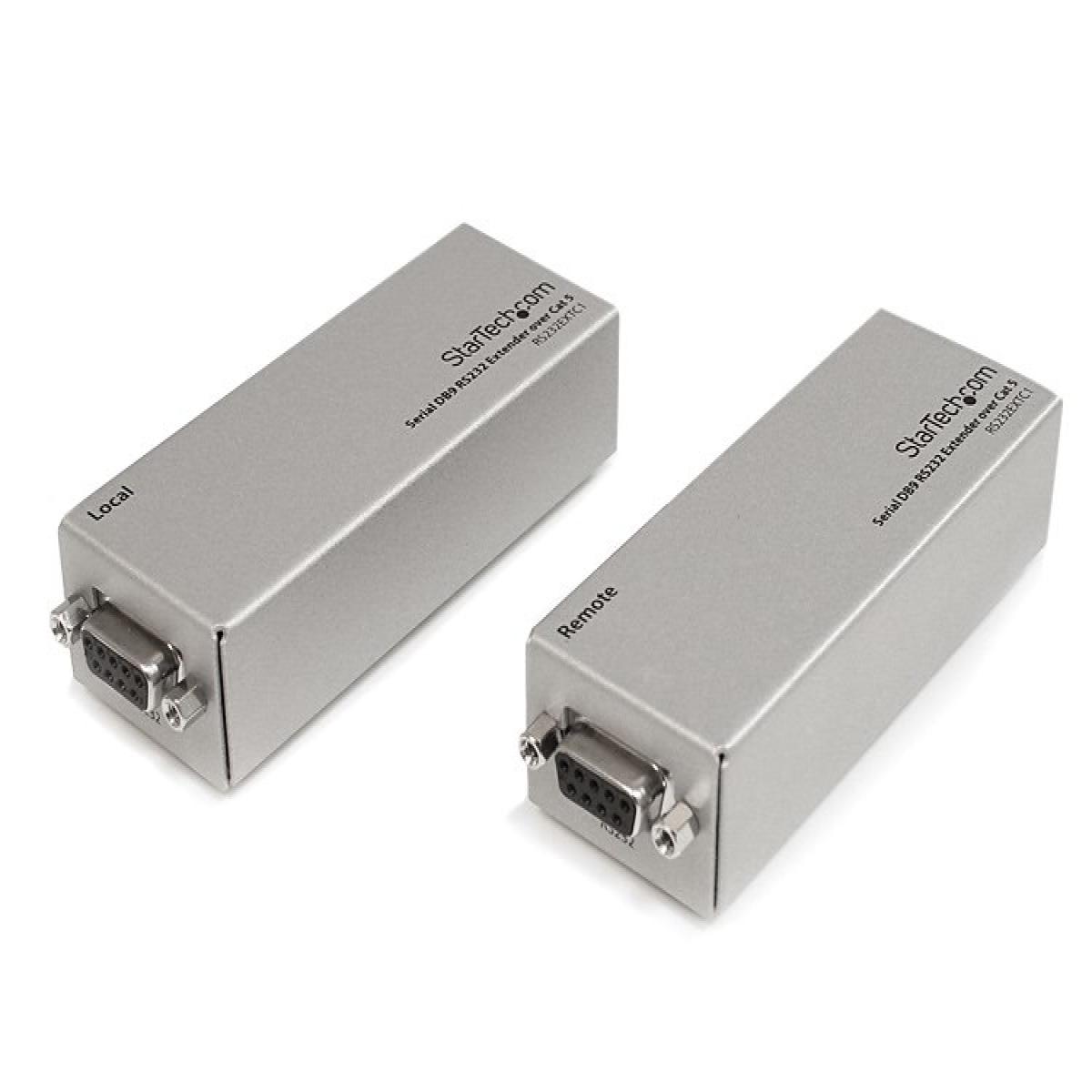

StarTech.com RS232 Serial over Cat5 Extender, 1 km (3300 ft) Range, Plug & Play, No Software, DB9 Serial Extension - TAA

£110.28

StarTech.com RS232 Serial over Cat5 Extender, 1 km (3300 ft) Range, Plug & Play, No Software, DB9 Serial Extension - TAA, 34 mm, 92 mm, 22 mm, 65 g, 57 mm, 315 mm

out of stock

SKU: RS232EXTC1GB

Extend an RS232 serial connection up to 1000 meters (3300 feet) using Cat 5 cablingThe RS232EXTC1GB Serial over Cat 5 Extender allows you to increase the distance of your RS232 Serial connection by up to 1000 meters (3300 feet), giving you the ability to connect serial peripheral devices up to a kilometer away from your system - an incredible 65x greater than normal RS232 serial cable length restrictions would permit. The Extender is a cost-effective serial extension solution and completely hardware-based, eliminating the need to install additional software, allowing for a completely plug and play installation. The hardware can be setup in minutes, using existing or new Cat 5 or better Ethernet cabling. Perfect for use in industrial monitoring and control, POS, security, medical, and traffic flow applications, the RS232 Serial over Cat 5 extender maintains the RS232 standard with support for data transfer rates of up to 230 Kbps. Backed by a StarTech.com 2-year warranty and free lifetime technical support.

E&OE

Console transmitter & receiver
0.23 Mbit/s
Maximum transfer distance: 1000 m
DC-in jack
Silver

Weight	1.00kg
Brand	StarTech.com
Specifications	Technical details Type: Console transmitter & receiver Data transfer rate: 0.23 Mbit/s Maximum transfer distance: 1000 m Product colour: Silver Cable types supported: Cat5, Cat5e, Cat6 Compliance certificates: CE, RoHS Plug and Play: Yes Ports & interfaces RS-232 ports: 2 RJ-45 ports quantity: 2 DC-in jack: Yes Weight & dimensions Width: 34 mm Depth: 92 mm Height: 22 mm Weight: 65 g Package width: 57 mm Package depth: 315 mm Package height: 138 mm Package weight: 1 kg Operational conditions Operating temperature (T-T): 0 - 70 °C Storage temperature (T-T): 0 - 85 °C Operating relative humidity (H-H): 0 - 95% Packaging content Cables included: Serial Manual: Yes AC adapter included: Yes Power Input voltage: 100 - 240 V Input current: 0.055 A Output voltage: 9 V Output current: 0.3 A Power plug type: Type M Logistics data Harmonized System (HS) code: 84733020 Master (outer) case width: 326 mm Master (outer) case length: 328 mm Master (outer) case height: 300 mm Products per master (outer) case: 10 pc(s)
