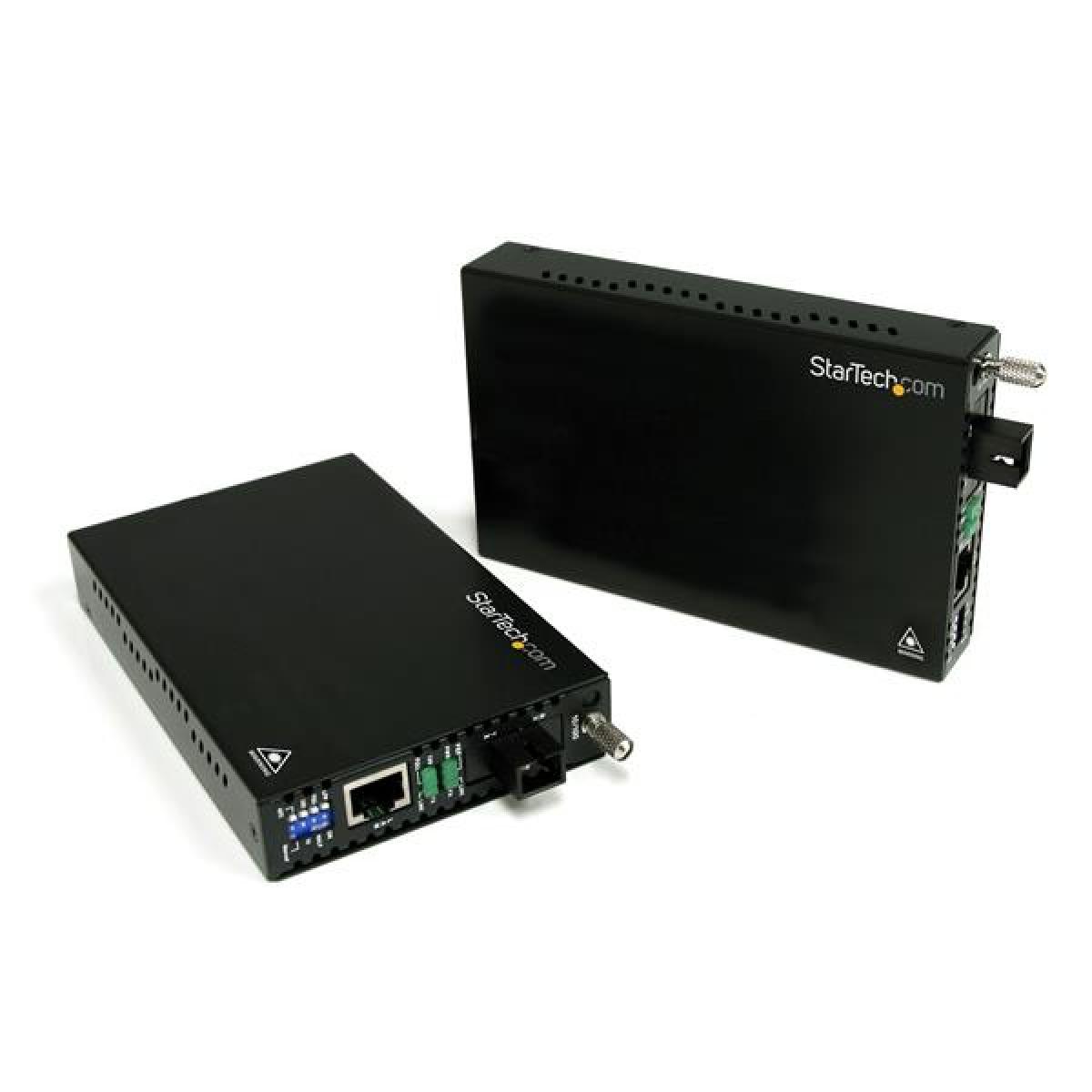

StarTech.com 10/100 Mbps Ethernet Single Mode WDM Fiber Media Converter Kit SC 20km
£117.74
out of stock
SKU: ET90110WDM2
Convert and extend a 10/100 Mbps Ethernet connection up to 12.4 miles/20 km over a single mode SC fiber cableThe ET90110WDM2 10/100 Mbps Ethernet Single Mode WDM Fiber Media Converter Kit SC (20km) lets you extend a 10/100 Mbps Ethernet connection over single mode fiber, at distances up to 20 km (12.4 mi).The converter offers Wavelength-Division Multiplexing (WDM), enabling bi-directional communication over a single strand of fiber, essentially doubling the capacity of your existing fiber infrastructure without having to install new cabling.The Ethernet to WDM Fiber Kit includes both endpoints (two interchangeable modules) - a simple solution for connecting 10/100Base-T networks to remote locations using SC-terminated single mode fiber. The Ethernet to Fiber Converter also features a durable all-steel chassis, and a simple plug-and-play installation with minimal configuration required.For added versatility, this fiber media converter supports standalone operation, or one or both sides can be installed into a 20 Slot, 2U Rackmount Chassis (ETCHS2U).Backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage- Wavelength Division Multiplexing (WDM) fiber cuts cabling costs in half, or doubles existing network speed/capacity using pre-existing cables- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility- Rugged steel casing for durability in harsh environments
E&OE
- Wired
- 200 Mbit/s 20000 m 1310 nm
- Ethernet LAN (RJ-45) ports: 1 DC-in jack
- Single-mode Fiber ports quantity: 1 SC
- Black
| Weight | 1.36kg |
|---|---|
| Brand | StarTech.com |
| Specifications | Network Maximum data transfer rate: 200 Mbit/s Converter input interface: 100Base-TX, 10Base-T Converter output interface: 100Base-FX Networking standards: IEEE 802.3, IEEE 802.3u Ethernet interface type: Fast Ethernet Ethernet LAN data rates: 10,100 Mbit/s Auto MDI/MDI-X: Yes Duplex system: Full, Half Performance Maximum transfer distance: 20000 m Wavelength: 1310 nm Fiber mode structure: Single-mode Features Internal: No Plug and Play: Yes Product colour: Black Ports & interfaces Connectivity technology: Wired Ethernet LAN (RJ-45) ports: 1 Fiber ports quantity: 1 Fiber optic connector: SC DC-in jack: Yes Power Output voltage: 12 V Output current: 1 A External power adapter: Yes Weight & dimensions Weight: 1.2 kg Operational conditions Operating temperature (T-T): 0 - 60 °C Storage temperature (T-T): -10 - 70 °C Operating relative humidity (H-H): 10 - 90% Packaging content Manual: Yes Packaging data Package width: 211 mm Package depth: 279 mm Package height: 101 mm Package weight: 1.36 kg Certificates Compliance certificates: RoHS Certification: CE, FCC Logistics data Harmonized System (HS) code: 85176990 Other features Dimensions (WxDxH): 95 x 160 x 20 mm Full duplex: Yes |
