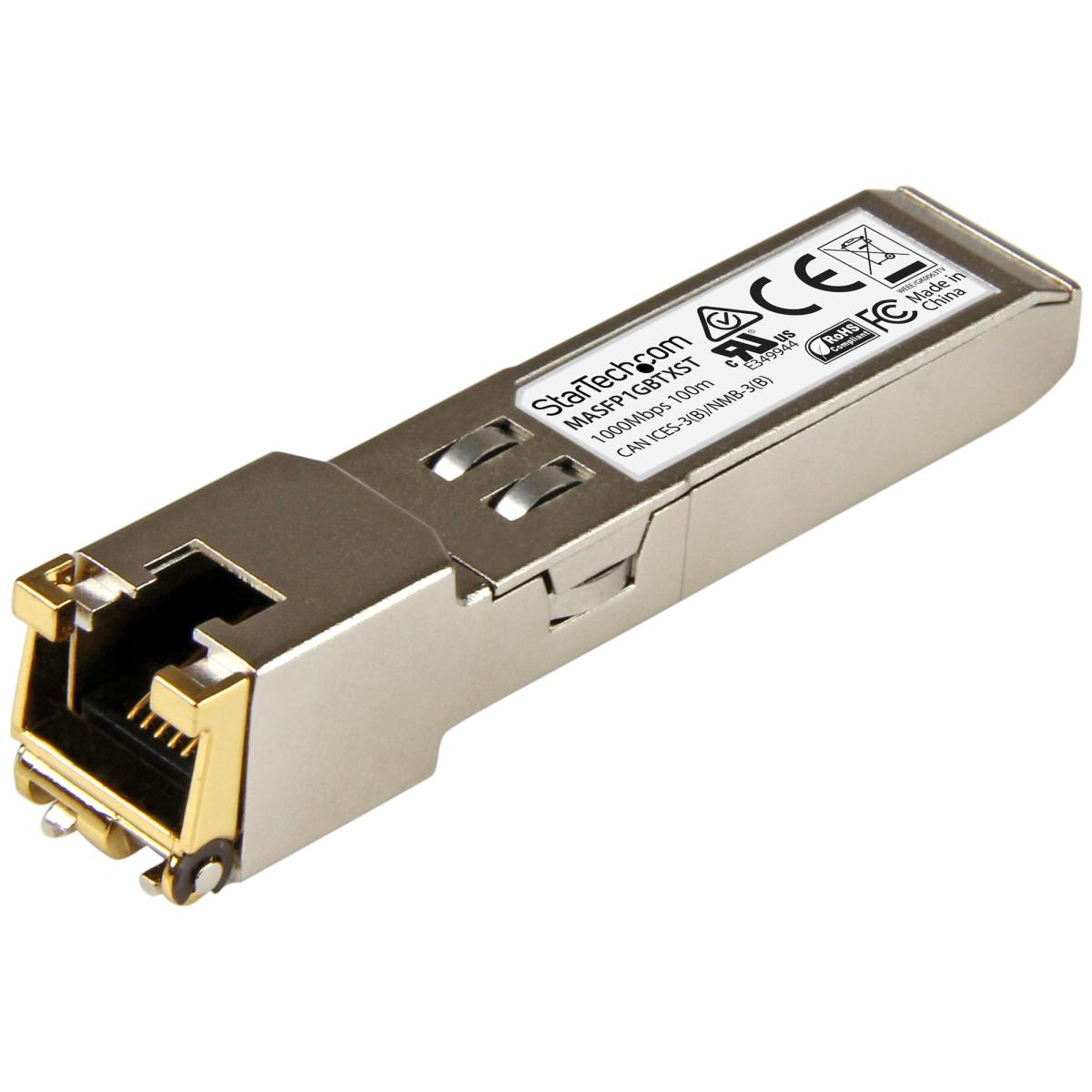

StarTech.com Cisco Meraki MA-SFP-1GB-TX Compatible SFP Module - 1000BASE-T - SFP to RJ45 Cat6/Cat5e - 10/100/1000 Mbps - RJ-45 100m - Cisco Meraki MS225, MX400, MS250
£45.44
out of stock
SKU: MASFP1GBTXST
10/100/1000 Mbps | Copper | RJ45 | 100 m (328 ft) | Lifetime WarrantyThe MASFP1GBSXST is a Cisco Meraki MA-SFP-1GB-SX compatible copper transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over copper cable, for 10BASE-T, 1000BASE-T and 100BASE-TX compliant networks, with a maximum distance of up to 100 m (328 ft).Technical Specifications:• Maximum Data Transfer Rate: 1000 Mbps• Type: Copper• Connection Type: RJ45 Connector• Maximum Transfer Distance: 100 m (328 ft)• MTBF: 4,655,371 hours• Power Consumption: Less than 1.3 Watts• Digital Diagnostics Monitoring (DDM): NoThis SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
E&OE
- SFP Copper 1000 Mbit/s
- Hot-Plug support
- Power consumption (typical): 1.3 W
| Weight | 0.05kg |
|---|---|
| Brand | StarTech.com |
| Specifications | Performance SFP transceiver type: Copper Maximum data transfer rate: 1000 Mbit/s Interface type: SFP SFP transceiver standard: TX Maximum transfer distance: 100 m Ethernet LAN: Yes Networking standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u Ethernet LAN (RJ-45) ports: 1 Duplex system: Full Auto MDI/MDI-X: Yes Auto-negotiation: Yes Digital Diagnostics Monitoring (DDM): No Features Product colour: Silver Housing material: Aluminium Hot-Plug support: Yes Mean time between failures (MTBF): 4655371 h Power Power consumption (typical): 1.3 W Certificates Compliance certificates: CE, RoHS Operational conditions Operating temperature (T-T): 0 - 70 °C Storage temperature (T-T): -40 - 85 °C Operating relative humidity (H-H): 5 - 95% Weight & dimensions Width: 18 mm Depth: 68 mm Height: 13.8 mm Weight: 21 g Packaging content Quantity per pack: 1 pc(s) Packaging data Package width: 93 mm Package depth: 114 mm Package height: 33 mm Package weight: 51 g Logistics data Master (outer) case width: 349 mm Master (outer) case length: 431 mm Harmonized System (HS) code: 85369010 Master (outer) case height: 358 mm Products per master (outer) case: 120 pc(s) Country of origin: China |
