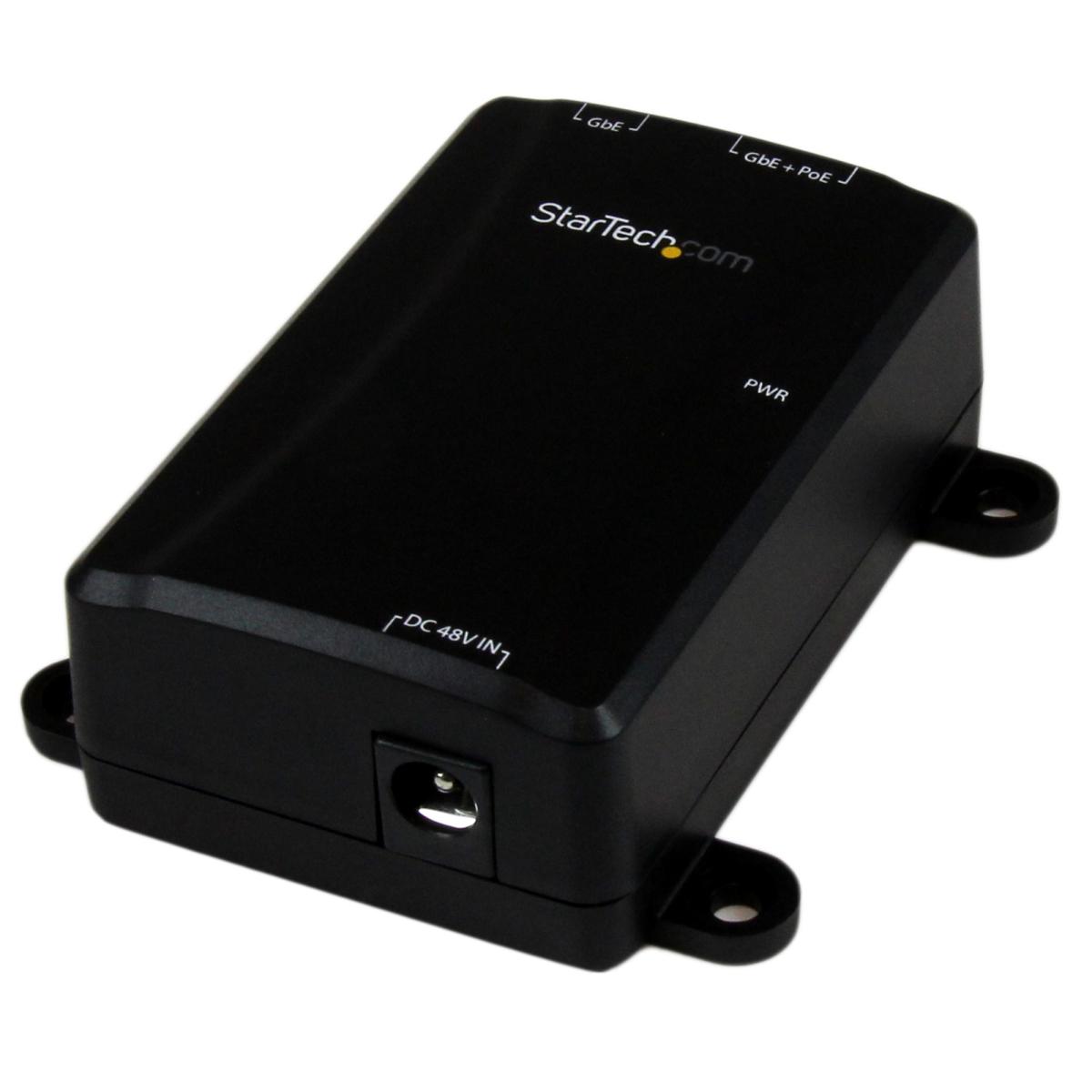

StarTech.com 1-Port Gigabit Midspan - PoE+ Injector - 802.3at and 802.3af

StarTech.com 1-Port Gigabit Midspan - PoE+ Injector - 802.3at and 802.3af

£88.64

StarTech.com 1-Port Gigabit Midspan - PoE+ Injector - 802.3at and 802.3af, Gigabit Ethernet, 10,100,1000 Mbit/s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, Full, Cat5, Black

out of stock

SKU: POEINJ1GW

Deliver power and data to your Power over Ethernet device using this mountable PoE+ midspanThis Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using standard Ethernet cable, at distances of up to 100 m (330 ft.).The PoE midspan is a cost-effective alternative to upgrading your existing network switch to a PoE-capable model.Convenience and cost savingsThis versatile PoE injector lets you connect a PoE-powered device (PD) to a non-PoE network switch, so you can avoid the expense and aggravation of replacing your existing switch with a PoE-enabled model. It supplies up to 30 watts of power, so you can easily power and access a high-power PoE-compliant device, such as an IP camera or a wireless access point (WAP), using traditional copper (RJ45) Ethernet cable. The midspan injector makes it easy to extend data and power connectivity to your PoE+ device across long distances, even in a remote location where a typical power outlet isn’t available.Easy to set up in mixed environmentsYou can integrate this compact injector discreetly into a variety of environments. It features a surface-mountable housing that’s perfect for installing on walls or under a desk, but it’s also palm-sized, for use on desktop surfaces.Plus, with plug-and-play operation, you can enjoy fast and hassle-free setup without disrupting your workflow.Intelligent power allocationNot sure which class your PoE device is? The Gigabit PoE+ injector automatically detects the power requirements of your connected PoE PD, and delivers the appropriate level of power without damaging your device.The POEINJ1GW is backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage

E&OE

  • 10,100,1000 Mbit/s Cat5 100 m
  • Power over Ethernet (PoE) IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
  • Black
Weight 1.00kg
Brand StarTech.com
Specifications Network
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Power over Ethernet (PoE): Yes
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Duplex system: Full
Cable types supported: Cat5
Features
Product colour: Black
Plug and Play: Yes
Maximum operating distance: 100 m
LED indicators: Power
Ports & interfaces
Ethernet LAN (RJ-45) ports: 2
DC-in jack: Yes
Power
Power over Ethernet (PoE) voltage: 48 V
Output power: 30 W
Input voltage: 100 - 240 V
Input current: 0.75 A
Output current: 0.64 A
Power consumption (max): 36 W
Certificates
Compliance certificates: CE, RoHS
Operational conditions
Operating temperature (T-T): 0 - 45 °C
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -20 - 85 °C
Weight & dimensions
Width: 63 mm
Depth: 70 mm
Height: 25 mm
Weight: 50 g
Packaging content
AC adapter included: Yes
Power cord included: Yes
Quick installation guide: Yes
Packaging data
Package width: 230 mm
Package depth: 190 mm
Package height: 76 mm
Package weight: 1 kg
Logistics data
Harmonized System (HS) code: 85044095
Master (outer) case width: 400 mm
Master (outer) case length: 490 mm
Master (outer) case height: 260 mm
Products per master (outer) case: 12 pc(s)
