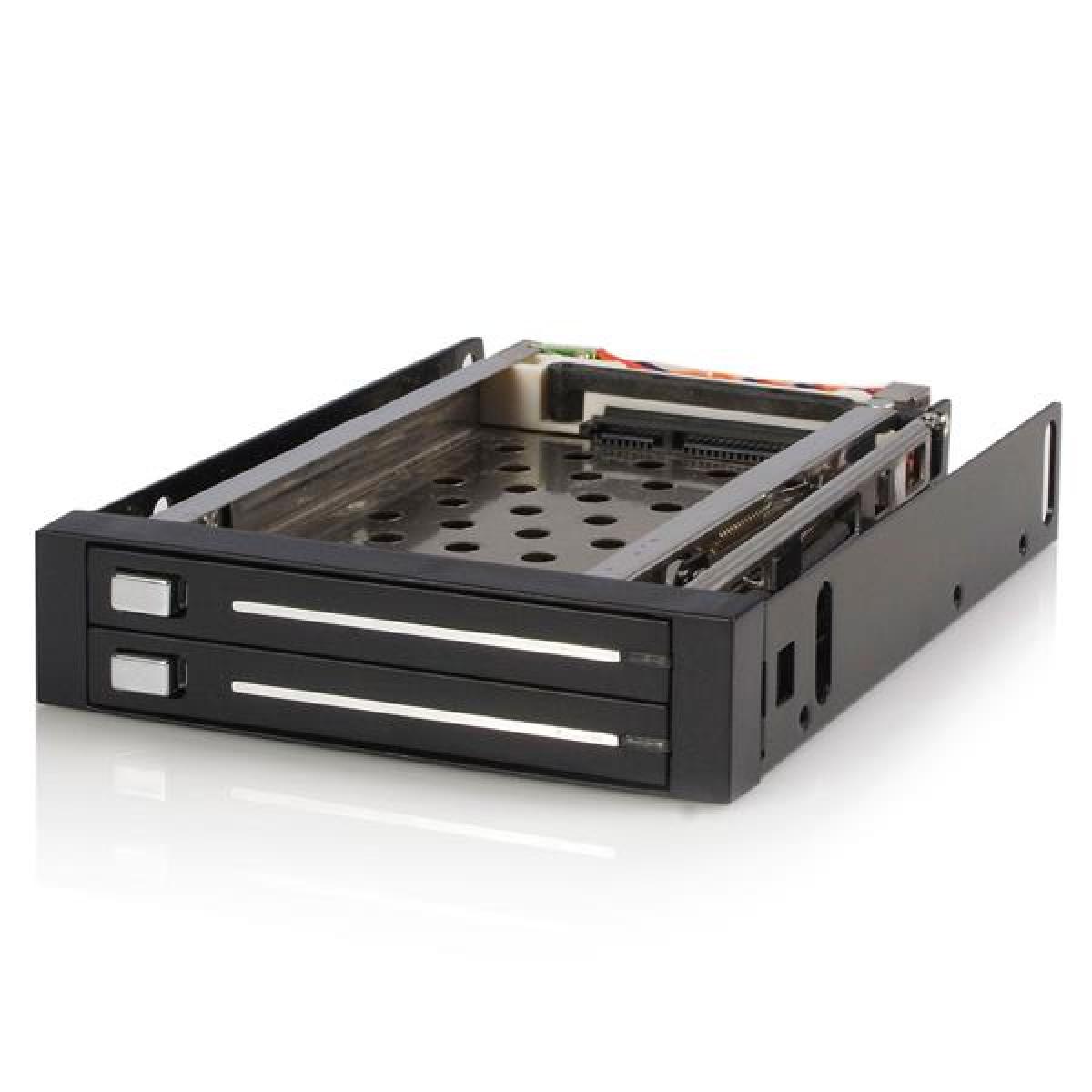

StarTech.com 2 Drive 2.5in Trayless Hot Swap SATA Mobile Rack Backplane

StarTech.com 2 Drive 2.5in Trayless Hot Swap SATA Mobile Rack Backplane

£55.25

StarTech.com 2 Drive 2.5in Trayless Hot Swap SATA Mobile Rack Backplane, 8.89 cm (3.5"), Bezel panel, Black, 2.5", Serial ATA, Serial ATA II, Serial ATA III, Aluminium

out of stock

SKU: HSB220SAT25B

Easy, trayless removal and insertion of dual 2.5in SATA hard drives from single 3.5in bayThis 3.5in SATA hard drive hot-swap bay allows you to install two 2.5in SATA hard drives (HDD) or solid state drives (SSD) in an available/unused 3.5in floppy drive bay.Featuring a convenient "no mounting required /easy eject" feature (like a tape cartridge or floppy disk), the hard drive hot swap bay doesn't require that the drives be installed in a tray - making it the ideal solution for quick and easy drive removals and insertions as part of a system building process, or integration into rackmount systems or industrial environments.To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller.Also a perfect addition for operating system image deployment and any task that requires being able to quickly access large volumes of data on the fly, the hot swap bay provides everything you need to expedite important projects while maintaining a reliable storage solution.With support for SATA HDD speeds up to 6.0 Gbps, this backplane is fully compatible with RAID installations to ensure maximum performance and versatility for enhanced storage applications.

E&OE

  • Bezel panel 8.89 cm (3.5") Black
  • Material: Aluminium
  • HDD interface: Serial ATA, Serial ATA II, Serial ATA III
Weight 0.48kg
Brand StarTech.com
Specifications Features
Size (imperial): 8.89 cm (3.5")
Type: Bezel panel
Product colour: Black
Number of HDDs supported: 2
HDD size: 2.5"
HDD interface: Serial ATA, Serial ATA II, Serial ATA III
Material: Aluminium
Supported storage drive heights: 9.5 mm
LED indicators: Activity, Power
Certification: CE, FCC, REACH
Weight & dimensions
Width: 102 mm
Depth: 134 mm
Height: 24 mm
Weight: 286 g
Packaging data
Package width: 128 mm
Package depth: 170 mm
Package height: 52 mm
Package weight: 481 g
Packaging content
Cables included: SATA
Screws included: Yes
Manual: Yes
Technical details
Compliance certificates: RoHS
Logistics data
Products per master (outer) case: 32 pc(s)
Master (outer) case width: 366 mm
Master (outer) case length: 432 mm
Master (outer) case height: 280 mm
Harmonized System (HS) code: 84733080
