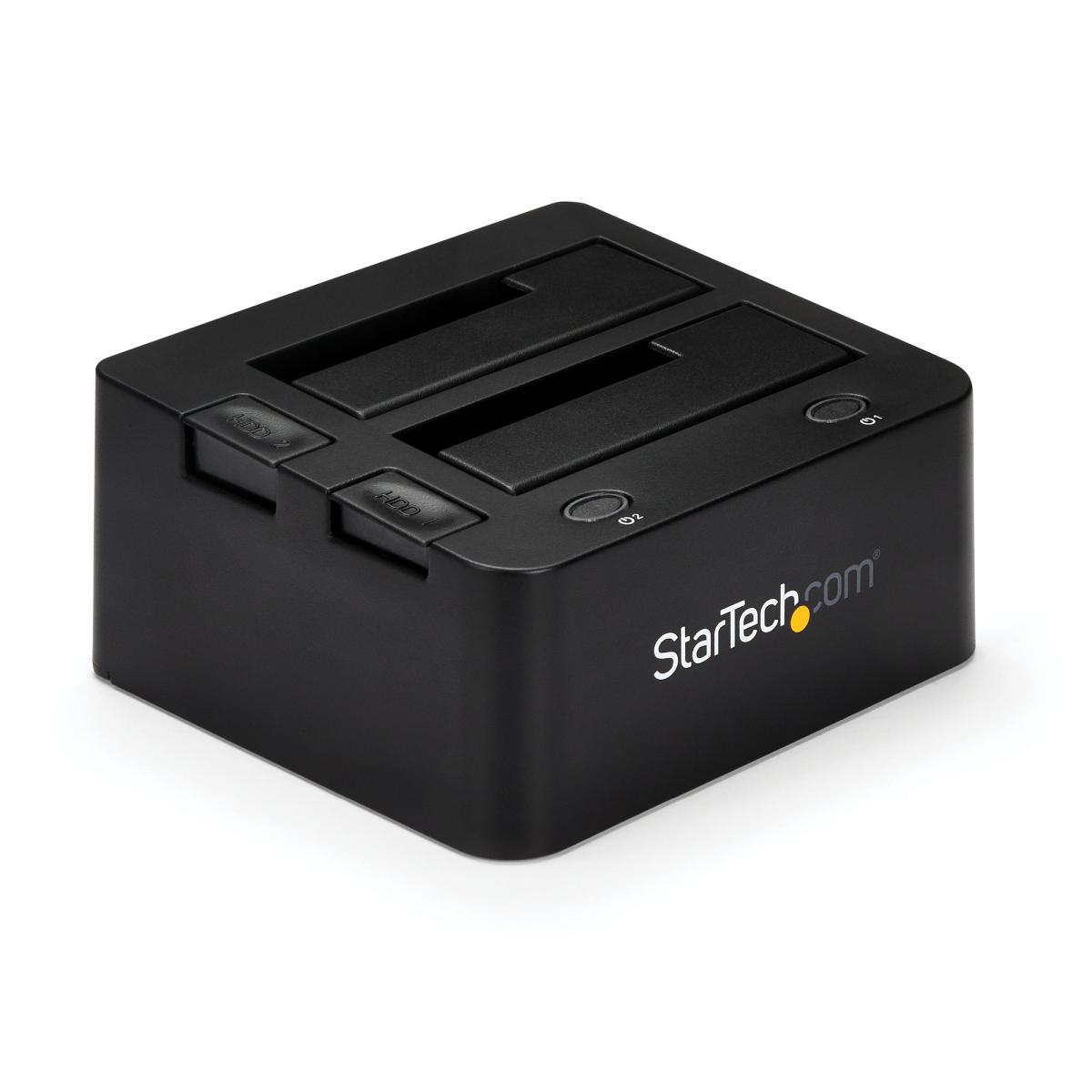

StarTech.com Dual-Bay USB 3.0 to SATA and IDE Hard Drive Docking Station, USB Hard Drive Dock, External 2.5/3.5" SATA I/II/III and IDE (40 pin) SSD/HDD Docking Station, Hot-Swap Hard Drive Bays, Top-Loading

StarTech.com Dual-Bay USB 3.0 to SATA and IDE Hard Drive Docking Station, USB Hard Drive Dock, External 2.5/3.5" SATA I/II/III and IDE (40 pin) SSD/HDD Docking Station, Hot-Swap Hard Drive Bays, Top-Loading

£75.94

out of stock

SKU: UNIDOCKU33

StarTech.com Dual-Bay USB 3.0 to SATA and IDE Hard Drive Docking Station, USB Hard Drive Dock, External 2.5/3.5" SATA I/II/III and IDE (40 pin) SSD/HDD Docking Station, Hot-Swap Hard Drive Bays, Top-Loading, HDD, SSD, Parallel ATA (IDE), Serial ATA, Serial ATA II, Serial ATA III, 2.5,3.5", 6 TB, USB 3.2 Gen 1 (3.1 Gen 1) Type-B, Black

External SSD/HDD Docking Station | USB 3.2 Gen 1 (5 Gbps) to SATA III and IDEThe UNIDOCKU33 USB 3.0 Universal HDD / SSD Dock enables you to instantly access your 2.5 or 3.5in IDE and SATA hard drives through two top loading drive slots, saving you the hassle of mounting the drives into a computer or external enclosure or tray.Enhanced with UASP (USB Attached SCSI Protocol), this hard drive docking station lets you get the most out of the fastest drive technologies such as SATA III (6 Gbps), solid state drives (SSD) and hybrid, drives with performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller. See our UASP testing results below for further details.The slot-loading design holds the SATA and IDE drives upright inside the docks, neatly keeping them off the desk, for convenience and a clutter-free setup. For SATA drives, the HDD can be inserted and connected directly through the designated dock slot, while the IDE drive slot is conveniently positioned near the rear panel 40-pin data and LP4 power connections, making it easy to connect to the dock using the included IDE data and power cables.A single USB 3.0 connection to your host computer, enables access to both the IDE & SATA hard drives simultaneously - a convenient solution for migrating data from an IDE drive to a SATA drive or vice versa. The dock can also be used to greatly increase the storage and backup capabilities of your computer system with support for high capacity drives (tested with up to 6TB 3.5" and 2TB 2.5" drives).The UNIDOCKU33 is backed by a StarTech.com 2-year warranty and free lifetime technical support.Improved Performance with UASPUASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.At the same peak in testing UASP also shows an 80% reduction in required processor resources.Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.

E&OE

  • 5 Gbit/s
  • Material: Plastic
  • Storage media type: HDD, SSD
  • Storage drive interface: Parallel ATA (IDE), Serial ATA, Serial ATA II, Serial ATA III
  • Storage drive sizes supported: 2.5,3.5"
  • Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B
  • DC-in jack Plug and Play
  • Black
Weight 1.00kg
Brand StarTech.com
Specifications Hard drive
Storage media type: HDD, SSD
Storage drive interface: Parallel ATA (IDE), Serial ATA, Serial ATA II, Serial ATA III
Storage drive sizes supported: 2.5,3.5"
Number of storage drives supported: 2
Maximum storage capacity: 6 TB
Ports & interfaces
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 3.2 Gen 1 (3.1 Gen 1) ports quantity: 1
DC-in jack: Yes
Features
Product colour: Black
Material: Plastic
Maximum data transfer rate: 5 Gbit/s
Hot-swap: Yes
Plug and Play: Yes
RAID support: No
LED indicators: Activity, Power
UASP support: Yes
Certification: CE, FCC
Cooling
Built-in fan: No
Power
AC input voltage: 110-240 V
Input current: 1.3 A
Output voltage: 12 V
Output current: 3 A
Power plug type: Type M
Weight & dimensions
Width: 130 mm
Depth: 147 mm
Height: 70 mm
Weight: 500 g
Packaging data
Package width: 189 mm
Package depth: 213 mm
Package height: 122 mm
Package weight: 1 kg
Packaging content
AC adapter included: Yes
Cables included: USB
Manual: Yes
Operational conditions
Operating temperature (T-T): 5 - 80 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 8 - 90%
Other features
Chipset: JMicron - JMS561U, JMD330
Mean time between failures (MTBF): 30000 h
Compliance certificates: RoHS
Logistics data
Harmonized System (HS) code: 84733080
Master (outer) case width: 631 mm
Master (outer) case length: 216 mm
Master (outer) case height: 473 mm
Products per master (outer) case: 10 pc(s)
