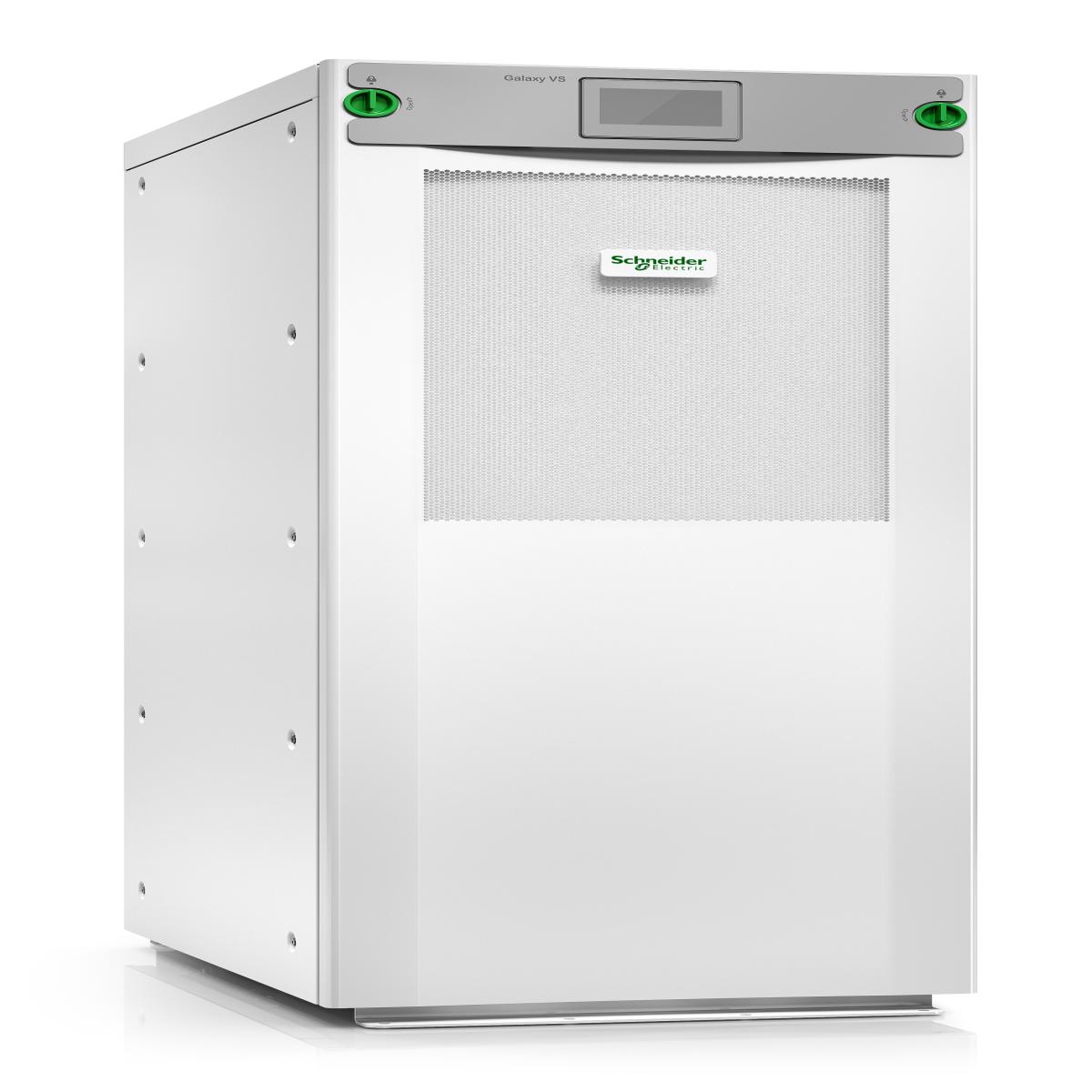

APC GVSUPS20KB4HS uninterruptible power supply (UPS) Double-conversion (Online) 20 kVA 20000 W
£11526.16
APC GVSUPS20KB4HS, Double-conversion (Online), 20 kVA, 20000 W, Sine, 340 V, 460 V
out of stock
SKU: GVSUPS20KB4HS
APC GVSUPS20KB4HS. UPS topology: Double-conversion (Online), Output power capacity: 20 kVA, Output power: 20000 W. AC outlet types: Hard Wire 4-wire (3PH + G), Hard Wire 5-wire (3PH + N + G). Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 480 V. Form factor: Tower, Product colour: White, Display type: LCD. Certification: CSA C22.2 NO. 107.3, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, IEC 60721-4-2 Level 2M2, UL...
| Weight | 360.00kg |
|---|---|
| Brand | APC |
| Specifications | Features UPS topology: Double-conversion (Online) Output power capacity: 20 kVA Output power: 20000 W Waveform: Sine Input operation voltage (min): 340 V Input operation voltage (max): 460 V Input frequency: 40/70 Hz Output operation voltage (min): 380 V Output operation voltage (max): 415 V Output frequency: 50/60 Hz Maximum current: 36 A Number of input phases: 3 Number of output phases: 3 Input power factor: 0.99 Crest factor: 2.5:1 ECO mode: Yes Output voltage Total Harmonic Distortion (THD): 3% Input current Total Harmonic Distortion (THD): 3% Noise level: 55 dB Power protection features: Overload, Short circuit Audible alarm(s): Yes Ports & interfaces AC outlet types: Hard Wire 4-wire (3PH + G), Hard Wire 5-wire (3PH + N + G) SmartSlot: Yes SmartConnect port: No Battery Battery technology: Sealed Lead Acid (VRLA) Battery voltage: 480 V Design Form factor: Tower Product colour: White Display type: LCD International Protection (IP) code: IP20 Operational conditions Operating temperature (T-T): 0 - 40 °C Storage temperature (T-T): -15 - 40 °C Operating relative humidity (H-H): 0 - 95% Storage relative humidity (H-H): 0 - 95% Operating altitude: 0 - 3000 m Non-operating altitude: 0 - 3000 m Certificates Certification: CSA C22.2 NO. 107.3, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, IEC 60721-4-2 Level 2M2, UL 1778 5th edition Packaging content Management card included: Yes Quick installation guide: Yes Weight & dimensions Width: 521 mm Depth: 847 mm Height: 1485 mm Weight: 330 kg Packaging data Package width: 640 mm Package depth: 990 mm Package height: 1680 mm Package weight: 360 kg Logistics data Harmonized System (HS) code: 85078000 |
