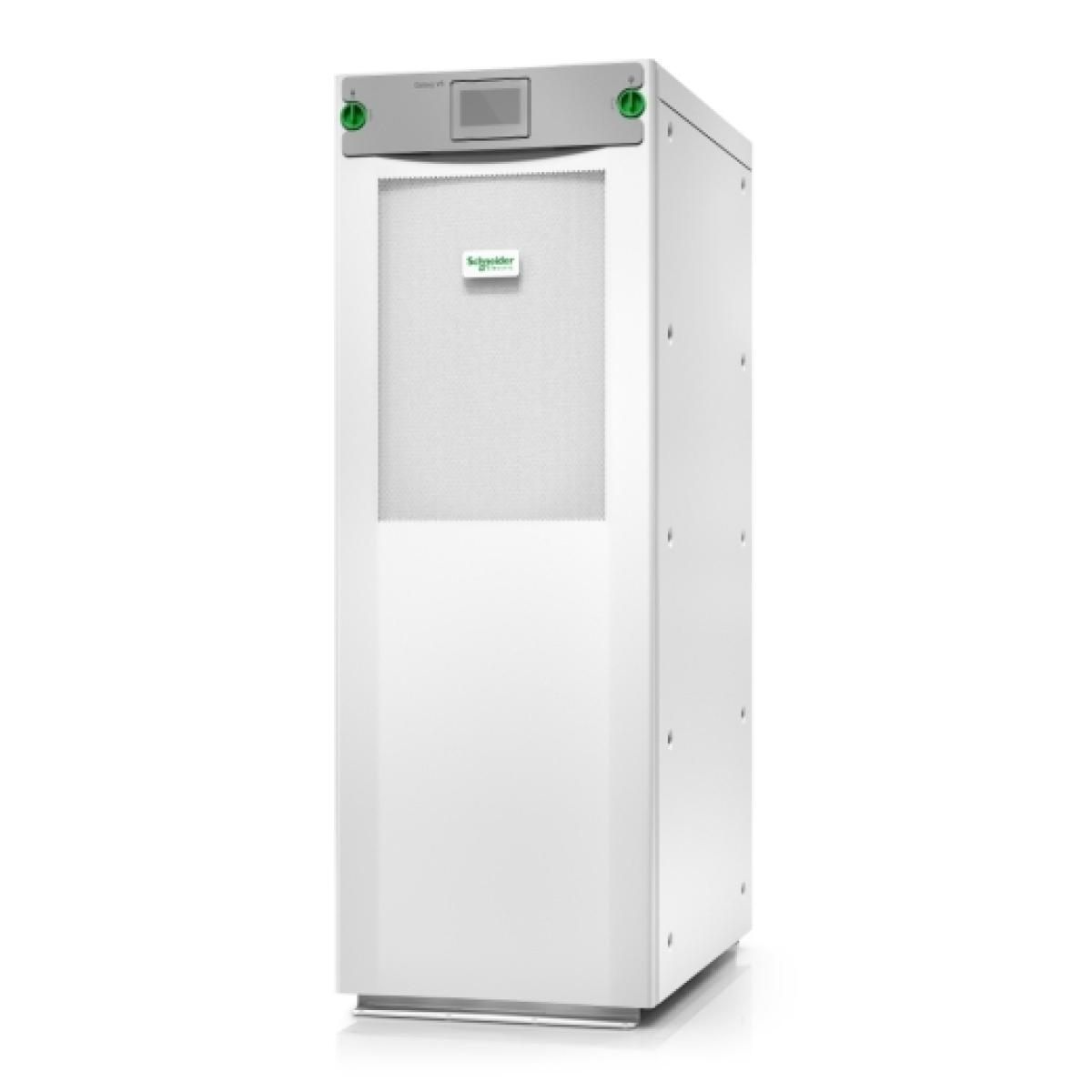

APC Galaxy VS UPS 100kW 400V with N+1 power module for external batteries, Start-up 5x8
£23462.48
APC Galaxy VS UPS 100kW 400V with N+1 power module for external batteries, Start-up 5x8, Double-conversion (Online), 100 kVA, 100000 W, Sine, 340 V, 460 V
out of stock
SKU: GVSUPS100KRHS
APC Galaxy VS UPS 100kW 400V with N+1 power module for external batteries, Start-up 5x8. UPS topology: Double-conversion (Online), Output power capacity: 100 kVA, Output power: 100000 W. Battery technology: Lithium-Ion (Li-Ion), Battery voltage: 576 V. Product colour: White, International Protection (IP) code: IP21. Compliance certificates: RoHS. Width: 521 mm, Depth: 847 mm, Height: 1485 mm
| Weight | 315.00kg |
|---|---|
| Brand | APC |
| Specifications | Features UPS topology: Double-conversion (Online) Output power capacity: 100 kVA Output power: 100000 W Waveform: Sine Input operation voltage (min): 340 V Input operation voltage (max): 460 V Input frequency: 40 - 70 Hz Output operation voltage (min): 400 V Output frequency: 50/60 Hz Maximum current: 180 A Heat dissipation: 11373 BTU/h Crest factor: 2.5:1 Input current Total Harmonic Distortion (THD): 3% Noise level: 68 dB Audible alarm(s): Yes Battery Battery technology: Lithium-Ion (Li-Ion) Battery voltage: 576 V Design Product colour: White International Protection (IP) code: IP21 Operational conditions Operating temperature (T-T): 0 - 40 °C Storage temperature (T-T): -25 - 55 °C Operating relative humidity (H-H): 0 - 95% Storage relative humidity (H-H): 10 - 80% Operating altitude: 0 - 1005.84 m Certificates Compliance certificates: RoHS Sustainability Sustainability compliance: Yes Weight & dimensions Width: 521 mm Depth: 847 mm Height: 1485 mm Weight: 290 kg Packaging data Package width: 640 mm Package depth: 990 mm Package height: 1680 mm Package weight: 315 kg Logistics data Warranty period: 1 year(s) |
