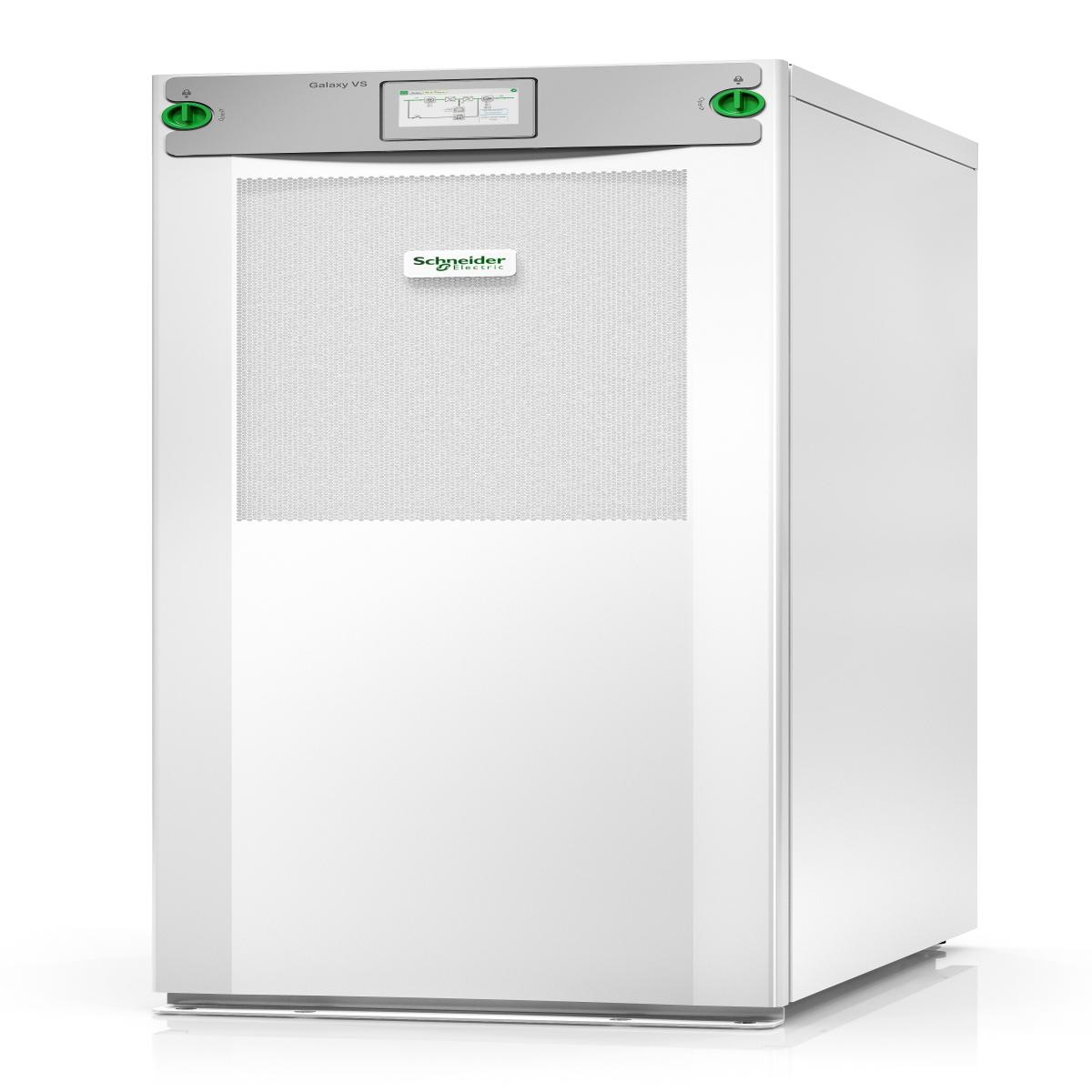

APC Galaxy VS UPS 100kW 400V for External Batteries, Start-up 5x8
£18779.43
APC Galaxy VS UPS 100kW 400V for External Batteries, Start-up 5x8, Double-conversion (Online), 100 kVA, 100000 W, Sine, 340 V, 460 V
out of stock
SKU: GVSUPS100KHS
APC Galaxy VS UPS 100kW 400V for External Batteries, Start-up 5x8. UPS topology: Double-conversion (Online), Output power capacity: 100 kVA, Output power: 100000 W. Battery technology: Lithium-Ion (Li-Ion). Form factor: Tower, Product colour: White, Display type: LCD. Compliance certificates: RoHS, Certification: CSA C22.2 NO. 107.3, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, FCC Part 15 Class A, IEC.... Width: 521 mm, Depth: 847 mm, Height: 1485 mm
| Weight | 275.00kg |
|---|---|
| Brand | APC |
| Specifications | Features UPS topology: Double-conversion (Online) Output power capacity: 100 kVA Output power: 100000 W Waveform: Sine Input operation voltage (min): 340 V Input operation voltage (max): 460 V Input frequency: 40/70 Hz Output operation voltage (min): 380 V Output operation voltage (max): 415 V Output frequency: 50/60 Hz Maximum current: 182 A Heat dissipation: 9499.4 BTU/h Number of input phases: 3 Number of output phases: 3 Efficiency: 96.8% Input power factor: 0.99 Crest factor: 2.5:1 Output voltage Total Harmonic Distortion (THD): 3% Noise level: 65 dB Audible alarm(s): Yes Ports & interfaces SmartSlot: Yes SmartConnect port: No Battery Battery technology: Lithium-Ion (Li-Ion) Design Form factor: Tower Product colour: White Display type: LCD LED indicators: Yes International Protection (IP) code: IP21 Operational conditions Operating temperature (T-T): 0 - 40 °C Storage temperature (T-T): -25 - 55 °C Operating relative humidity (H-H): 0 - 95% Storage relative humidity (H-H): 10 - 80% Operating altitude: 0 - 984.3 m Non-operating altitude: 0 - 15000 m Certificates Compliance certificates: RoHS Certification: CSA C22.2 NO. 107.3, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, FCC Part 15 Class A, IEC 60721-4-2 Level 2M2, UL 1778 5th edition Packaging content Management card included: Yes Weight & dimensions Width: 521 mm Depth: 847 mm Height: 1485 mm Weight: 250 kg Packaging data Package width: 640 mm Package depth: 990 mm Package height: 1680 mm Package weight: 275 kg Logistics data Harmonized System (HS) code: 85078000 Warranty period: 1 year(s) Other features Nominal output voltage: 400 V Nominal input voltage: 400 V |
