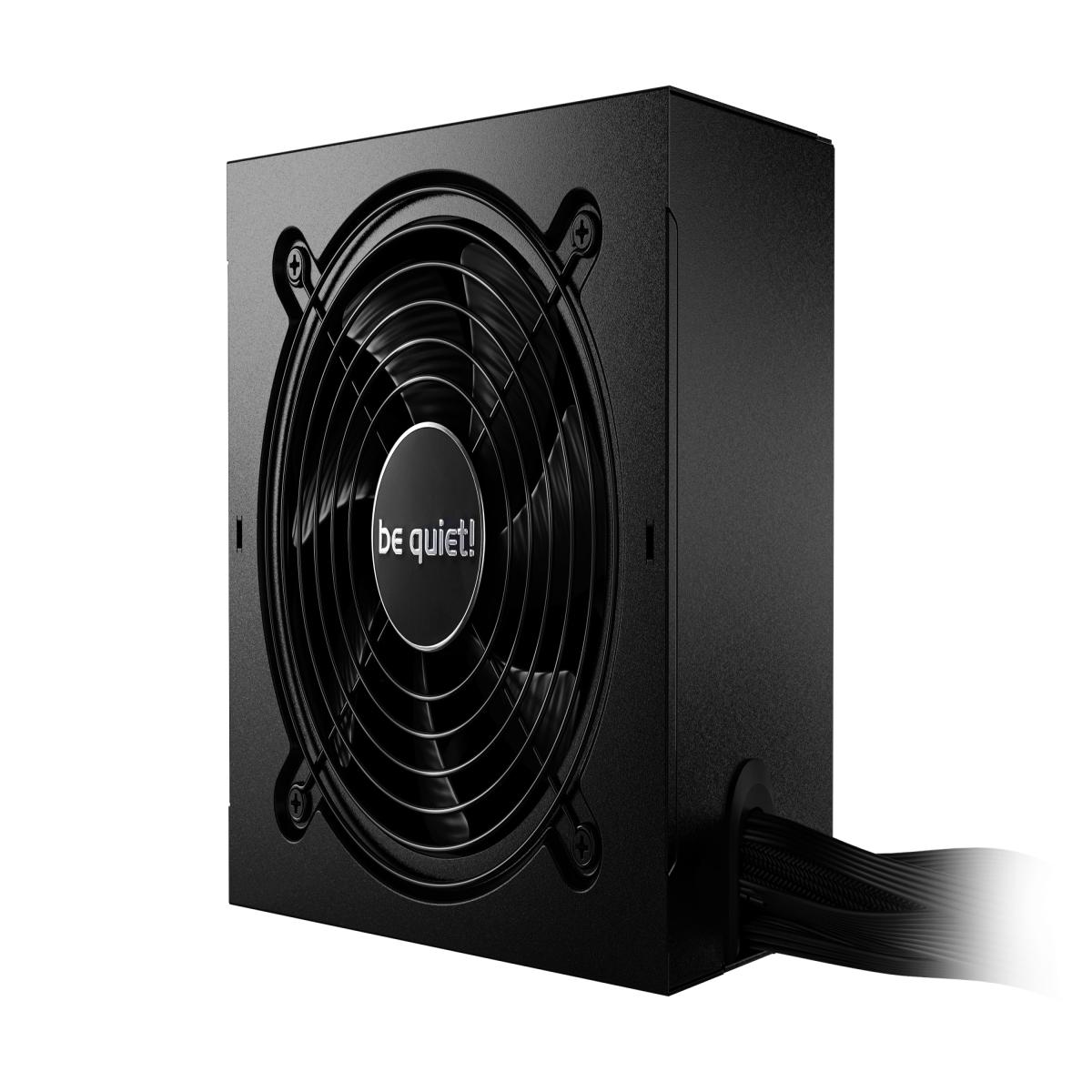

be quiet! System Power 10 power supply unit 850 W 20+4 pin ATX ATX Black
£73.98
out of stock
SKU: BN330
PROVEN RELIABILITY, QUIET OPERATIONSystem Power 10 850W has been built with price-conscious users in mind that do not want to dispense on reliability and quietness. Features such as LLC + SR + DC-to-DC topology and Dual-Rail operation underline the value System Power 10 850W offers even at entry-level. 80 PLUS® GOLD CERTIFICATIONVery high operating efficiencySystem Power 10 850W is certified 80 PLUS Gold with an efficiency rating of up to 93.4% – a truly outstanding level for this class of PSUs. The most compelling benefit is lower power consumption, lower costs, and cooler, quieter operation. Whether you are building a very quiet system or gaming system: System Power 10 850W is the price-conscious choice!EXCEPTIONALLY SILENT OPERATIONAchieved by a silence-optimized 120mm be quiet! fanThe silence-optimized 120mm be quiet! fan is thermally governed to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-class quiet functionality and the almost inaudible operation that be quiet! is famous for.HIGH-CLASS TECHNOLOGIESCompatibility for all systemsLLC and Synchronous Rectifier (SR) provide very stable operation and enhanced voltage regulation. The PSU is equipped with DC-to-DC conversion for tight voltage regulation even under heavy cross-loading conditions.HIGH PERFORMANCE FOR YOUR SYSTEMProven reliability for CPU and GPUSystem Power 10 850W provides stable and dependable power for CPU and GPU. It is equipped with 2 independent 12V-rails and supports several graphics cards with 4 PCI express connectors for GPU support.
E&OE
- 850 W 200 - 240 V 50 Hz
- Motherboard power connector: 20+4 pin ATX
- PC ATX 80 PLUS Gold
- Active 12 cm 0 - 2000 RPM
- Black
| Weight | 2.60kg |
|---|---|
| Brand | be quiet! |
| Total power | 850 W |
| Number of SATA power connectors | 6 |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | ATX |
| Specifications | Power Total power: 850 W AC input voltage: 200 - 240 V AC input frequency: 50 Hz Input current: 5 A Power factor: 0.97 Power Factor Correction (PFC) type: Active Combined power (+3.3V): 120 W Combined power (+12V): 849.6 W Combined power (+5V): 120 W Combined power (-12V): 3.6 W Combined power (+5Vsb): 15 W Max output current (+3.3V): 22 A Max output current (+12V1): 40 A Max output current (+12V2): 36 A Max output current (+5V): 22 A Max output current (-12V): 0.3 A Max output current (+5Vsb): 3 A Hold time: 17 ms Efficiency: 93.4% Power Good signal delay range: 100 - 150 ms Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage Ports & interfaces Motherboard power connector: 20+4 pin ATX Motherboard power cable length: 55 cm Number of SATA power connectors: 6 Number of PATA power connectors: 1 SATA power cable length: 450,550,570,670,690,790 mm Peripheral (Molex) power connectors (4-pin): 1 Peripheral (Molex) power cable length: 790 mm EPS power connector (8-pin): Yes PCI Express power connectors (6+2 pin): 4 PCI Express power cable length: 65 cm CPU power connector (4+4 pin): Yes CPU power cable length: 60 cm ATX power connector (20+4 pin): Yes PCI Express connector: Yes Cabling type: Non-Modular Performance 80 PLUS certification: 80 PLUS Gold Purpose: PC Power supply unit (PSU) form factor: ATX ATX version: 2.52 EPS version: 2.92 Noise level: 30.7 dB Bearing technology: Rifle Mean time between failures (MTBF): 100000 h Design Product colour: Black Cooling type: Active Fan diameter: 12 cm Number of fans: 1 fan(s) Fan speed: 0 - 2000 RPM Illumination: No On/off switch: Yes Operational conditions Operating temperature (T-T): 0 - 40 °C Storage temperature (T-T): -20 - 70 °C Operating relative humidity (H-H): 0 - 90% Storage relative humidity (H-H): 0 - 95% Certificates Compliance certificates: CCC, CE, Federal Communications Commission (FCC), RoHS, WEEE Certification: CB, TÜV, cRUus, cTUVus, RCM (Australia), BSMI, CU (Russia) Weight & dimensions Width: 160 mm Depth: 86 mm Height: 150 mm Weight: 2.14 kg Packaging data Manual: Yes Manual languages: German, English, Spanish, French, Polish, Russian Package width: 220 mm Package depth: 300 mm Package height: 100 mm Package weight: 2.6 kg Technical details Sustainability certificates: ENERGY STAR, ErP Logistics data Warranty period: 5 year(s) Country of origin: Germany Other features Screws included: Yes Noise level (silent mode, <30%): 10.3 dB Noise level (quiet mode, 50%): 10.4 dB Noise level (full-load mode, 100%): 30.7 dB |
