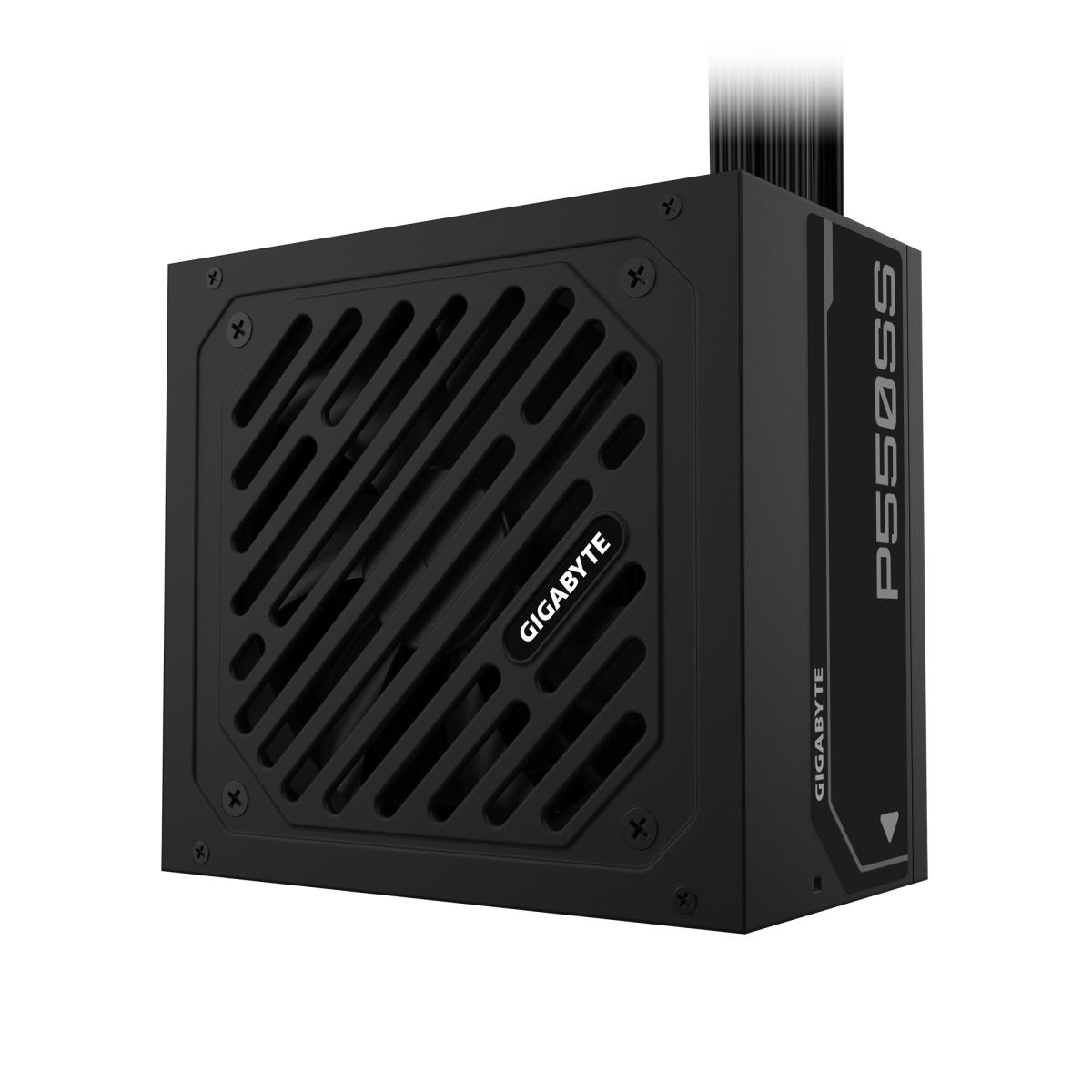

GIGABYTE P550SS power supply unit 550 W 20+4 pin ATX ATX Black
£43.71
GIGABYTE P550SS, 550 W, 155-240 V, 50/60 Hz, 6.3 A, Active, 100 W
out of stock
SKU: GP-P550SS
GIGABYTE P550SS. Total power: 550 W, AC input voltage: 155-240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
| Weight | 0.50kg |
|---|---|
| Brand | GIGABYTE |
| Total power | 550 W |
| Number of SATA power connectors | 5 |
| 80 PLUS certification | 80 PLUS Bronze |
| Power supply unit (PSU) form factor | ATX |
| Specifications | Power Total power: 550 W AC input voltage: 155-240 V AC input frequency: 50/60 Hz Input current: 6.3 A Power factor: 0.9 Power Factor Correction (PFC) type: Active Combined power (+3.3V): 100 W Combined power (+12V): 549.6 W Combined power (+5V): 200 W Combined power (-12V): 3.6 W Combined power (+5Vsb): 15 W Max output current (+3.3V): 20 A Max output current (+12V): 45.8 A Max output current (+5V): 20 A Max output current (-12V): 0.3 A Max output current (+5Vsb): 3 A Hold time: 16 ms Efficiency: 90% Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage Ports & interfaces Motherboard power connector: 20+4 pin ATX Motherboard power cable length: 60 cm Number of SATA power connectors: 5 SATA power cable length: 500 mm Peripheral (Molex) power connectors (4-pin): 3 Peripheral (Molex) power cable length: 500 mm PCI Express power connectors (6+2 pin): 2 PCI Express power cable length: 50 cm CPU power connector (4+4 pin): Yes CPU power cable length: 60 cm ATX power connector (20+4 pin): Yes Floppy drive power connector: 1 Floppy disk drive connector: Yes PCI Express connector: Yes Cabling type: Non-Modular Performance 80 PLUS certification: 80 PLUS Bronze Purpose: PC Power supply unit (PSU) form factor: ATX ATX version: 3.0 Bearing technology: HDB Mean time between failures (MTBF): 100000 h Design Product colour: Black Cooling type: Active Fan diameter: 12 cm Number of fans: 1 fan(s) Fan location: Top On/off switch: Yes Weight & dimensions Width: 150 mm Depth: 140 mm Height: 86 mm Logistics data Harmonized System (HS) code: 84733020 |
