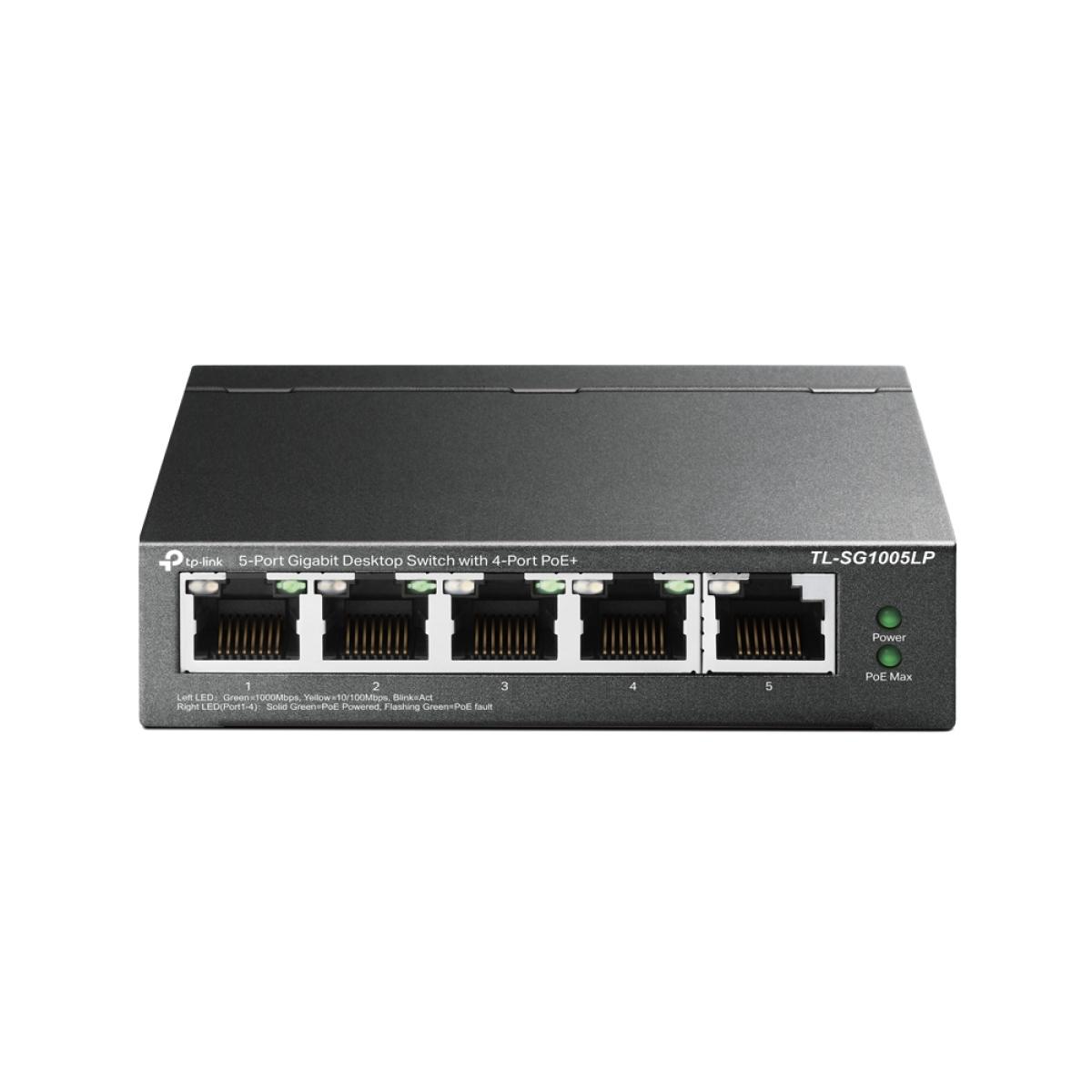

TP-Link TL-SG1005LP network switch
£38.33
4 in stock
SKU: TL-SG1005LP
Professional 5-Port Gigabit Switch with 4 PoE+ PortsPlug and Play, with PoE power supply which meets the needs of diverse devices.Dedicated 4-Port PoE+ Switch (40 W Budget) for Numerous ApplicationsCompliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 40 W PoE power budget for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.Intelligent Power ManagementWhen total power consumption exceeds 40 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.Advanced Functions for Higher PerformanceAdministrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.Durable Metal CasingThe interior components of TL-SG1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005LP delivers switching performance you can depend on.
E&OE
- Unmanaged
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 5
- Cat3, Cat4, Cat5, Cat5e, Cat6 10BASE-T, 100BASE-TX, 1000BASE-T
- MAC address table: 2000 entries Switching capacity: 10 Gbit/s
- DC/PoE Power supply included Power over Ethernet (PoE)
| Weight | 0.73kg |
|---|---|
| Brand | TP-Link |
| Specifications | Management features Switch type: Unmanaged Quality of Service (QoS) support: Yes Ports & interfaces Basic switching RJ-45 Ethernet ports quantity: 5 Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000) Gigabit Ethernet (copper) ports quantity: 5 Network Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x 10G support: No Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6 Flow control support: Yes Auto MDI/MDI-X: Yes Auto-negotiation: Yes MAC address auto-learning supported: Yes MAC address auto-aging supported: Yes Data transmission Switching capacity: 10 Gbit/s Forwarding rate: 7.44 Mpps MAC address table: 2000 entries Store-and-forward: Yes Jumbo frames support: Yes Jumbo frames: 16000 Security IGMP snooping: Yes Design Rack mounting: No Stackable: No Product colour: Black LED indicators: Yes Wall mountable: Yes Performance Maximum cable length: 100 m Fanless: Yes Power Power source: DC/PoE Power supply included: Yes AC input voltage: 100 - 240 V AC input frequency: 50/60 Hz DC input voltage: 53.5 V Input current: 0.81 A Power consumption (max): 47.5 W Power over Ethernet (PoE) Power over Ethernet (PoE): Yes Power over Ethernet plus (PoE+) ports quantity: 4 Total Power over Ethernet (PoE) budget: 40 W Operational conditions Operating temperature (T-T): 0 - 40 °C Storage temperature (T-T): -40 - 70 °C Operating relative humidity (H-H): 10 - 90% Storage relative humidity (H-H): 5 - 90% Heat dissipation: 161.98 BTU/h Weight & dimensions Width: 99.8 mm Depth: 98 mm Height: 25 mm Packaging content User guide: Yes Packaging data Package type: Box Package width: 131 mm Package depth: 196 mm Package height: 121 mm Package weight: 730 g Sustainability Sustainability compliance: Yes Certificates Compliance certificates: CE, Federal Communications Commission (FCC), RoHS Certification: FCC, CE, RoHS Logistics data Harmonized System (HS) code: 85176990 |
