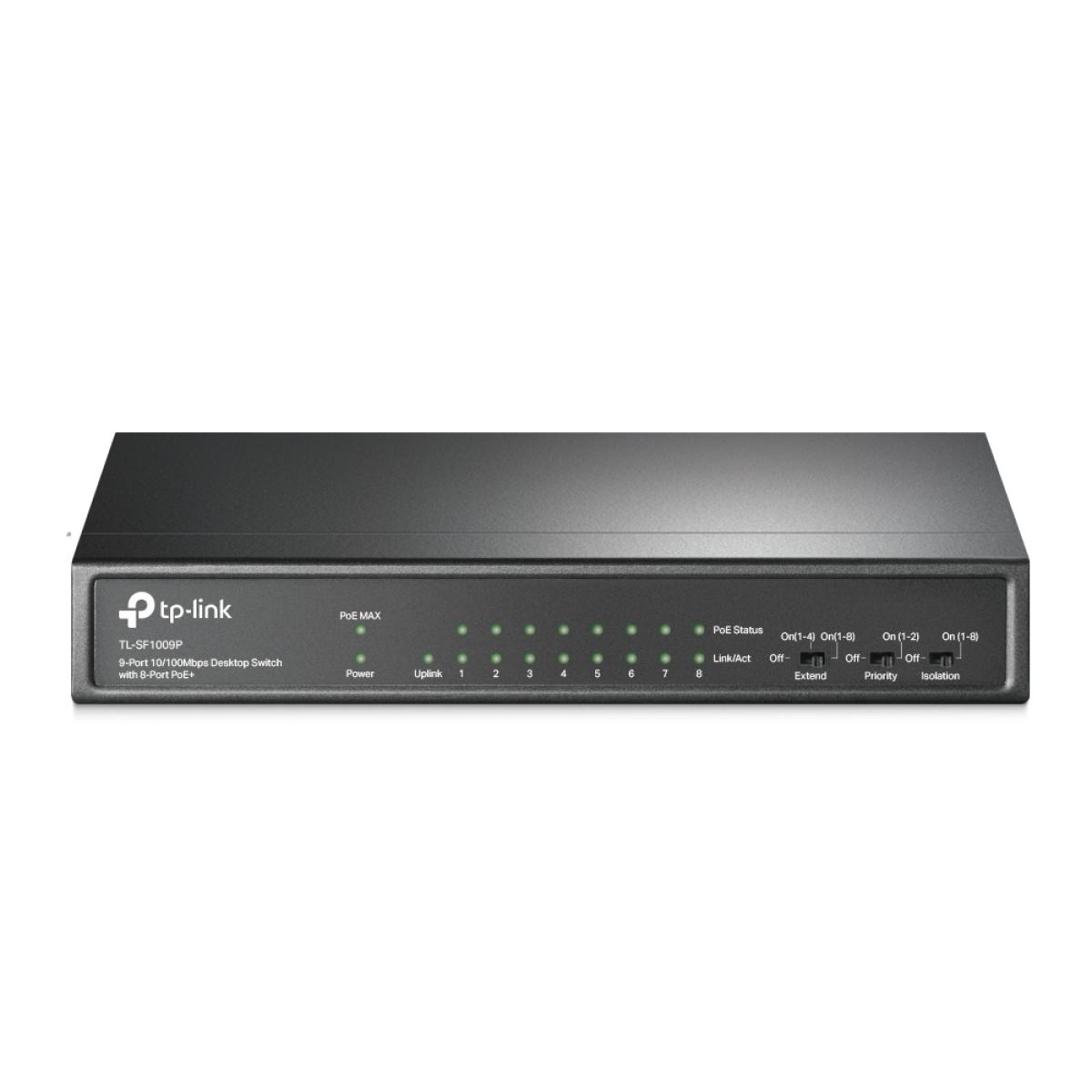

TP-Link 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+
£50.9
out of stock
SKU: TL-SF1009P
Professional 9-Port Unmanaged Switch with 8 PoE+ PortsPlug and Play, with PoE Transmission for Surveillance up to 250 mProfessional 9-Port Switch with 8-Port PoE+ (65 W Budget) for Numerous ApplicationsCompliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 65 W PoE power budget* for the 8× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.Ideal for IP Surveillance—Up to 250 m TransmissionsWith extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.Ideal for IP Surveillance—Higher Performance and SecurityPriority Mode and Isolation Mode make surveillance smoother and safer.Intelligent Power ManagementWhen total power consumption exceeds 65 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.Durable Metal CasingThe interior components of TL-SF1009P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1009P delivers switching performance you can depend on.
E&OE
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity: 9
- Cat3, Cat4, Cat5, Cat5e 10BASE-T, 100BASE-TX
- MAC address table: 2000 entries Switching capacity: 1.6 Gbit/s
- DC/PoE Power over Ethernet (PoE)
| Weight | 0.98kg |
|---|---|
| Brand | TP-Link |
| Specifications | Management features Switch type: Unmanaged Ports & interfaces Basic switching RJ-45 Ethernet ports quantity: 9 Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100) Fast Ethernet (copper) ports quantity: 9 Power connector: DC-in jack Network Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x 10G support: No Copper ethernet cabling technology: 10BASE-T, 100BASE-TX Cable types supported: Cat3, Cat4, Cat5, Cat5e Full duplex: Yes Half duplex: Yes Flow control support: Yes Auto MDI/MDI-X: Yes Auto-negotiation: Yes MAC address auto-learning supported: Yes MAC address auto-aging supported: Yes Data transmission Switching capacity: 1.6 Gbit/s Forwarding rate: 1.3392 Mpps MAC address table: 2000 entries Store-and-forward: Yes Design Rack mounting: No Stackable: No Product colour: Black Housing material: Metal LED indicators: Activity, Link, PoE, Power Wall mountable: Yes Performance Fanless: Yes Power Power source: DC/PoE Power supply included: No AC input voltage: 220 V AC input frequency: 50 Hz DC input voltage: 53.5 V Input current: 1.31 A Power consumption (max): 77.08 W Power over Ethernet (PoE) Power over Ethernet (PoE): Yes Power over Ethernet plus (PoE+) ports quantity: 8 Power over Ethernet (PoE) power per port: 30 W Total Power over Ethernet (PoE) budget: 65 W Operational conditions Operating temperature (T-T): 0 - 40 °C Storage temperature (T-T): -40 - 70 °C Operating relative humidity (H-H): 10 - 90% Storage relative humidity (H-H): 5 - 90% Heat dissipation: 262.84 BTU/h Weight & dimensions Width: 171 mm Depth: 98 mm Height: 27 mm Packaging content User guide: Yes Packaging data AC adapter included: Yes Package type: Box Package width: 223 mm Package depth: 280 mm Package height: 68 mm Package weight: 980 g Sustainability Sustainability compliance: Yes Certificates Compliance certificates: Federal Communications Commission (FCC), CE, RoHS Certification: FCC, CE, RoHS Logistics data Harmonized System (HS) code: 85176990 |
