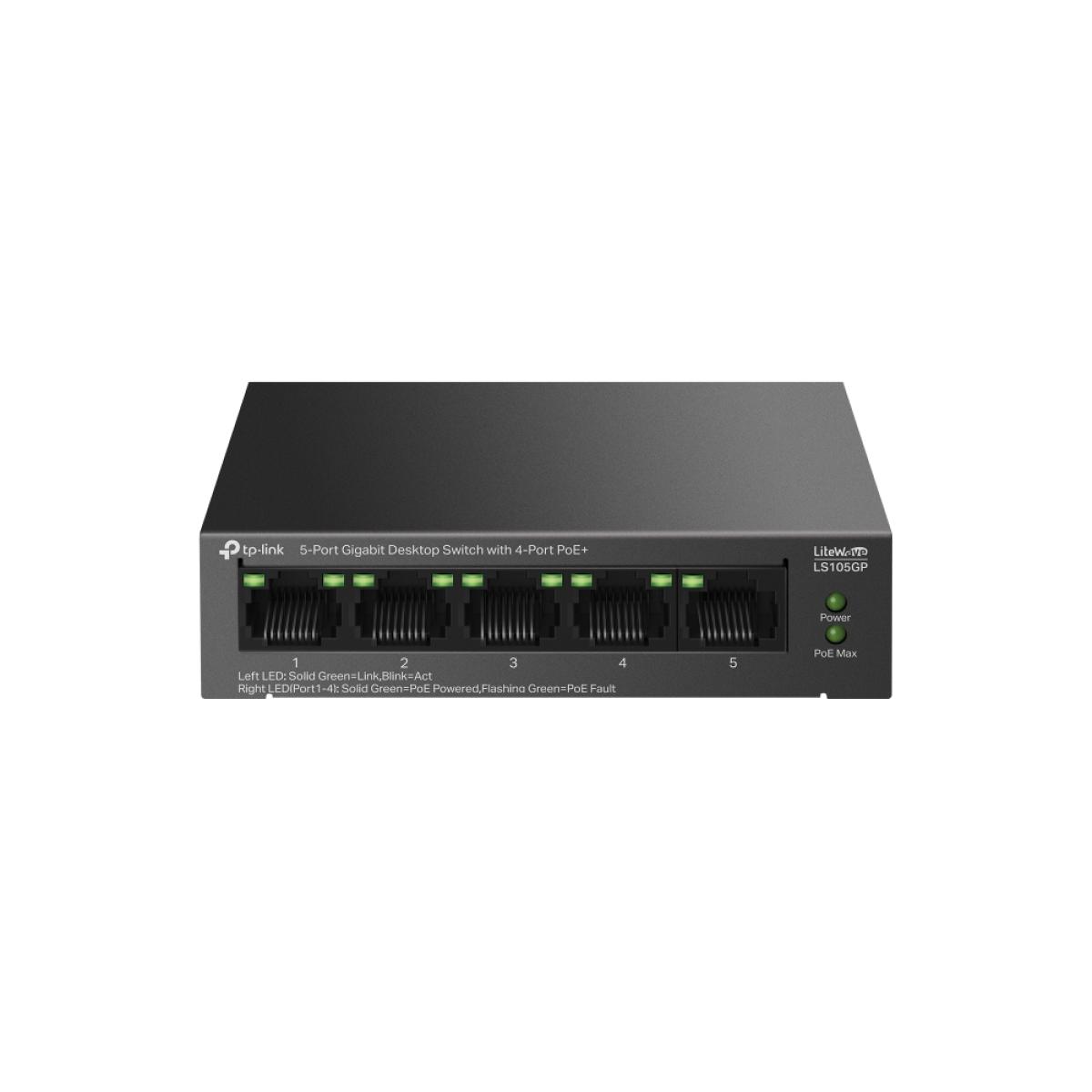

TP-Link LiteWave 5-Port Gigabit Desktop Switch with 4-Port PoE+
£38.39
TP-Link LiteWave 5-Port Gigabit Desktop Switch with 4-Port PoE+, Unmanaged, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)
out of stock
SKU: LS105GP
OverviewThe TP-Link LiteWave Series PoE Switches require no configuration and provide PoE (Power over Ethernet) ports. They can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
E&OE
- Unmanaged
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 5
- Cat3, Cat5e, Cat4, Cat5
- MAC address table: 2000 entries Switching capacity: 10 Gbit/s
- DC/PoE Power supply included Power over Ethernet (PoE)
| Weight | 0.30kg |
|---|---|
| Brand | TP-Link |
| Specifications | Management features Switch type: Unmanaged Quality of Service (QoS) support: Yes Ports & interfaces Basic switching RJ-45 Ethernet ports quantity: 5 Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000) Network Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x 10G support: No Cable types supported: Cat3, Cat5e, Cat4, Cat5 Flow control support: Yes Auto MDI/MDI-X: Yes Auto-negotiation: Yes MAC address auto-learning supported: Yes MAC address auto-aging supported: Yes Data transmission Switching capacity: 10 Gbit/s Forwarding rate: 7.44 Mpps MAC address table: 2000 entries Store-and-forward: Yes Jumbo frames: 16000 Security IGMP snooping: Yes Design Product colour: Black LED indicators: Yes Power Power source: DC/PoE Power supply included: Yes AC input voltage: 220 V AC input frequency: 50 Hz DC input voltage: 53.5 V Power consumption (max): 74.46 W Power over Ethernet (PoE) Power over Ethernet (PoE): Yes Power over Ethernet (PoE) ports quantity: 4 Power over Ethernet (PoE) power per port: 30 W Total Power over Ethernet (PoE) budget: 65 W Operational conditions Operating temperature (T-T): 0 - 40 °C Storage temperature (T-T): -40 - 70 °C Operating relative humidity (H-H): 10 - 90% Storage relative humidity (H-H): 5 - 90% Heat dissipation: 253.16 BTU/h Weight & dimensions Width: 99.8 mm Depth: 98 mm Height: 25 mm Packaging content User guide: Yes Packaging data Package type: Box Certificates Certification: CE, FCC, RoHS |
