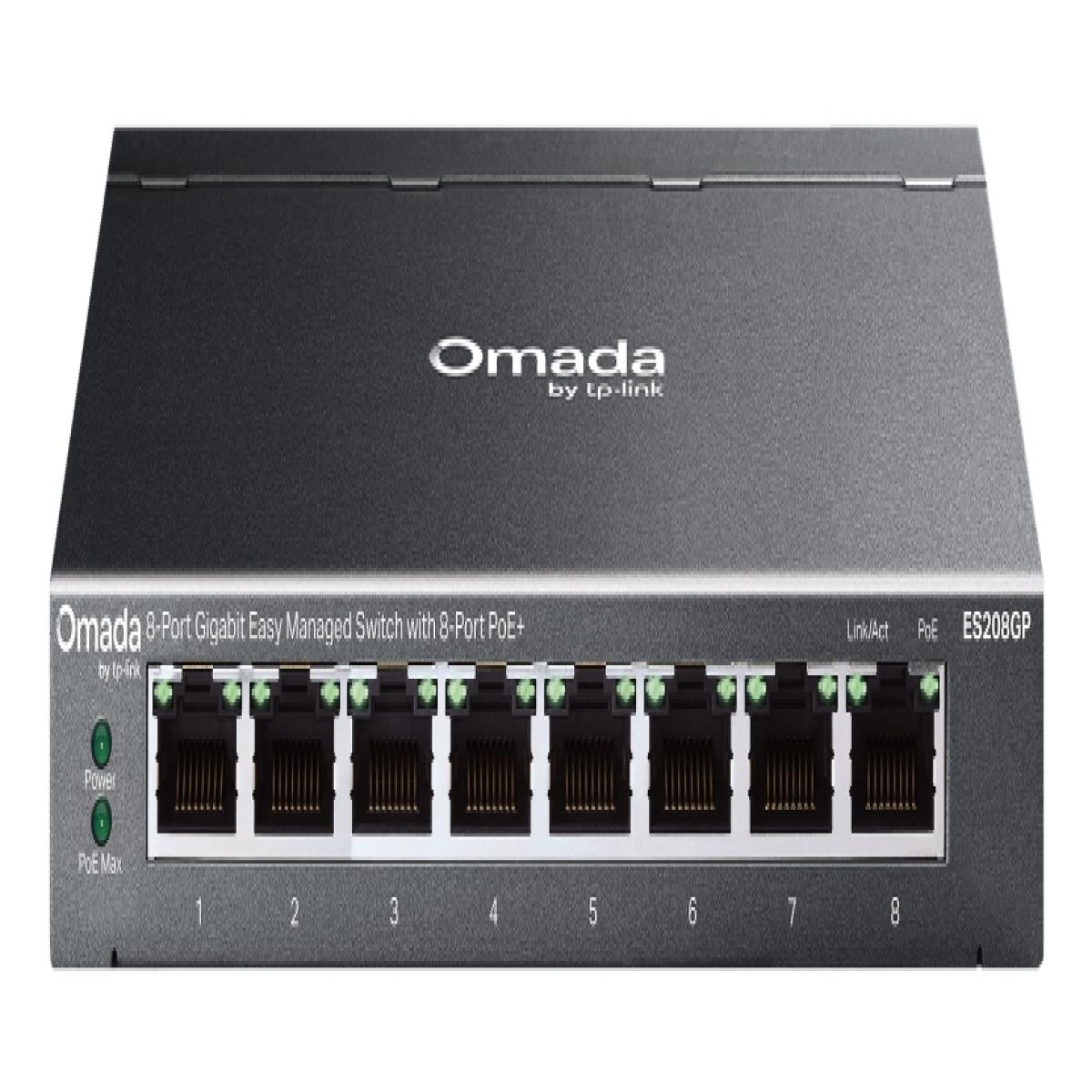

TP-Link Omada ES208GP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) DIN rail Black
£70.61
TP-Link Omada ES208GP, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, DIN rail
out of stock
SKU: ES208GP
E&OE
- Managed L2 Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 8
- MAC address table: 8000 entries Switching capacity: 16 Gbit/s
- DIN rail Rack mounting
- DC Power over Ethernet (PoE)
| Weight | 0.74kg |
|---|---|
| Brand | TP-Link |
| Specifications | Management features Switch type: Managed Switch layer: L2 Quality of Service (QoS) support: Yes Web-based management: Yes Cloud-managed: Yes Ports & interfaces Basic switching RJ-45 Ethernet ports quantity: 8 Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000) Network Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt 10G support: No Port mirroring: Yes Flow control support: Yes Link aggregation: Yes Broadcast storm control: Yes Auto MDI/MDI-X: Yes Ethernet LAN data rates: 10,100,1000 Mbit/s Auto-negotiation: Yes VLAN support: Yes Virtual LAN features: MTU VLAN, Port-based VLAN, Tagged VLAN Number of VLANs: 4000 Optical fiber Transmission distance (max): 0.25 km Data transmission Switching capacity: 16 Gbit/s Forwarding rate: 11.904 Mpps MAC address table: 8000 entries Store-and-forward: Yes Jumbo frames support: Yes Jumbo frames: 15000 Packet buffer memory: 0.5 MB Security DHCP features: DHCP client IGMP snooping: Yes Loop protection: Yes Multicast features Multicast support: Yes Design Rack mounting: Yes Form factor: DIN rail Product colour: Black LED indicators: Yes Power Power source: DC DC input voltage: 53 V Input current: 1.31 A Power over Ethernet (PoE) Power over Ethernet (PoE): Yes Power over Ethernet (PoE) type supported: PoE+ Power over Ethernet plus (PoE+) ports quantity: 8 Total Power over Ethernet (PoE) budget: 64 W Operational conditions Operating temperature (T-T): 0 - 40 °C Storage temperature (T-T): -40 - 70 °C Operating relative humidity (H-H): 10 - 90% Storage relative humidity (H-H): 5 - 90% Weight & dimensions Width: 158 mm Depth: 100.7 mm Height: 25.4 mm Packaging content Cables included: Power Quick start guide: Yes Certificates Compliance certificates: CE, Federal Communications Commission (FCC), RoHS |
