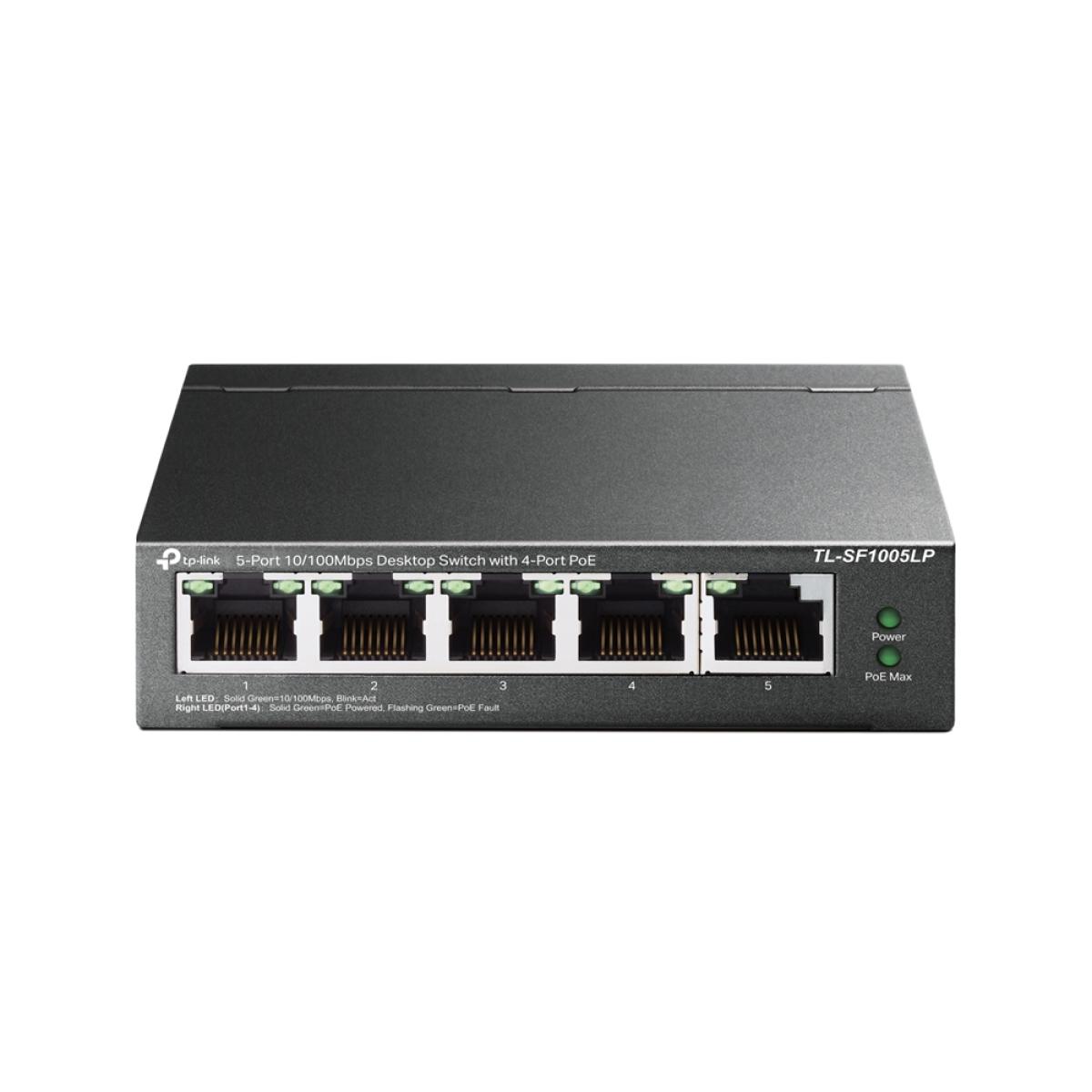

TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE
£33.62
out of stock
SKU: TL-SF1005LP
Professional Fast Ethernet Switch with 4 PoE PortsPlug and Play, with PoE Transmission for Surveillance up to 250 mTL-SF1005LPDedicated 4-Port PoE Switch (41 W Budget) for Numerous ApplicationsCompliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.Ideal for IP Surveillance—Up to 250 m TransmissionsWith extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.Priority VideoQuality GuaranteedQuality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.Intelligent Power ManagementWhen total power consumption exceeds 41 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.Durable Metal CasingThe interior components of TL-SF1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1005LP delivers switching performance you can depend on.
E&OE
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity: 5
- Cat3, Cat4, Cat5, Cat5e 10BASE-T, 100BASE-TX
- MAC address table: 2000 entries Switching capacity: 1 Gbit/s
- DC/PoE Power supply included Power over Ethernet (PoE)
| Weight | 0.74kg |
|---|---|
| Brand | TP-Link |
| Specifications | Management features Switch type: Unmanaged Ports & interfaces Basic switching RJ-45 Ethernet ports quantity: 5 Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100) Network Networking standards: IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x 10G support: No Copper ethernet cabling technology: 10BASE-T, 100BASE-TX Cable types supported: Cat3, Cat4, Cat5, Cat5e Full duplex: Yes Half duplex: Yes Flow control support: Yes Auto MDI/MDI-X: Yes Auto-negotiation: Yes MAC address auto-aging supported: Yes Data transmission Switching capacity: 1 Gbit/s Forwarding rate: 0.744 Mpps MAC address table: 2000 entries Store-and-forward: Yes Jumbo frames support: Yes Jumbo frames: 2000 Design Rack mounting: No Product colour: Black LED indicators: Yes Performance Fanless: Yes Power Power source: DC/PoE Power supply included: Yes AC input voltage: 220 V AC input frequency: 50 Hz Input current: 0.81 A Input voltage: 53.5 V Power consumption (max): 47 W Power over Ethernet (PoE) Power over Ethernet (PoE): Yes Power over Ethernet (PoE) ports quantity: 4 Total Power over Ethernet (PoE) budget: 41 W Operational conditions Operating temperature (T-T): 0 - 40 °C Storage temperature (T-T): -40 - 70 °C Operating relative humidity (H-H): 10 - 90% Storage relative humidity (H-H): 5 - 90% Heat dissipation: 160.27 BTU/h Weight & dimensions Width: 100 mm Depth: 98 mm Height: 25 mm Packaging content User guide: Yes Packaging data AC adapter included: Yes Package width: 131 mm Package depth: 196 mm Package height: 121 mm Package weight: 740 g Sustainability Sustainability compliance: Yes Certificates Compliance certificates: CE, Federal Communications Commission (FCC), RoHS Logistics data Harmonized System (HS) code: 85176990 |
