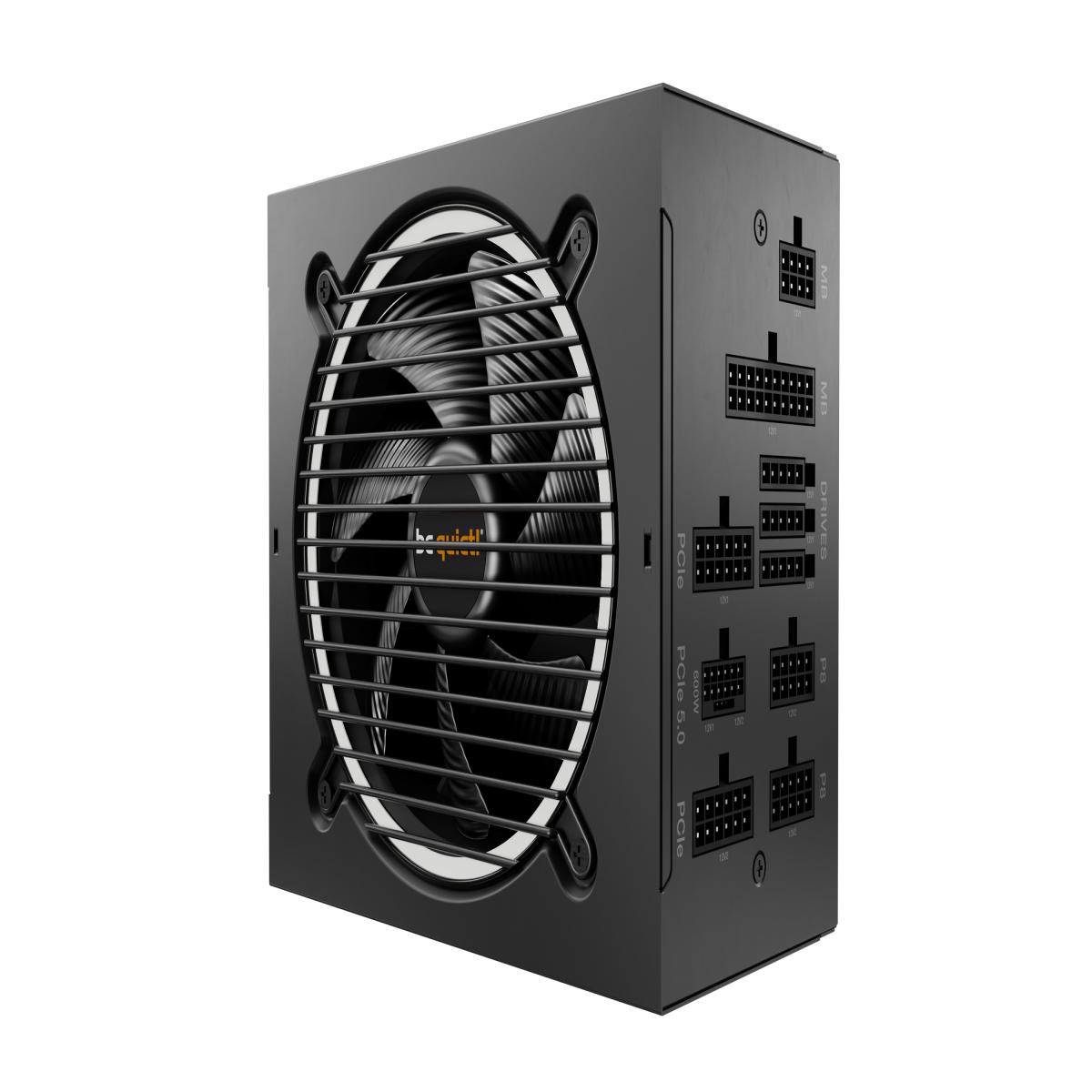

be quiet! Pure Power 12 M power supply unit 1000 W 20+4 pin ATX ATX Black
£122.04
be quiet! Pure Power 12 M, 1000 W, 100 - 240 V, 1050 W, 50 - 60 Hz, 12 / 6 A, Active
out of stock
SKU: BN345
be quiet! Pure Power 12 M. Total power: 1000 W, AC input voltage: 100 - 240 V, Peak power: 1050 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 500,600,650,800,950 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: PATA, PCIe, Peripheral (Molex), SATA
| Weight | 0.06kg |
|---|---|
| Brand | be quiet! |
| Total power | 1000 W |
| Number of SATA power connectors | 6 |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | ATX |
| Specifications | Power Total power: 1000 W Peak power: 1050 W AC input voltage: 100 - 240 V AC input frequency: 50 - 60 Hz Input current: 12 / 6 A Power factor: 0.98 Power Factor Correction (PFC) type: Active Combined power (+3.3V): 120 W Combined power (+12V): 1000 W Combined power (+5V): 120 W Combined power (-12V): 3.6 W Combined power (+5Vsb): 15 W Max output current (+3.3V): 22 A Max output current (+12V): 83.4 A Max output current (+12V1): 46 A Max output current (+12V2): 42 A Max output current (+5V): 22 A Max output current (-12V): 0.3 A Max output current (+5Vsb): 3 A Efficiency: 93.2% Power Good signal delay range: 100 - 150 ms Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit Ports & interfaces Motherboard power connector: 20+4 pin ATX Motherboard power cable length: 55 cm Number of SATA power connectors: 6 Number of PATA power connectors: 2 SATA power cable length: 500,600,650,800,950 mm Peripheral (Molex) power connectors (4-pin): 1 Peripheral (Molex) power cable length: 550 mm EPS power connector (8-pin): Yes EPS power connector (4+4 pin): Yes PCI Express power connectors (6+2 pin): 4 PCI Express power cable length: 65 cm ATX power connector (20+4 pin): Yes PCI Express connector: Yes Cabling type: Fully-Modular Performance 80 PLUS certification: 80 PLUS Gold Purpose: PC Power supply unit (PSU) form factor: ATX ATX version: 3.1 EPS version: 2.92 Noise level: 31.7 dB Mean time between failures (MTBF): 100000 h Design Product colour: Black Cooling type: Active Fan diameter: 12 cm Number of fans: 1 fan(s) Fan speed: 0 - 2000 RPM Fan location: Top Illumination: No On/off switch: Yes Operational conditions Operating temperature (T-T): 0 - 40 °C Packaging content Cables included: PATA, PCIe, Peripheral (Molex), SATA Certificates Compliance certificates: RoHS Weight & dimensions Width: 160 mm Depth: 150 mm Height: 86 mm Packaging data Package type: Box Technical details Sustainability compliance: Yes Sustainability certificates: ENERGY STAR, ErP Logistics data Warranty period: 10 year(s) Other features Screws included: Yes Number of screws: 5 Cable ties included: Yes Noise level (silent mode, <30%): 9.3 dB Noise level (quiet mode, 50%): 9.6 dB Noise level (full-load mode, 100%): 31.7 dB |
