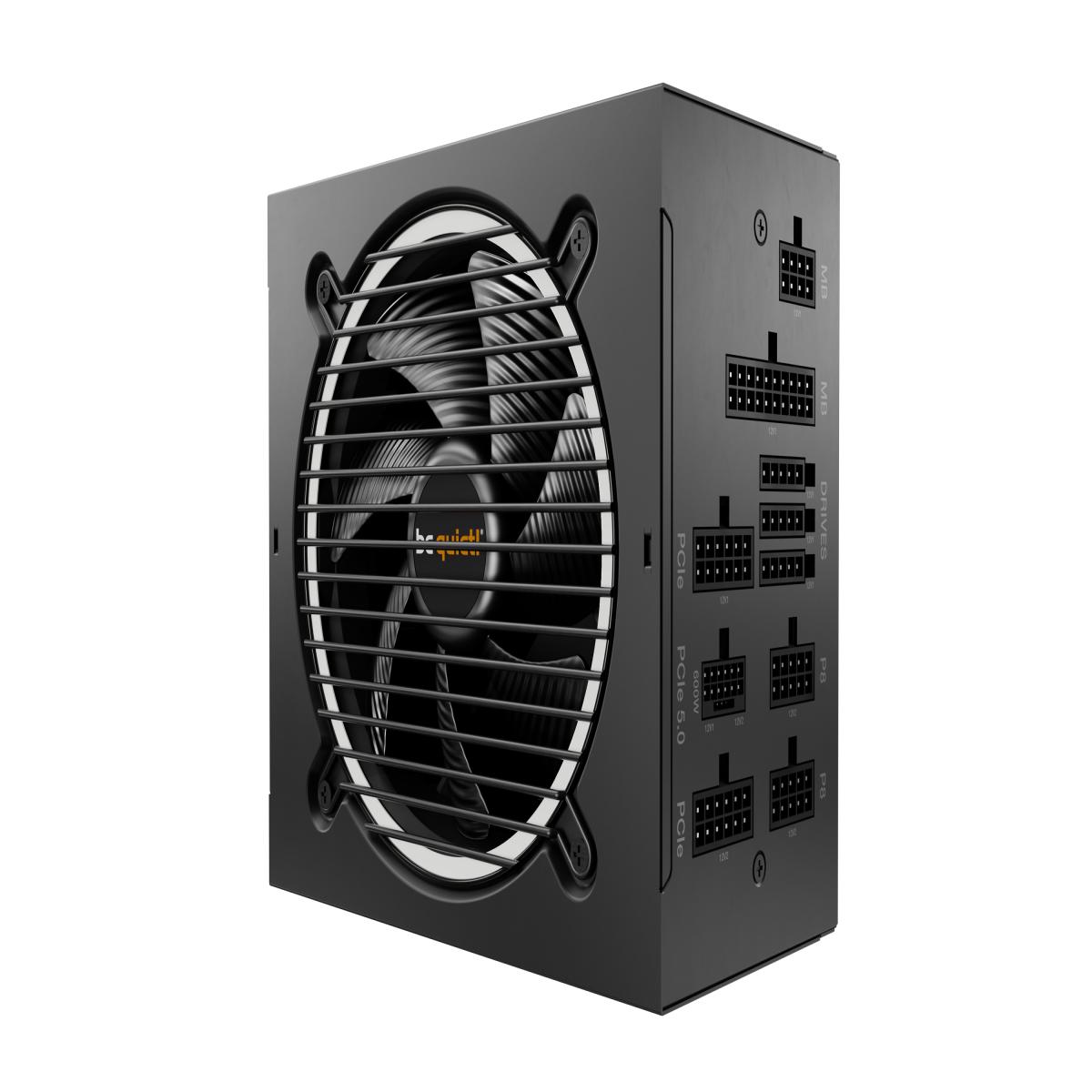

be quiet! Pure Power 12 M power supply unit 850 W 20+4 pin ATX ATX Black
£103.44
out of stock
SKU: BN344
EXCEPTIONAL QUIET, SUPERIOR FEATURESPure Power 12 M 850W is ATX 3.1 compliant and PCIe 5.0 compatible and offers peerless dependability with best-in-class features. Pure Power 12 M 850W offers the best combination of features with outstanding compatibility.80 PLUS® GOLD CERTIFIEDVery high operating efficiencyPure Power 12 M 850W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 93.2%. The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 12 M 850W is always the correct choice for quiet systems and gaming PCs!FUTURE-PROOF YOUR SYSTEMFulfills all ATX 3.1 specificationsPure Power 12 M 850W is an ATX 3.1 PSU and comes with both native integration of the 12V-2x6 connector for next-generation PCIe 5.1 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for present high-end systems and the ones to come.THE NEW STANDARD OF POWERFor massive transient loadsPure Power 12 M offers 850W of continuous power with 2 independent 12V rails. Even if the graphics card demands excessive power for a short time: Pure Power 12 M 850W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.UNPRECEDENTED SILENT OPERATIONAchieved with a silence-optimized be quiet! fanThe exceptionally silent 120mm be quiet! fan is temperature-controlled to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-classquiet functionality. HIGH-CLASS TECHNOLOGIESRock-solid stabilityWith its LLC topology Pure Power 12 M 850W provides a best-in-class voltage regulation and efficiency. That makes it perfect for building or upgrading very quiet systems as well as gaming and media creation PCs.MODULAR CABLESUtmost convenience and compatibilityThanks to their modularity, all unnecessary cables in the system are left out. Pure Power 12 M 850W simplifies cable management and routing for a tidy-looking system. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures inside the case.
E&OE
- 850 W 100 - 240 V 50 - 60 Hz
- Motherboard power connector: 20+4 pin ATX
- PC ATX 80 PLUS Gold
- Active 12 cm
- Black
| Weight | 0.00kg |
|---|---|
| Brand | be quiet! |
| Total power | 850 W |
| Number of SATA power connectors | 6 |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | ATX |
| Specifications | Power Total power: 850 W Peak power: 900 W AC input voltage: 100 - 240 V AC input frequency: 50 - 60 Hz Input current: 12 / 6 A Power factor: 0.98 Power Factor Correction (PFC) type: Active Combined power (+3.3V): 120 W Combined power (+12V): 850 W Combined power (+5V): 120 W Combined power (-12V): 3.6 W Combined power (+5Vsb): 15 W Max output current (+3.3V): 22 A Max output current (+12V): 70.9 A Max output current (+12V1): 40 A Max output current (+12V2): 36 A Max output current (+5V): 22 A Max output current (-12V): 0.3 A Max output current (+5Vsb): 3 A Efficiency: 93.2% Power Good signal delay range: 100 - 150 ms Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit Ports & interfaces Motherboard power connector: 20+4 pin ATX Motherboard power cable length: 55 cm Number of SATA power connectors: 6 Number of PATA power connectors: 2 SATA power cable length: 500,600,650,800,950 mm Peripheral (Molex) power connectors (4-pin): 1 Peripheral (Molex) power cable length: 550 mm EPS power connector (8-pin): Yes EPS power connector (4+4 pin): Yes PCI Express power connectors (6+2 pin): 4 ATX power connector (20+4 pin): Yes PCI Express connector: Yes Cabling type: Fully-Modular Performance 80 PLUS certification: 80 PLUS Gold Purpose: PC Power supply unit (PSU) form factor: ATX ATX version: 3.1 EPS version: 2.92 Noise level: 25.7 dB Mean time between failures (MTBF): 100000 h Design Product colour: Black Cooling type: Active Fan diameter: 12 cm Number of fans: 1 fan(s) Fan location: Top Illumination: No On/off switch: Yes Operational conditions Operating temperature (T-T): 0 - 40 °C Packaging content Cables included: PATA, PCIe, Peripheral (Molex), SATA Certificates Compliance certificates: RoHS Weight & dimensions Width: 160 mm Depth: 150 mm Height: 86 mm Packaging data Package type: Box Technical details Sustainability compliance: Yes Sustainability certificates: ENERGY STAR, ErP Logistics data Warranty period: 10 year(s) Other features Screws included: Yes Number of screws: 5 Cable ties included: Yes Noise level (silent mode, <30%): 9.4 dB Noise level (quiet mode, 50%): 9.5 dB Noise level (full-load mode, 100%): 25.7 dB |
