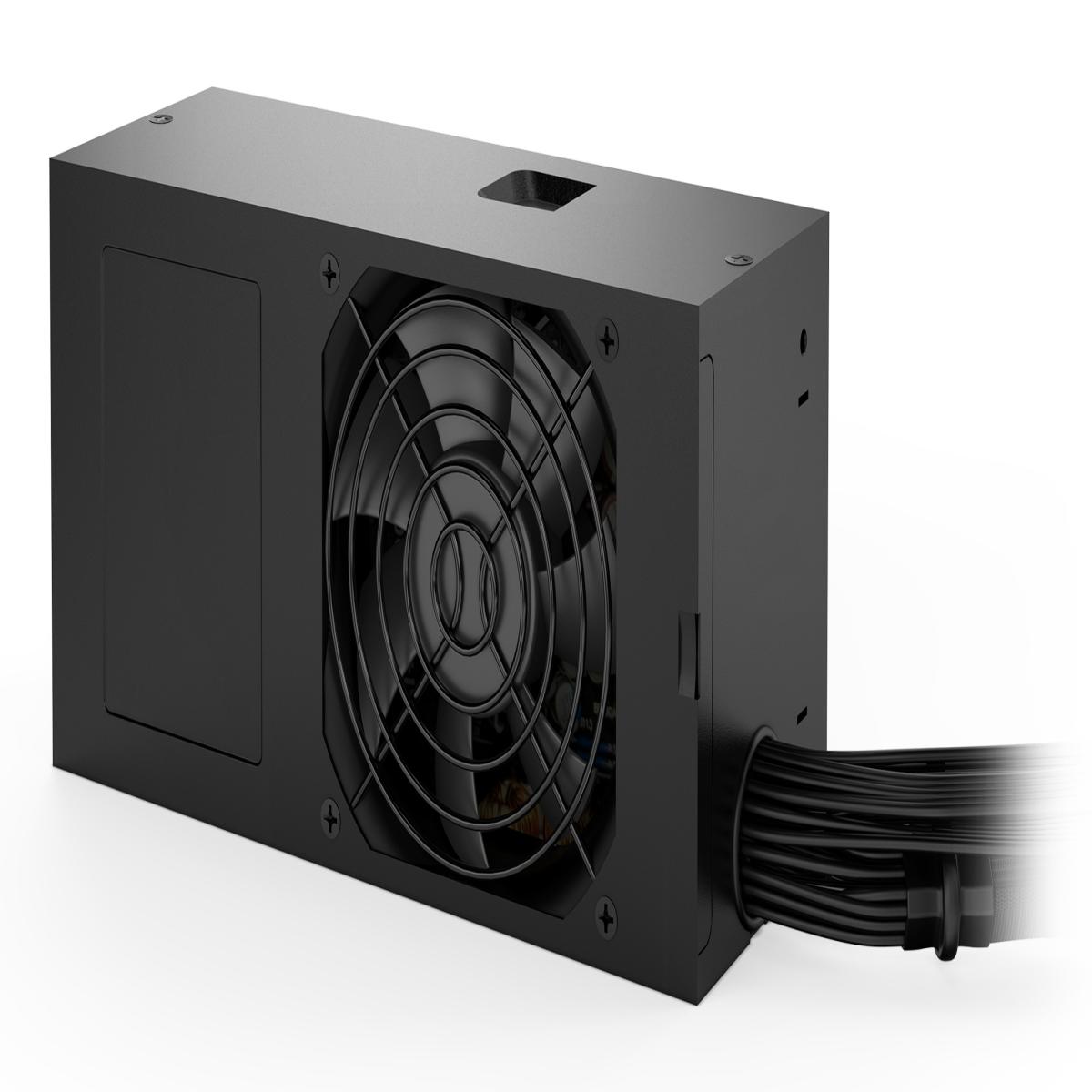

be quiet! TFX POWER 3 300W Bronze power supply unit 20+4 pin ATX Black
£47.01
out of stock
SKU: BN322
TFX Power 3 300W Bronze, the advanced be quiet! compact PSU gives you more for your mini or media PC. It supports the latest standards while providing solid voltages and enough power to support a PCIe graphics card. The combination of quiet operation and reliability make the TFX Power 3 300W Bronze the perfect choice for PCs with TFX form factor.80 PLUS® BRONZE CERTIFICATIONEfficient operationThe 80 PLUS Bronze certification of TFX Power 3 300W Bronze with an efficiency rating of up to 88.3% is convincing evidence of this PSU’s power saving operation.STRONG SINGLE 12V RAILFor maximum powerThe 12V rail design supports high stability as the CPU receives its power through an independent rail. For demanding peripherals like a graphics card, a PCIe connector is included. This makes the TFX Power 3 300W Bronze the ideal PSU for all who strive for enough power to support small systems at low noise.QUIET AND SAFEOptimized for low-noise operationThe temperature-controlled fan ensures a quiet operation and produces little wasted heat. Since TFX Power 3 300W Bronze meets the latest safety requirements, it defends the PC system against overcurrents, over- and undervoltage, short circuit, overloads and comparable failures.
E&OE
- 300 W 100 - 240 V 50 - 60 Hz
- Motherboard power connector: 20+4 pin ATX
- PC TFX 80 PLUS Bronze
- Active 8 cm
- Black
| Weight | 1.24kg |
|---|---|
| Brand | be quiet! |
| Total power | 300 W |
| Number of SATA power connectors | 3 |
| 80 PLUS certification | 80 PLUS Bronze |
| Power supply unit (PSU) form factor | TFX |
| Specifications | Power Total power: 300 W Peak power: 350 W AC input voltage: 100 - 240 V AC input frequency: 50 - 60 Hz Input current: 4/1.5 A Maximum input current (@110V): 4 A Maximum input current (@220V): 1.5 A Power factor: 0.96 Power Factor Correction (PFC) type: Active Combined power (+3.3V): 85 W Combined power (+12V): 300 W Combined power (+5V): 85 W Max output current (+3.3V): 16 A Max output current (+12V1): 25 A Max output current (+5V): 16 A Max output current (-12V): 0.3 A Max output current (+5Vsb): 2.5 A Hold time: 22 ms Efficiency: 86.4% Power protection features: Over current, Over power, Over voltage, Short circuit, Under voltage Ports & interfaces Motherboard power connector: 20+4 pin ATX Motherboard power cable length: 35 cm Number of SATA power connectors: 3 SATA power cable length: 300,450,600 mm Peripheral (Molex) power connectors (4-pin): 2 Peripheral (Molex) power cable length: 300,450 mm PCI Express power connectors (6+2 pin): 1 PCI Express power cable length: 40 cm CPU P4 connector (4-pin): 1 CPU power cable length: 35 cm Floppy drive power connector: 1 Floppy disk drive cable length: 60 cm PCI Express connector: Yes Cabling type: Non-Modular Performance 80 PLUS certification: 80 PLUS Bronze Purpose: PC Power supply unit (PSU) form factor: TFX ATX version: 2.52 EPS version: 2.92 Noise level: 29.1 dB Bearing technology: Rifle Mean time between failures (MTBF): 100000 h Design Product colour: Black Cooling type: Active Fan diameter: 8 cm Number of fans: 1 fan(s) Illumination: No Certificates Compliance certificates: RoHS, WEEE Safety regulation & standards Safety: CE, CB, TÜV, CU Weight & dimensions Width: 85 mm Depth: 175 mm Height: 65 mm Weight: 900 g Packaging data Package width: 159 mm Package depth: 80 mm Package height: 215 mm Package weight: 1.24 kg Package type: Box Technical details Sustainability compliance: Yes Sustainability certificates: ENERGY STAR, ErP Logistics data Shipping (inner) case length: 47.4 cm Shipping (inner) case width: 27.5 cm Shipping (inner) case height: 19.5 cm Products per shipping (inner) case: 6 pc(s) Shipping (inner) case gross weight: 8.25 kg Harmonized System (HS) code: 84733020 |
