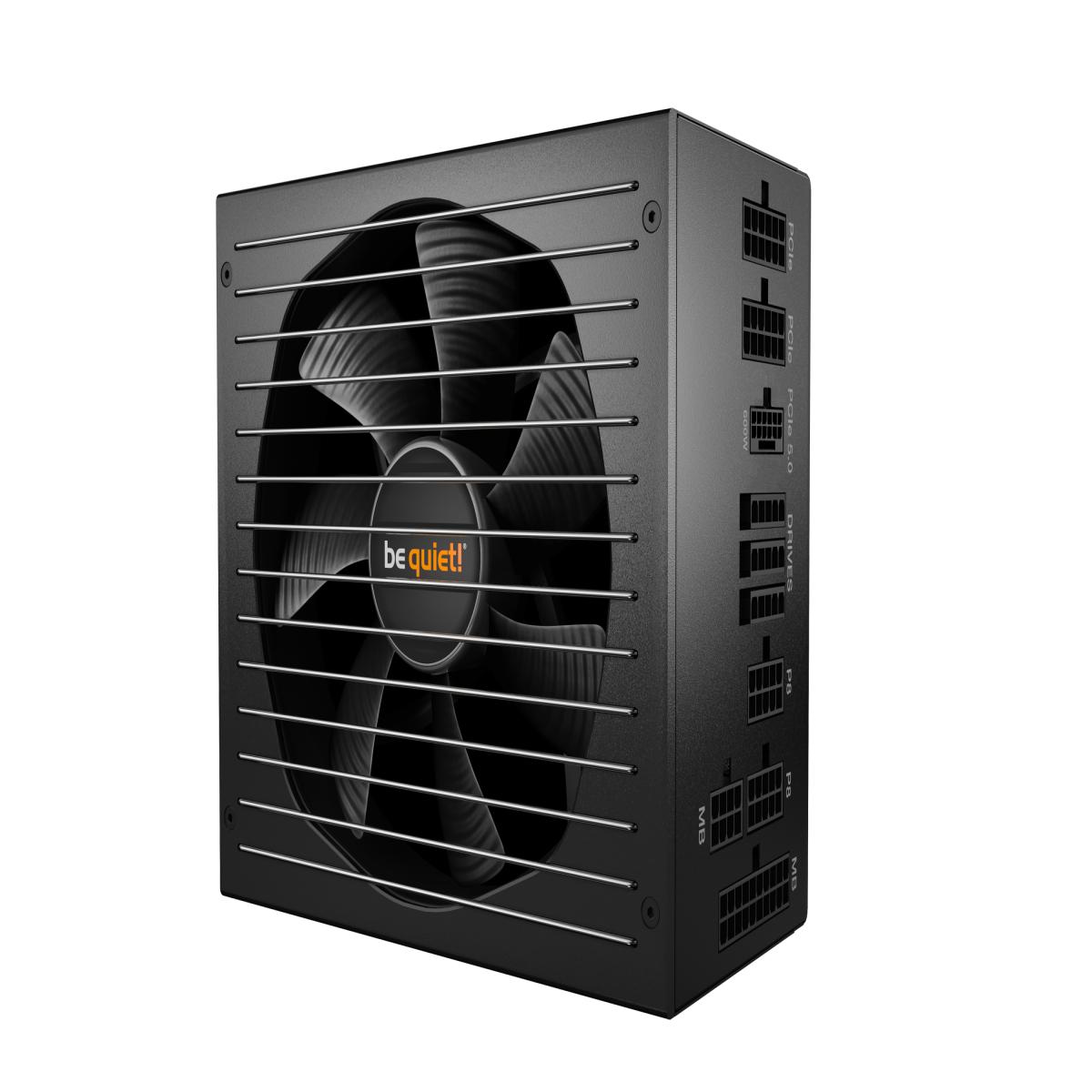

be quiet! Straight Power 12 power supply unit 750 W 20+4 pin ATX ATX Black
£122.06
be quiet! Straight Power 12, 750 W, 110 - 240 V, 820 W, 50/60 Hz, 10/5 A, 130 W
out of stock
SKU: BN336
be quiet! Straight Power 12. Total power: 750 W, AC input voltage: 110 - 240 V, Peak power: 820 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 550,700,850,1000 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Cables included: CPU, SATA
| Weight | 3.47kg |
|---|---|
| Brand | be quiet! |
| Total power | 750 W |
| Number of SATA power connectors | 9 |
| 80 PLUS certification | 80 PLUS Platinum |
| Power supply unit (PSU) form factor | ATX |
| Specifications | Power Total power: 750 W Peak power: 820 W AC input voltage: 110 - 240 V AC input frequency: 50/60 Hz Input current: 10/5 A Power factor: 0.99 Combined power (+3.3V): 130 W Combined power (+12V): 750 W Combined power (+5V): 130 W Max output current (+3.3V): 25 A Max output current (+12V): 62.5 A Max output current (+5V): 25 A Max output current (-12V): 0.3 A Max output current (+5Vsb): 3 A Hold time: 24.8 ms Efficiency: 92.9% Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage Ports & interfaces Motherboard power connector: 20+4 pin ATX Motherboard power cable length: 60 cm Number of SATA power connectors: 9 Number of PATA power connectors: 2 SATA power cable length: 550,700,850,1000 mm Peripheral (Molex) power cable length: 1000,850 mm EPS power connector (8-pin): Yes EPS power connector (4+4 pin): Yes PCI Express power connectors (6+2 pin): 4 PCI Express power connectors (16-pin): 1 PCI Express power cable length: 60 cm CPU power cable length: 70 cm PCI Express connector: Yes Cabling type: Fully-Modular Performance 80 PLUS certification: 80 PLUS Platinum Supported motherboard form factors: ATX, micro ATX, Mini-ATX Purpose: PC Power supply unit (PSU) form factor: ATX ATX version: 3.1 EPS version: 2.92 Noise level: 20.8 dB Bearing technology: FDB Mean time between failures (MTBF): 100000 h Design Product colour: Black Cooling type: Active Fan diameter: 13.5 cm Number of fans: 1 fan(s) Fan speed: 0 - 1800 RPM Illumination: No On/off switch: Yes Operational conditions Operating temperature (T-T): 0 - 40 °C Packaging content Cables included: CPU, SATA Cable tie(s) included: Yes Certificates Compliance certificates: CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE Weight & dimensions Width: 150 mm Depth: 160 mm Height: 86 mm Weight: 1.76 kg Packaging data Package width: 248 mm Package depth: 328 mm Package height: 102 mm Package weight: 3.47 kg Package type: Box Technical details Sustainability compliance: Yes Logistics data Shipping (inner) case length: 65.1 cm Shipping (inner) case width: 28.2 cm Shipping (inner) case height: 34.6 cm Shipping (inner) case net weight: 22.4 kg Products per shipping (inner) case: 6 pc(s) Warranty period: 10 year(s) |
