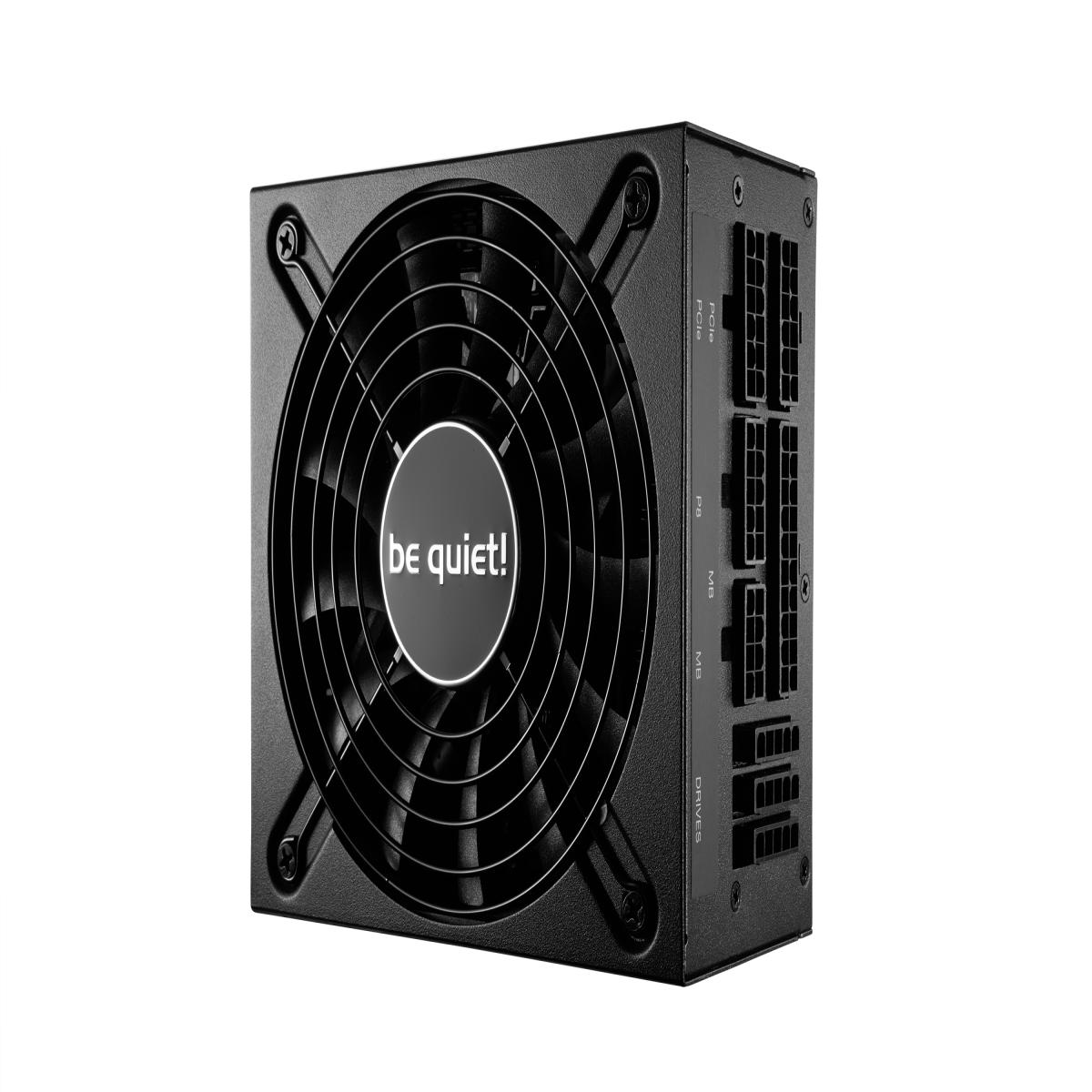

be quiet! SFX L Power power supply unit

£93.04

be quiet! SFX L Power, 600 W, 100 - 240 V, 650 W, 50 - 60 Hz, 10 A, Active

out of stock

SKU: BN239

Compact and Silent Energybe quiet! SFX L Power 600W is especially recommended for mini ITX PCs and compact gaming systems. It performs well beyond the ordinary, with a great combination of quietness, features, reliability and efficiency.POWERFUL, RELIABLE AND STABLEA strong partner for Mini ITX and compact gaming PCsThe SFX L Power supplies CPUs and GPUs with steady and dependable power thanks to a stable 12V-rail, high quality Japanese capacitors and innovative technologies such as LLC, Synchronous Rectifier and DC-to-DC conversion. 4 PCIe connectors to support multi-GPU setups.QUIET OPERATION FOR COMPACT SYSTEMSOptimized for low-noise operationThis PSU is perfect for compact gaming PC or HTPC users who are looking for an SFX PSU that is fitted with a 120mm fan. This model includes a temperature-controlled fan. The SFX L Power was built to be very silent thanks to the fan technology used and it produces little wasted heat.80 PLUS® GOLD CERTIFICATIONVery high operating efficiencySFX L Power 600W is certified 80 PLUS Gold with an efficiency rating of up to 92% – a truly outstanding level for this class of PSU. The most compelling benefit: lower power consumption and consequently lower costs with cooler and quieter operation.MODULAR AND FLAT CABLESHighly compatible and convenientEntirely modular cables are enhanced by premium black flat cables. This simplifies the installation and keeps the system tidy.SUPER VERSATILE INSTALLATIONAdapts to your individual requirementsThis power supply is particularly versatile in deployment thanks to the SFX-to-ATX adapter bracket provided. Not only does it fit into cases with an SFX form factor, but can also be installed in a few simple steps into larger ATX cases.

E&OE

600 W 100 - 240 V 50 - 60 Hz
Motherboard power connector: 20+4 pin ATX
PC SFX 80 PLUS Gold
Active 12 cm
Black

Weight	2.04kg
Brand	be quiet!
Total power	600 W
Number of SATA power connectors	6
80 PLUS certification	80 PLUS Gold
Power supply unit (PSU) form factor	SFX
Specifications	Power Total power: 600 W Peak power: 650 W AC input voltage: 100 - 240 V AC input frequency: 50 - 60 Hz Input current: 10 A Power factor: 0.99 Power Factor Correction (PFC) type: Active Combined power (+3.3V): 110 W Combined power (+12V): 600 W Combined power (+5V): 110 W Combined power (-12V): 3.6 W Combined power (+5Vsb): 15 W Max output current (+3.3V): 22 A Max output current (+12V): 50 A Max output current (+5V): 22 A Max output current (-12V): 0.3 A Max output current (+5Vsb): 3 A Hold time: 16.8 ms Efficiency: 92% Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage Ports & interfaces Motherboard power connector: 20+4 pin ATX Motherboard power cable length: 30 cm Number of SATA power connectors: 6 Number of PATA power connectors: 3 PCI Express power connectors (6+2 pin): 4 PCI Express power cable length: 40 cm CPU power connector (4+4 pin): Yes CPU power cable length: 40 cm PCI Express connector: Yes Cabling type: Fully-Modular Performance 80 PLUS certification: 80 PLUS Gold Supported motherboard form factors: Mini-ITX Purpose: PC Power supply unit (PSU) form factor: SFX ATX version: 2.4 Silent mode: Yes Bearing technology: Sleeve Design Product colour: Black Cooling type: Active Fan diameter: 12 cm Number of fans: 1 fan(s) Illumination: No On/off switch: Yes Certificates Compliance certificates: RoHS Certification: CE, CB, TÜV, FCC, cTUVus, RCM Weight & dimensions Width: 125 mm Depth: 130 mm Height: 64 mm Weight: 1.16 kg Packaging data Manual: Yes Package width: 205 mm Package depth: 220 mm Package height: 80 mm Package weight: 2.04 kg Package type: Box Technical details Sustainability certificates: ENERGY STAR Logistics data Master (outer) case width: 430 mm Master (outer) case length: 430 mm Master (outer) case height: 240 mm Master (outer) case gross weight: 21.5 kg Harmonized System (HS) code: 84733020 Products per master (outer) case: 10 pc(s) Other features Screws included: Yes Cable ties included: Yes Noise level (silent mode, <30%): 9.9 dB Noise level (quiet mode, 50%): 14.5 dB Noise level (full-load mode, 100%): 28.7 dB
