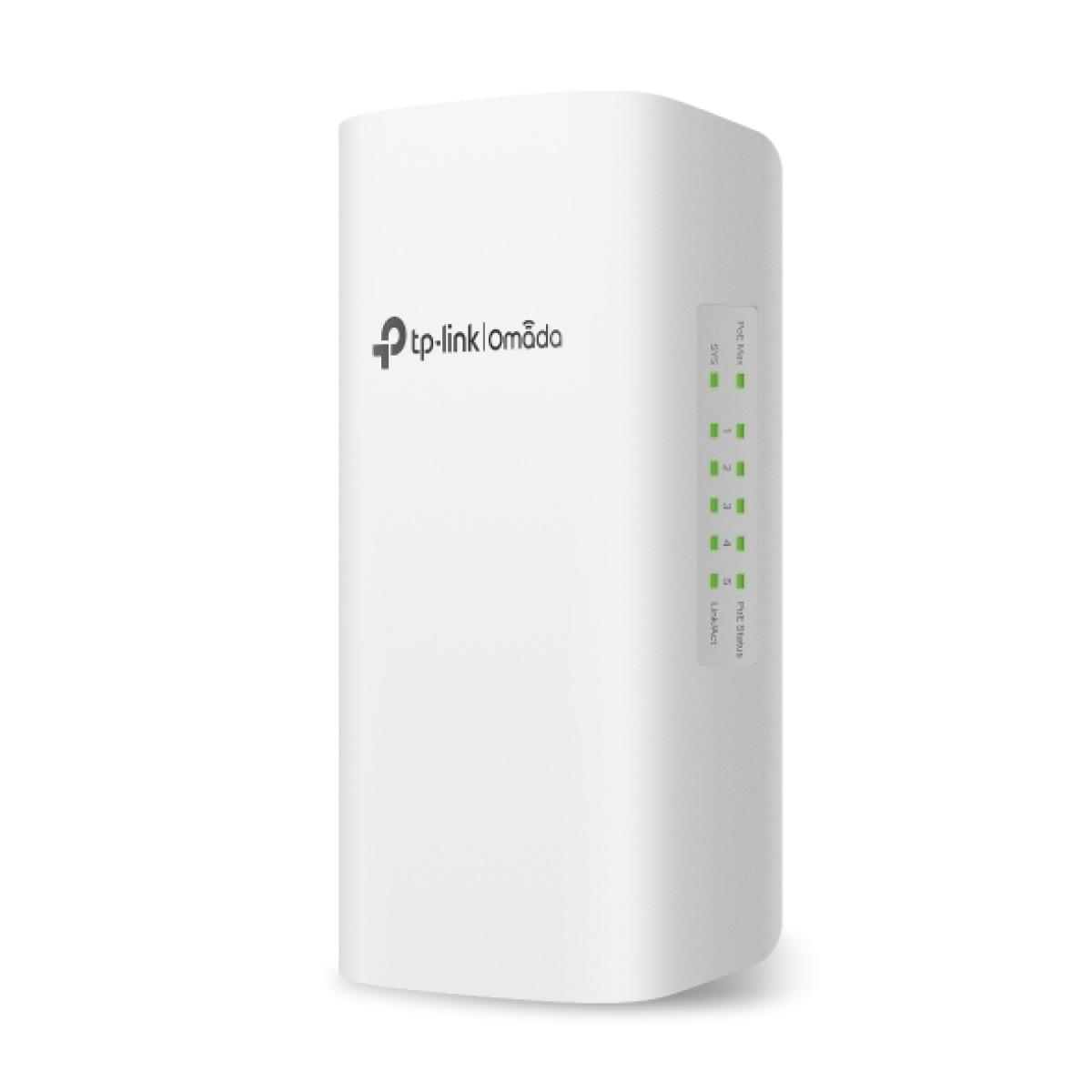

TP-Link Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out
£89.19
TP-Link Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out, Managed, L2/L2+, 10G Ethernet (100/1000/10000), Power over Ethernet (PoE), Desktop
out of stock
SKU: SG2005P-PD
TP-Link Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 4. MAC address table: 8000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.11d, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Form factor: Desktop
| Weight | 10.90kg |
|---|---|
| Brand | TP-Link |
| Specifications | Management features Switch type: Managed Switch layer: L2/L2+ Quality of Service (QoS) support: Yes Web-based management: Yes Cloud-managed: Yes ARP inspection: Yes MIB support: Y Ports & interfaces Basic switching RJ-45 Ethernet ports quantity: 4 Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000) 10G Ethernet (copper) ports quantity: 4 Network Networking standards: IEEE 802.11d, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x 10G support: Yes Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 100BASE-T Cable types supported: Cat5, Cat5e Port mirroring: Yes Flow control support: Yes Link aggregation: Yes Spanning tree protocol: Yes IPv4 routes: 32 IPv6 routes: 32 VLAN support: Yes Virtual LAN features: Voice VLAN Number of VLANs: 4000 Data transmission Switching capacity: 10 Gbit/s MAC address table: 8000 entries Jumbo frames support: Yes Jumbo frames: 9 Packet forwarding rate (1 Gbps): 7440 pps Packet buffer memory: 4.1 MB Security DHCP features: DHCP relay, DHCP server Access Control List (ACL): Yes Access Control List (ACL) IPv4 entries: 32 IGMP snooping: Yes Security algorithms: 802.1x RADIUS MAC address filtering: Yes IP-MAC-Port binding: Yes Authentication: MAC-based authentication, Port-based authentication Password protection: Yes Multicast features Multicast support: Yes Multicast MAC address table: 8000 entries IPv4 multicast entries: 511 IPv6 multicast entries: 511 Protocols IPv4 & IPv6 features: Dual stack IPv4/IPv6, IPv4/IPv6 access-control list (ACL), IPv6 tracert Design Rack mounting: No Stackable: No Form factor: Desktop Product colour: White LED indicators: Yes Power Power source: DC/PoE Power supply included: Yes Power consumption (typical): 71.5 W Power over Ethernet (PoE) Power over Ethernet (PoE): Yes Power over Ethernet (PoE) power per port: 64 W Operational conditions Operating temperature (T-T): -40 - 60 °C Storage temperature (T-T): -40 - 70 °C Operating relative humidity (H-H): 10 - 90% Storage relative humidity (H-H): 5 - 90% Heat dissipation: 243.99 BTU/h Weight & dimensions Width: 170 mm Depth: 100 mm Height: 38.5 mm Sustainability Sustainability compliance: Yes Certificates Compliance certificates: CE, RoHS |
