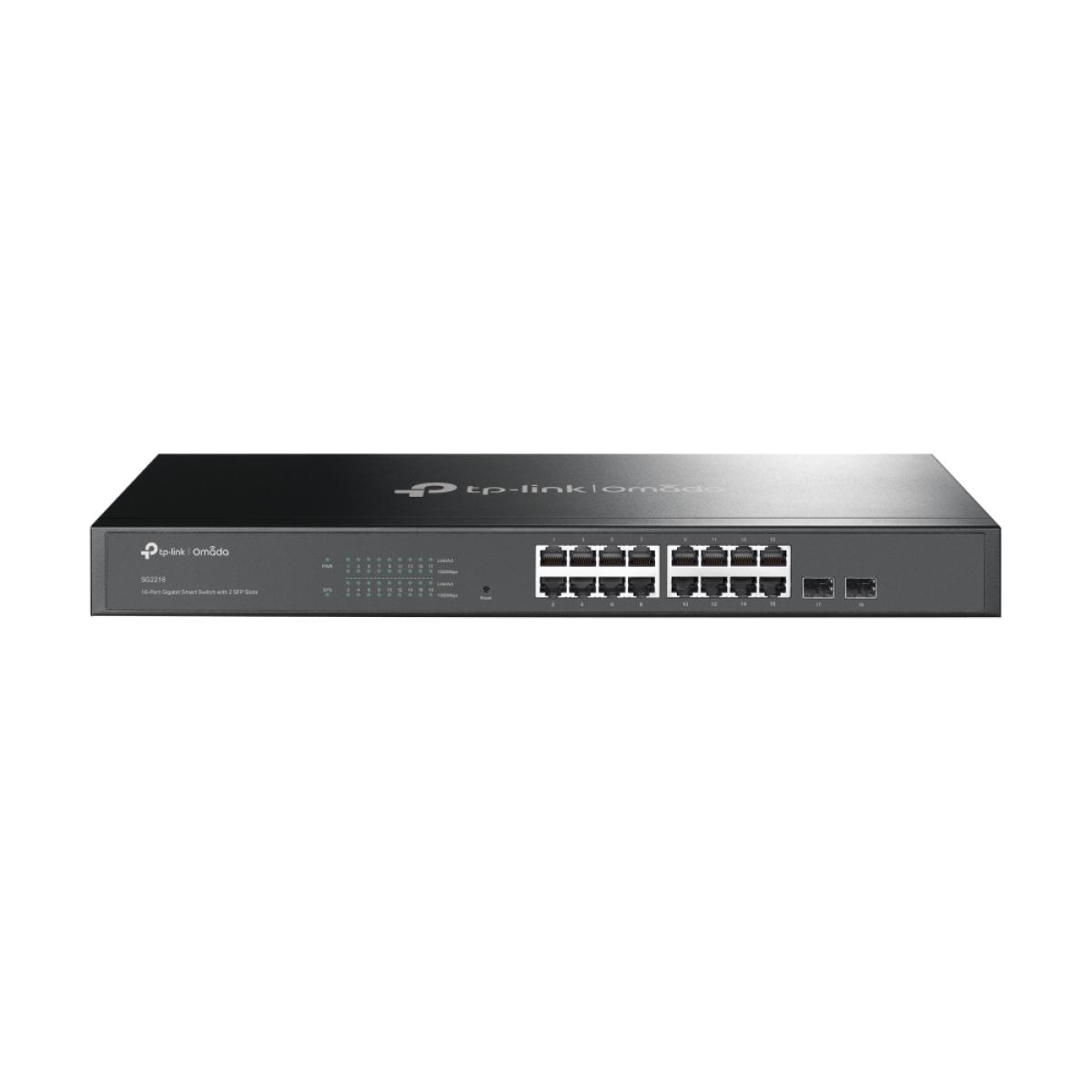

TP-Link Omada 16-Port Gigabit Smart Switch with 2 SFP Slots
£133.31
TP-Link Omada 16-Port Gigabit Smart Switch with 2 SFP Slots, Managed, L2/L2+, Gigabit Ethernet (10/100/1000), Rack mounting, 1U
out of stock
SKU: SG2218
TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
E&OE
- Managed L2/L2+ Web-based management SNMPv1/v2c/v3, SNTP
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 16
- MAC address table: 8000 entries Switching capacity: 36 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting
- AC Power supply included
| Weight | 0.06kg |
|---|---|
| Brand | TP-Link |
| Specifications | Management features Switch type: Managed Switch layer: L2/L2+ Quality of Service (QoS) support: Yes Web-based management: Yes Cloud-managed: Yes ARP inspection: Yes System event log: Yes MIB support: Yes Ports & interfaces Basic switching RJ-45 Ethernet ports quantity: 16 Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000) Gigabit Ethernet (copper) ports quantity: 16 SFP module slots quantity: 2 Network Networking standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z 10G support: No Port mirroring: Yes Flow control support: Yes Link aggregation: Yes Broadcast storm control: Yes Rate limiting: Yes Spanning tree protocol: Yes Ethernet LAN data rates: 10,100,1000 Mbit/s VLAN support: Yes Virtual LAN features: Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN Number of VLANs: 4000 Data transmission Switching capacity: 36 Gbit/s Forwarding rate: 26.8 Mpps MAC address table: 8000 entries Store-and-forward: Yes Static route: Yes Number of static routes: 32 Number of IP interfaces: 16 Jumbo frames support: Yes Jumbo frames: 9000 Packet buffer memory: 4.1 MB Security DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping Access Control List (ACL): Yes IGMP snooping: Yes SSH/SSL support: Yes Loop protection: Yes BPDU filtering/protection: Yes Multicast features Multicast support: Yes Multicast Listener Discovery (MLD) snooping: Y Protocols Management protocols: SNMPv1/v2c/v3, SNTP GARP VLAN Registration Protocol (GVRP): Yes Design Rack mounting: Yes Form factor: 1U Product colour: Black LED indicators: Yes Performance Fanless: Yes Power Power source: AC Power supply included: Yes AC input voltage: 100 - 240 V AC input frequency: 50/60 Hz Power consumption (max): 12.3 W Power over Ethernet (PoE) Power over Ethernet (PoE): No Operational conditions Operating temperature (T-T): 0 - 40 °C Storage temperature (T-T): -40 - 70 °C Operating relative humidity (H-H): 10 - 90% Storage relative humidity (H-H): 5 - 90% Heat dissipation: 41.97 BTU/h Weight & dimensions Width: 440 mm Depth: 180 mm Height: 44 mm Packaging content Cables included: AC, LAN (RJ-45) Quick start guide: Yes Certificates Certification: CE, FCC, RoHS |
