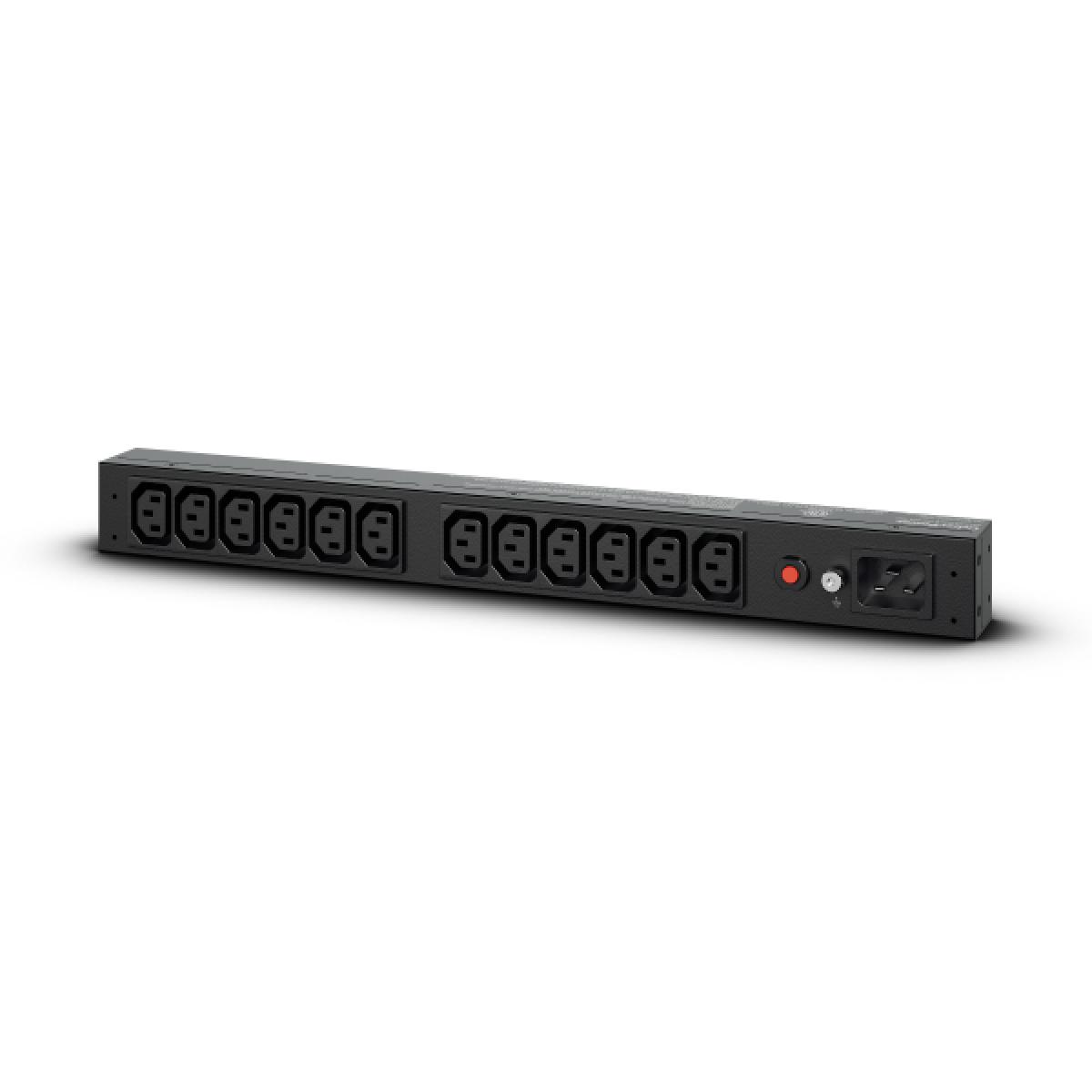

CyberPower PDU20BHVIEC12R power distribution unit (PDU) 12 AC outlet(s) 1U Black

£93.1

CyberPower PDU20BHVIEC12R, Basic, 1U, Single-phase, Horizontal/Vertical, Steel, Black

out of stock

SKU: PDU20BHVIEC12R

The CyberPower 12-outlet (12 Rear) rack mount basic power distribution unit (PDU20BHVIEC12R) provides 208V/230V 20A output. It distributes power to 12 IEC-320 C13 receptacles from a single IEC-320 C20 plug, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.- 12 IEC-320 C13 output receptacles- Single IEC-320 C20 plug- 20-amp electrical capacity with circuit breaker- 208/230V - 50/60Hz- 1U rack mount- 10-ft. power cord

E&OE

Single-phase Basic 1U Black
12 AC outlet(s) C13 coupler
Circuit breaker

Weight	15.00kg
Brand	CyberPower
Specifications	Design PDU types: Basic Type: Single-phase Rack capacity: 1U Mounting: Horizontal/Vertical Housing material: Steel Product colour: Black Ports & interfaces AC outlets quantity: 12 AC outlet(s) Power plug: C20 coupler AC outlet types: C13 coupler Features Cable length: 3.05 m Power Nominal input voltage: 200 - 240 V AC input frequency: 50 / 60 Hz Maximum current: 16 A Nominal output voltage: 200 - 240 V Power protection features: Overload Surge protection: Yes Circuit breaker: Yes Certificates Compliance certificates: RoHS Certification: UL60950_1 ETL, CSA C22.2 Sustainability Sustainability compliance: Yes Operational conditions Operating temperature (T-T): 0 - 35 °C Storage temperature (T-T): -15 - 45 °C Operating relative humidity (H-H): 0 - 95% Storage relative humidity (H-H): 0 - 95% Operating altitude: 0 - 3000 m Non-operating altitude: 0 - 15000 m Operating temperature (T-T): 32 - 95 °F Weight & dimensions Width: 445 mm Depth: 38.1 mm Height: 44.5 mm Weight: 900 g Weight (imperial): 0.907 kg (2 lbs) Dimensions (W x D x H) (imperial): 444.5 x 38.1 x 44.5 mm (17.5 x 1.5 x 1.75") Packaging content Packaging content: PDU20BHVIEC12R, User's Manual, Product Registration Card, Cord Retention Tray, Mounting Brackets, Cable Ties, Screw Kit Packaging data Package weight: 15 kg Package width: 530 mm Package depth: 330 mm Package height: 233 mm Logistics data Warranty period: 2 year(s)
