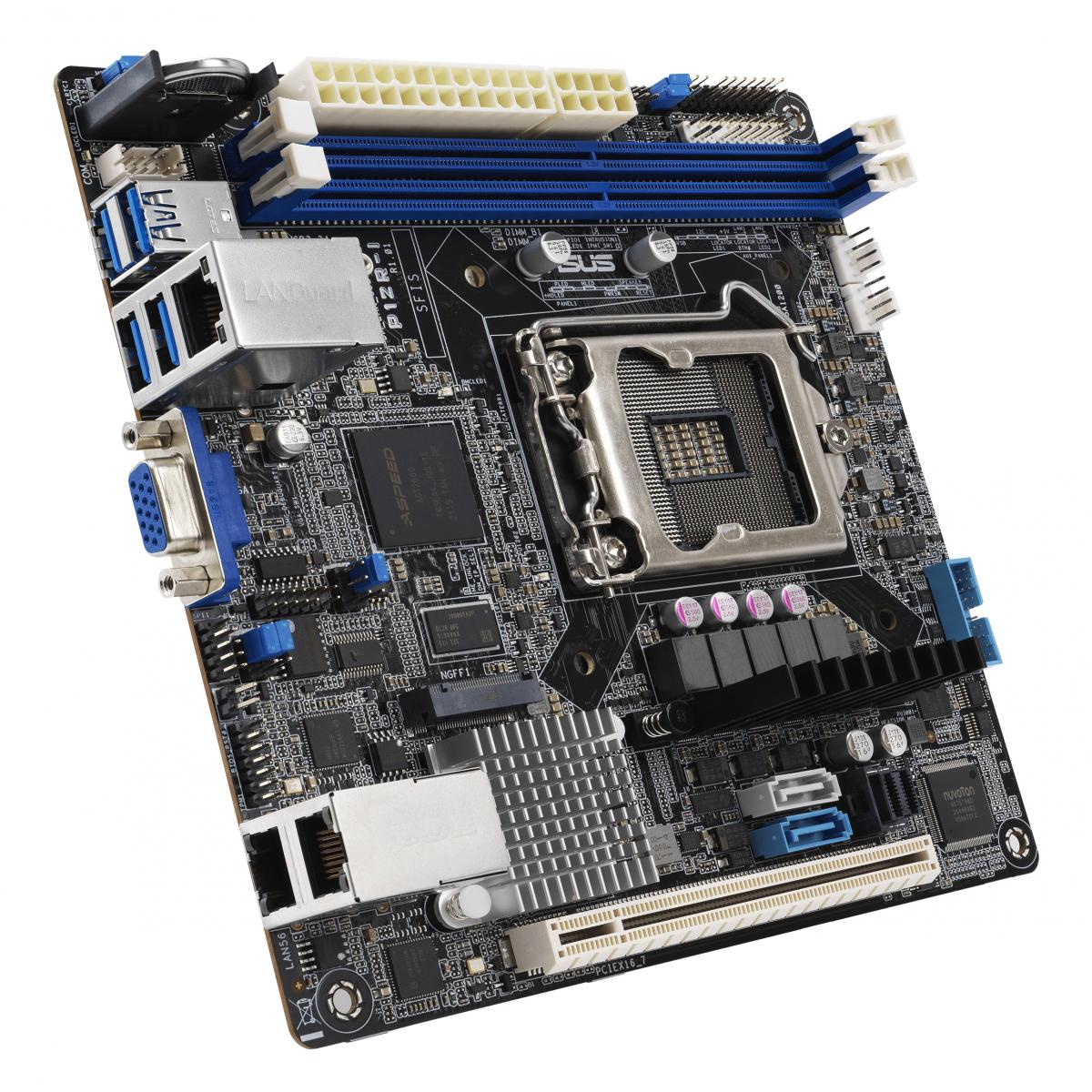

ASUS P12R-I/ASMB10 Intel C252 LGA 1200 (Socket H5) ATX
£252.11
ASUS P12R-I/ASMB10, Intel, LGA 1200 (Socket H5), Intel® Pentium®, Intel Xeon E, DDR4-SDRAM, 64 GB, DIMM
out of stock
SKU: 16-90SB0A70-M0UAY0
ASUS P12R-I/ASMB10. Processor manufacturer: Intel, Processor socket: LGA 1200 (Socket H5), Compatible processor series: Intel® Pentium®, Intel Xeon E. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III. Graphics card family: ASPEED, Graphics card: AST2600, On-board graphics card memory: 64 MB. LAN controller: Intel® I210-AT
PCI Express (PCIe) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS P12R-I server motherboards are PCIe 4.0 ready to support a diverse array of graphics, storage and networking - enabling flexible scalability for demanding or increasing workloads.
Small businesses require reliability and security to support their critical business and customer data needs. Available with up to eight cores and featuring a TDP of up to 95 watts, Intel Xeon E-2300 processors deliver essential server performance, expandability and reliability small businesses to support critical business and customer data needs.
With dual onboard LAN powered by an Intel I210AT Ethernet controller, P12R-I server motherboards provide business-grade connectivity and support high-density, high-bandwidth, low-latency access-layer networks to ensure faster transfers of large-size files used in data-intensive applications.
ASUS ASMB10-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish API.
Intel Xeon E-2300 LGA 1200 Rack Optimized Mini ITX compact form factor increases density , plus dual 1G LAN, M.2 unleash independent I/O for OS drive, six SATA, one PCIe 4.0 slots, four USB 3.2 Gen 1
- Ideal for remote office/branch office (ROBO) use and everyday business environments
- Powered by eight-core Intel Xeon E-2300-series processor with support for up to 95 W TDP
- Flexible expandability with six native SATA HDDs and 1 PCI Express Gen4 slot
- Dual Intel I210AT Gigabit Ethernet with teaming support
- One M.2 support to 2280 PCIe Gen4 x4 Link for faster OS booting
- Onboard ASUS ASMB10-iKVM with ASPEED AST2600 controller for out-of-band management
PCIe 4.0 Ready
PCI Express (PCIe) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS P12R-I server motherboards are PCIe 4.0 ready to support a diverse array of graphics, storage and networking - enabling flexible scalability for demanding or increasing workloads.
Intel Xeon E-2300 processors
Small businesses require reliability and security to support their critical business and customer data needs. Available with up to eight cores and featuring a TDP of up to 95 watts, Intel Xeon E-2300 processors deliver essential server performance, expandability and reliability small businesses to support critical business and customer data needs.
Dual Ethernet bandwidth
With dual onboard LAN powered by an Intel I210AT Ethernet controller, P12R-I server motherboards provide business-grade connectivity and support high-density, high-bandwidth, low-latency access-layer networks to ensure faster transfers of large-size files used in data-intensive applications.
ASUS ASMB10-iKVM
ASUS ASMB10-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish API.
| Weight | 1.10kg |
|---|---|
| Processor socket | LGA 1200 (Socket H5) |
| Motherboard form factor | ATX |
| Supported memory types | DDR4-SDRAM |
| Motherboard chipset | Intel C252 |
| Brand | ASUS |
